VRL Merchandisers
Load Limit for VRL
Merchandisers
STOCKING
Product should NOT be placed in case until merchandiser is at proper operating temperature.
The VRL merchandisers must remain in operation for at least 24 hours before product may be
loaded into case cabinet. Proper rotation of product during stocking is necessary to prevent
product loss. Always bring the oldest product to the front and set the newest to the back.
Air exhAust And return grille must remAin open And free of obstruction At All times.
Do not allow product, packages, signs, etc. to block air exhaust or return grille. Do not use
non-approved shelving, baskets, display racks, or any accessory that could hamper air curtain
performance.
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF -
K
SHEET 3 OF 12
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R

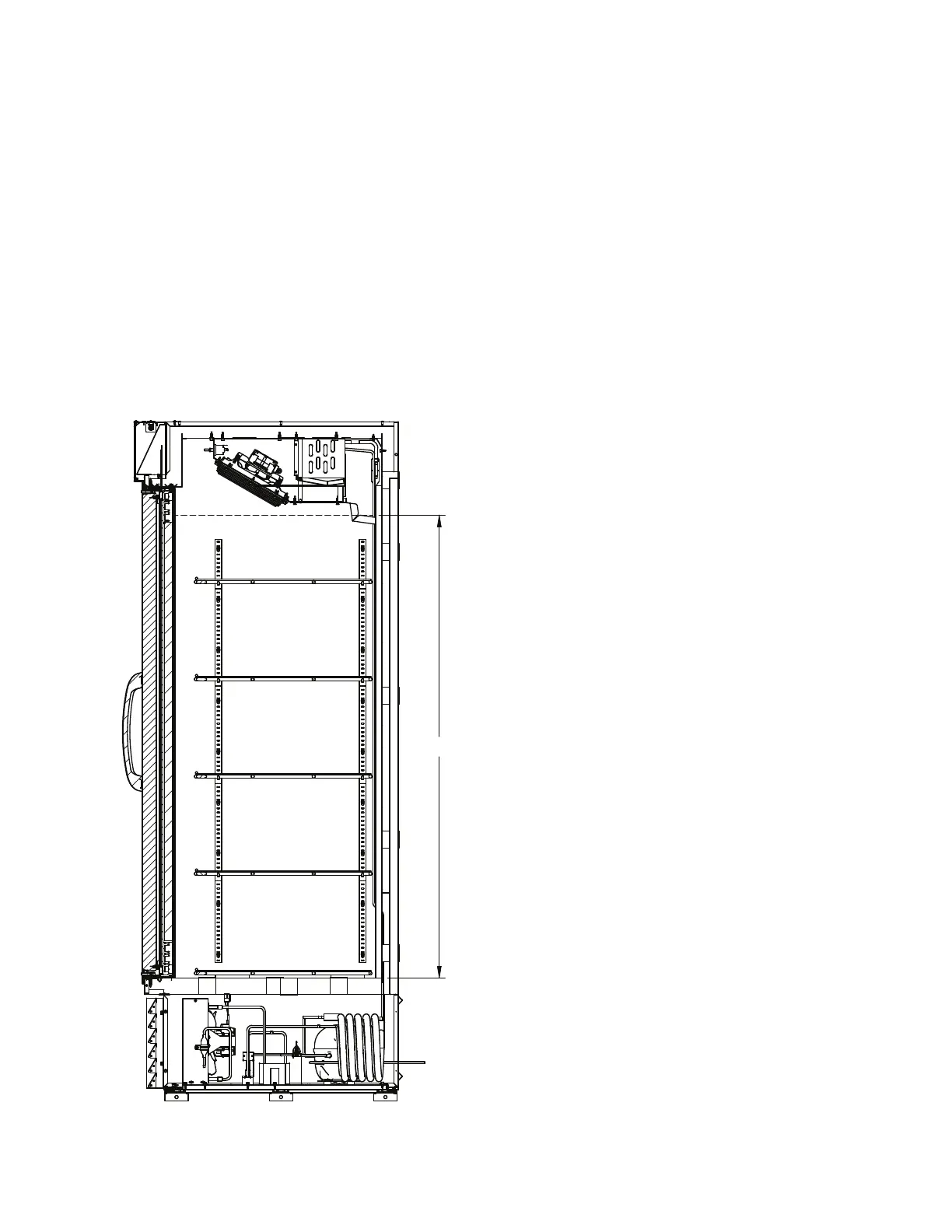

LOAD LIMIT LINE
SECTION A-A
54.75
LOAD LIMITS
Product must be within designated load limit
to ensure proper refrigeration and air curtain
performance.
do not violAte the loAd limit lines of vrl
cAses. product will block the cold Air
flow.
