Hussmann microSC VRL - Page 14

PN_3155541_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
14 ElEctrIcal / rEfrIgEratIon / controllEr
GDF 3.0 SHEET SIZE D
SHEET 12 OF 16
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
B

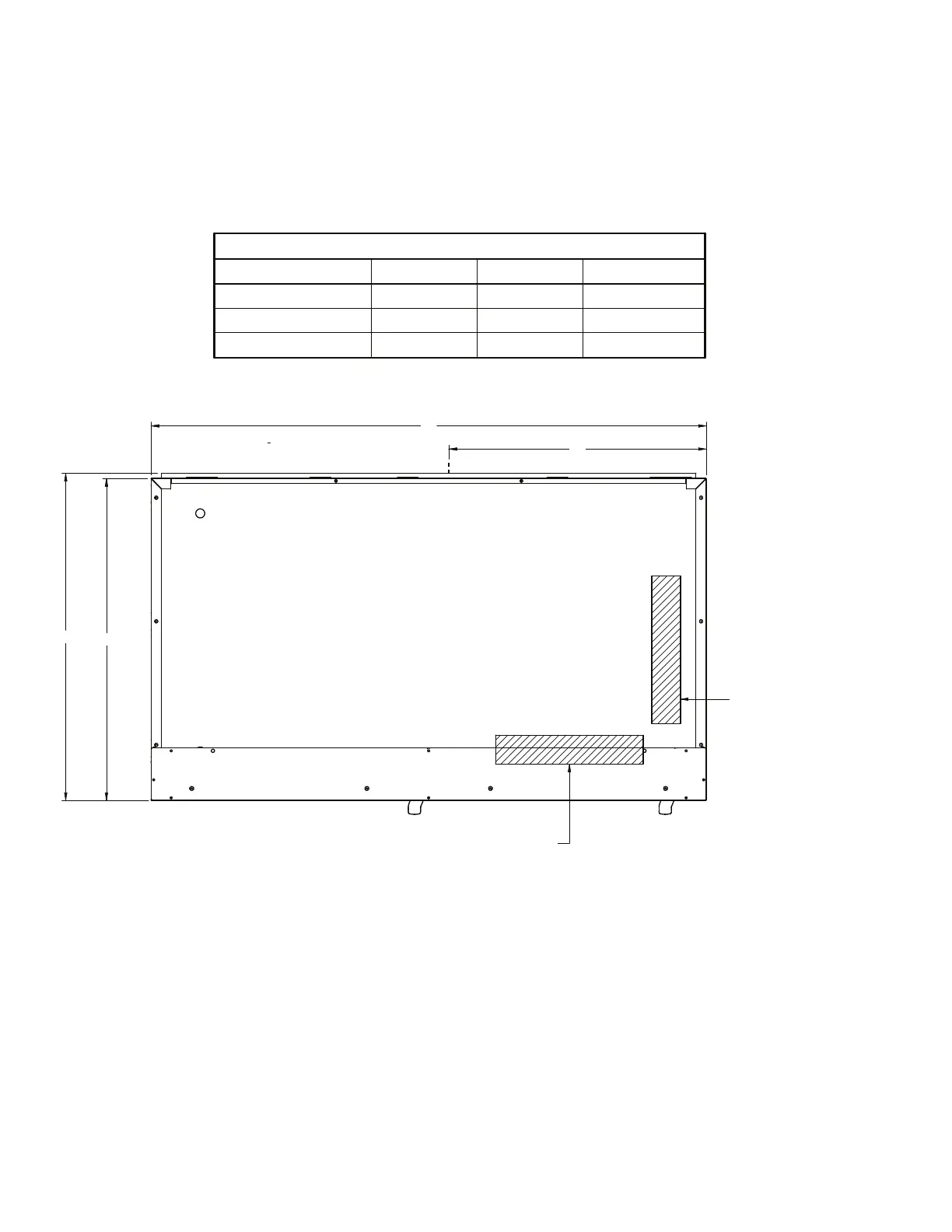

VRLB1A CASES GENERAL DIMENSIONS
General dimensions 1 DOOR 2 DOOR 3 DOOR
Case Lenght (A) 29 5/8 (752) 54 (1372) 78 1/4 (1988)
Power cord outlet (B) 14 3/4 (375) 2 3/4 (70) 2 3/4 (70)
Electrical box (C) RIGHT RIGHT CENTER
A
ELECTRICAL BOX 2 & 3 DOORS
LOCATION MARKED IN TABLE
AS CENTER OR RIGHT
31.75
31.26
VRL1B1A ELECTRICAL BOX
POSITON
GDF 3.0 SHEET SIZE D
SHEET 12 OF 16
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
B
VRLB1A CASES GENERAL DIMENSIONS
General dimensions 1 DOOR 2 DOOR 3 DOOR
Case Lenght (A) 29 5/8 (752) 54 (1372) 78 1/4 (1988)
Power cord outlet (B) 14 3/4 (375) 2 3/4 (70) 2 3/4 (70)
Electrical box (C) RIGHT RIGHT CENTER
A
ELECTRICAL BOX 2 & 3 DOORS
LOCATION MARKED IN TABLE
AS CENTER OR RIGHT
31.75
31.26
VRL1B1A ELECTRICAL BOX
POSITON
ELECTRICAL BOX & POWER CORD LOCATION
