16 ElEctrIcal / rEfrIgEratIon / controllEr

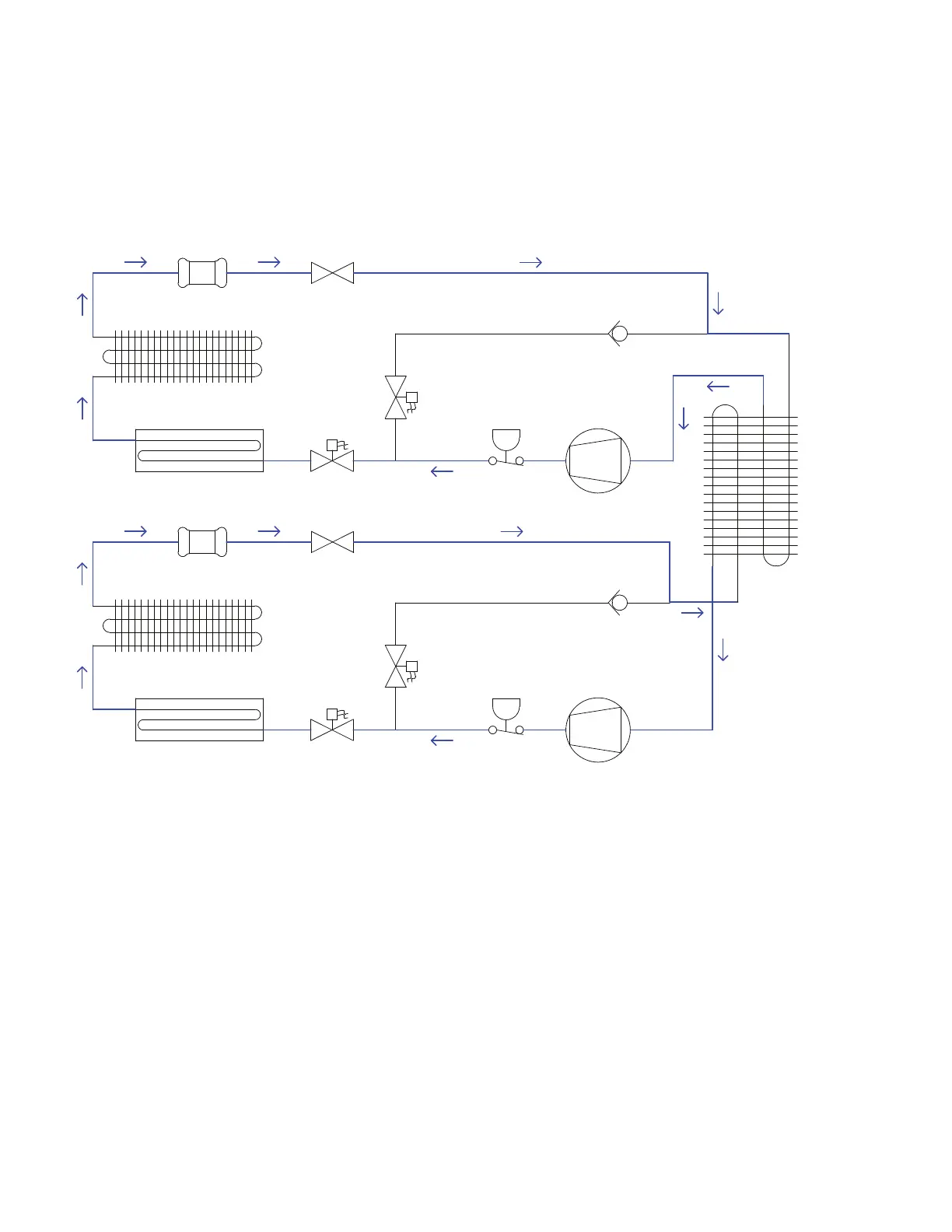

Figure B. System Diagram- Refrigeration Mode
(This diagram is applicable for 3-door models)
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL- Error: No reference
4. REF -
K
SHEET 3 OF 4
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
FILTER
DRIER
CAP TUBE
CHECK
VALVE
EVAPORATOR
CONDENSER
CONDENSATE PAN
HGSV
RSV
COMPRESSOR
PRESSURE
SWITCH
FILTER DRIER
CAP TUBE
CHECK
VALVE
CONDENSER
CONDENSATE PAN
HGSV
RSV
COMPRESSOR
PRESSURE
SWITCH
REFRIGERATION
