18 ElEctrIcal / rEfrIgEratIon / controllEr
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL- Error: No reference
4. REF -
K
SHEET 4 OF 4
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
DEFROST
FILTER
DRIER
CAP TUBE
CHECK
VALVE
EVAPORATOR
CONDENSER
CONDENSATE PAN
HGSV
RSV
COMPRESSOR
PRESSURE
SWITCH
FILTER DRIER
CAP TUBE
CHECK
VALVE
CONDENSER
CONDENSATE PAN
HGSV
RSV
COMPRESSOR
PRESSURE
SWITCH

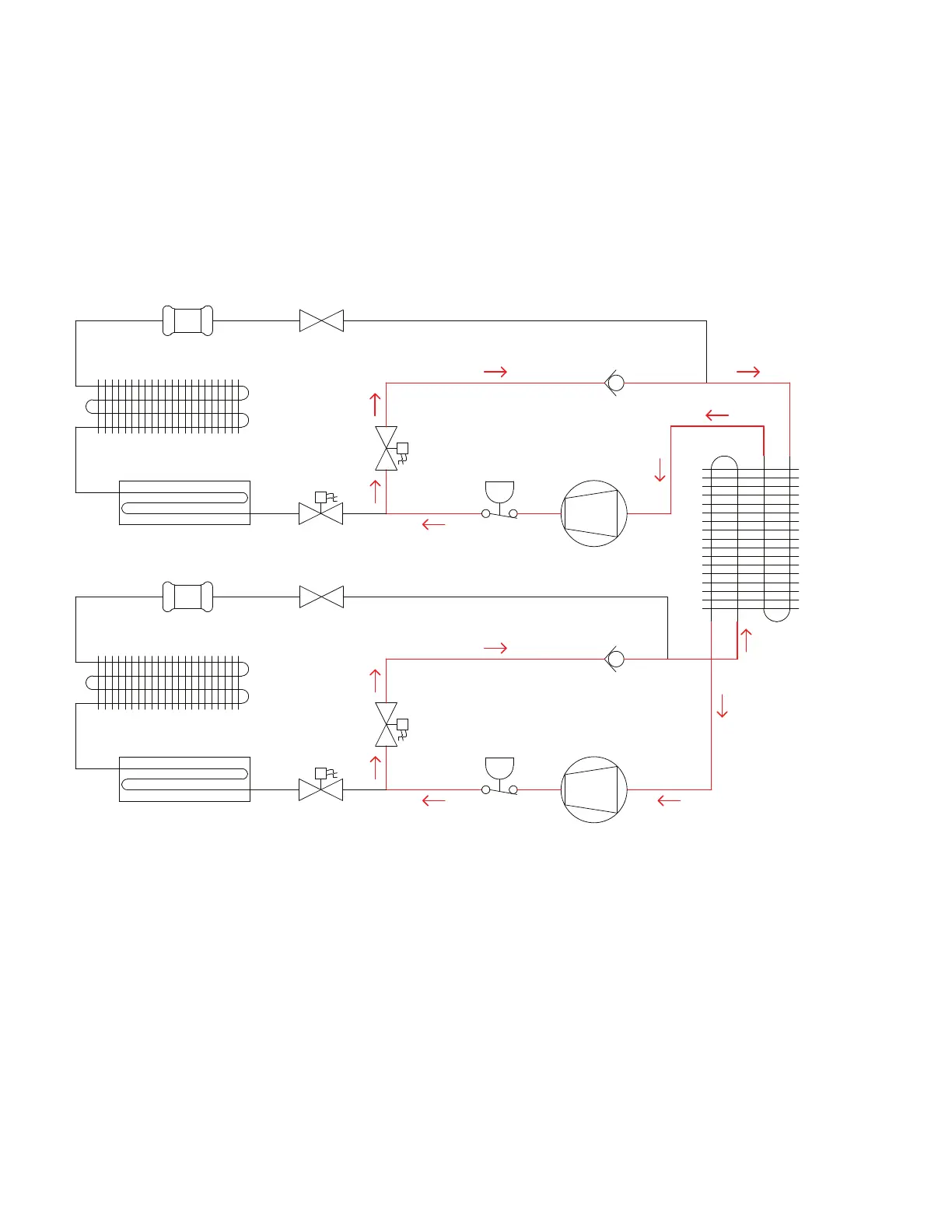

Figure D. System Diagram - Defrost Mode - Hot Gas Bypass
(This diagram is applicable for 3-door case models)
