Hussmann microSC VRL - Page 25

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
VRL Merchandisers
PN_3155541_C 25

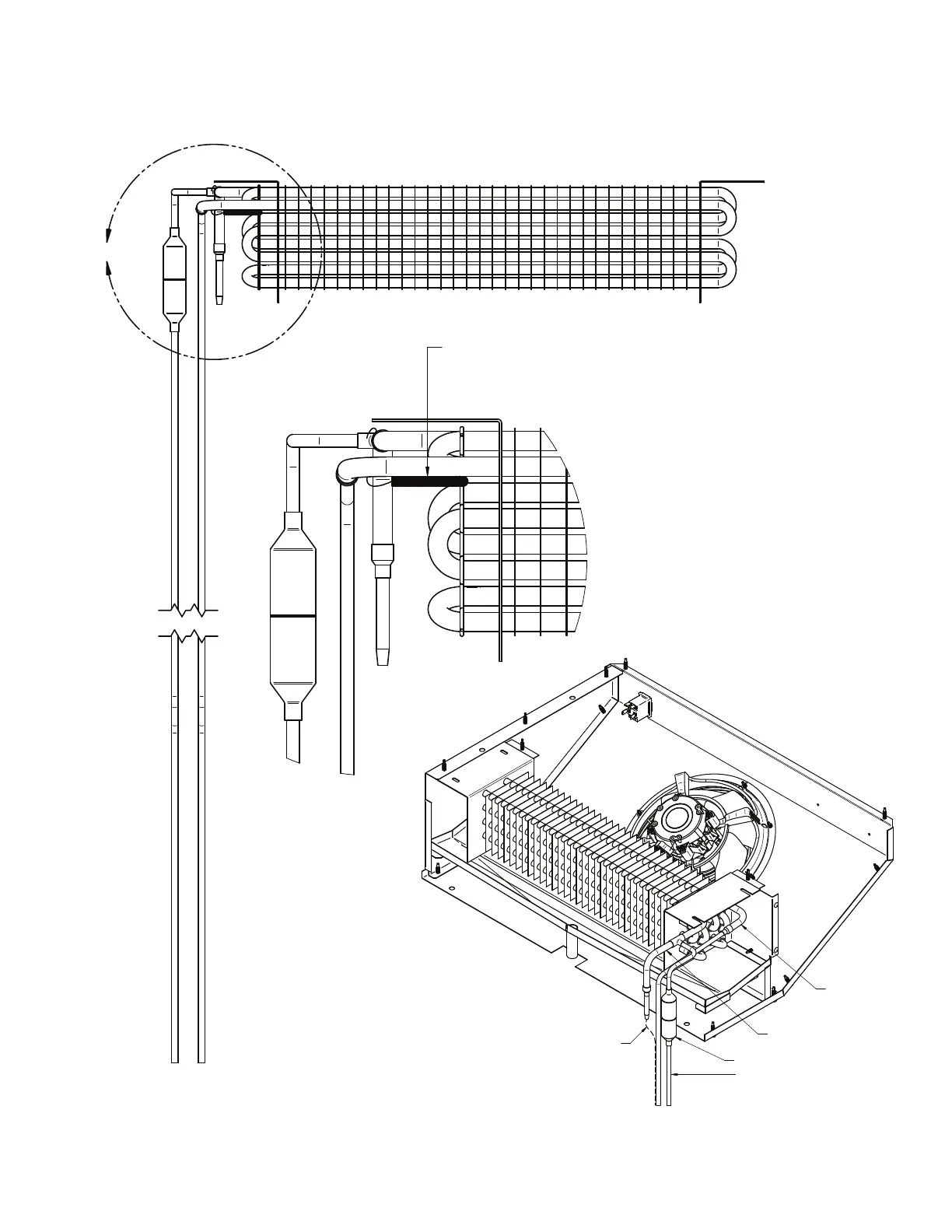

DEFROST SENSOR LOCATION
C
DETAIL C
DEFROST SENSOR IS LOCATED
BELOW EVAPORATOR OUTLET TUBE
(APPLIES FOR VRL1B1A, VRL2B1A, VRL3B1A)
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF -
K
SHEET 8 OF 12
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
HOT GAS LINE
EVAP INLET
EVAP OUTLET
CAPILLARY TUBE
CHECK VALVE
