SELF CONTAINED (LOCATION)
Product should always be maintained at proper temperature. This means that from the time the
product is received, through storage, preparation and display, the temperature of the product
must be controlled to maximize the life of the product.
Be sure to position self contained merchandisers properly.
VRL models have vented base panels to allow air circulation through the condensing unit.
Allow for a minimum 36 in. clearance in the front. Blocking or restricting air flow will adversely
affect performance and may damage the refrigeration system.
36 in.
36 in.
36 in.
Air
Exhaust
Air
Exhaust
Front
Rear
Zero Clearance
at Sides and Rear
36 in. Clearance
at Front
(Plan View)
Front
Rear
Zero Clearance
at Sides and Rear
36 in. Clearance
at Front
(Plan View)
Front
Rear
Zero Clearance
at Sides and Rear
36 in. Clearance
at Front
(Plan View)
Air Exhaust
Air Exhaust
Air Exhaust
Air Intake
Air Intake
FUk YUOUI
36 in.
Air Intake
Front
Rear
(Plan View)

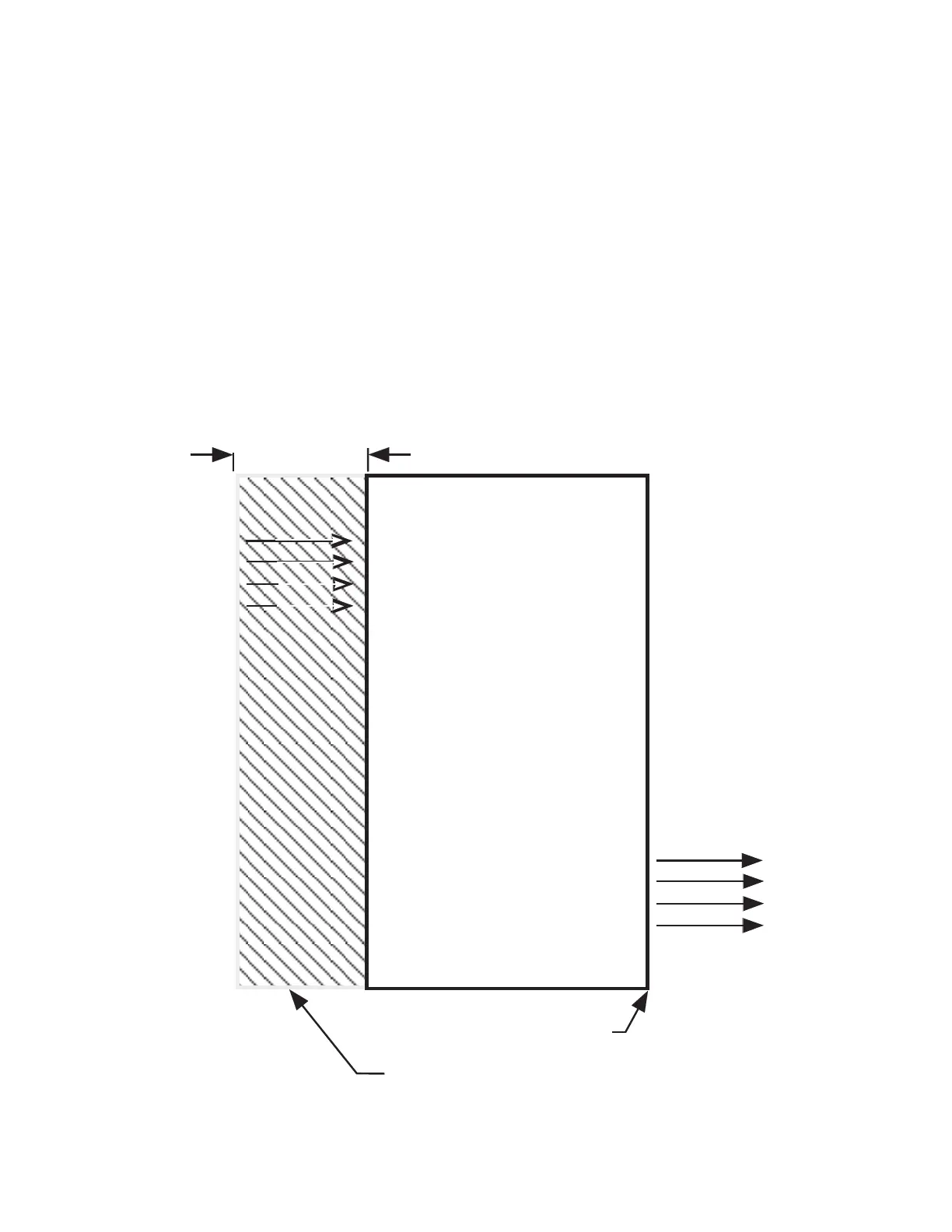

Zero clearance required on sides
1-inch clearance at TOP and REAR
36 in. Clearance at
Front
