Hussmann microSC VRL1B - Page 17

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
VRL Merchandisers
P/N 3034040_H 17
3032520
A
A
DETAIL A
15.00
3.37
SENSOR
AIR DISCHARGE
SENSOR
DEFROST
FIX IN THE
SUCTION TUBE
VRL3B
FIX IN THE WALL

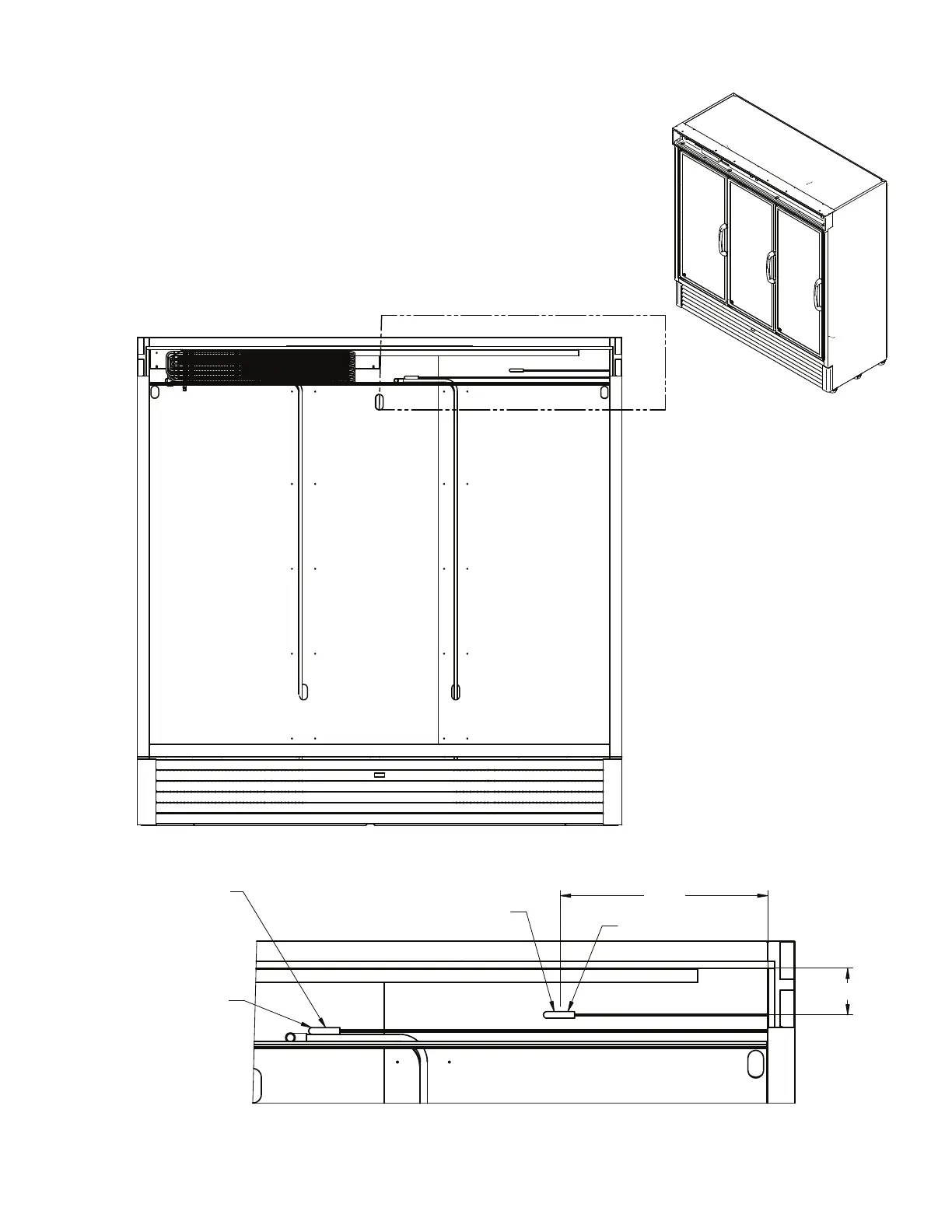

Typical Sensor to Control Conguration
3032520
A
A
DETAIL A
15.00
3.37
SENSOR
AIR DISCHARGE
SENSOR
DEFROST
FIX IN THE
SUCTION TUBE
VRL3B
FIX IN THE WALL
3032520
A
A
DETAIL A
15.00
3.37
SENSOR
AIR DISCHARGE
SENSOR
DEFROST
FIX IN THE
SUCTION TUBE
VRL3B
FIX IN THE WALL
SENSOR
DEFROST
FIX IN THE
SUCTION TUBE
SENSOR AIR
DISCHARGE
FIX IN THE WALL
15.00
DETAIL A
3.37
