VRL Merchandisers
P/N 3034040_H 29

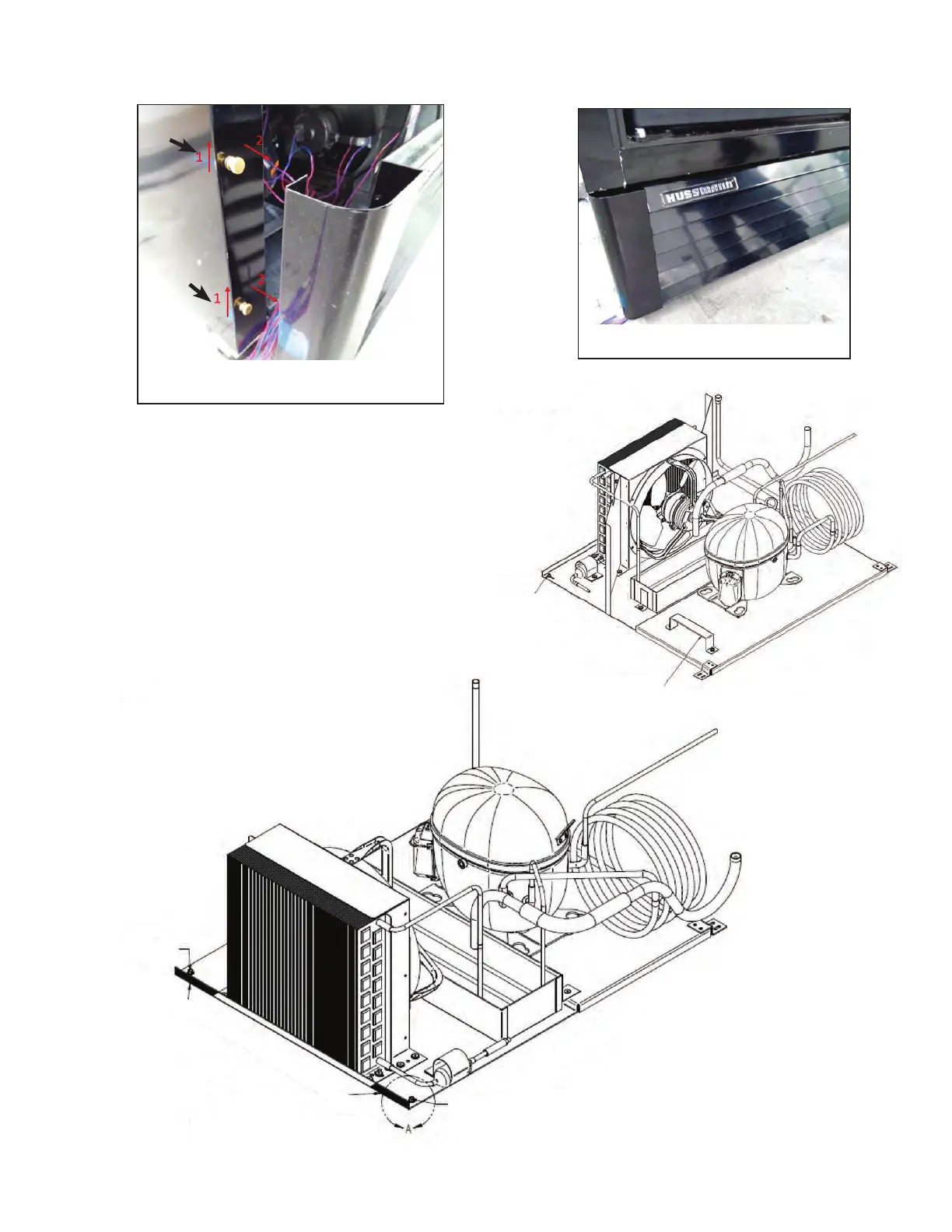

Lift up, and pull off the grille.
Front Grille
Holding
Screw
FRONT
Condensing Unit
Handle
Slide to the Front
Slide to the Front
Holding
Screw
Holding Screw
FRONT
Use CU base anges to slid out the unit
VRL2B
Refrigeration Unit
VRL1 and VRL3
Refrigeration
Unit
1. Lift up, and pull off the grille.
2. Remove the holding screw to release the condensing
unit base. Once the condensing unit base is
free, you can slide it out for service. Use base
handle to pull out the condensing unit. Pulling
on refrigeration lines or others parts will cause
damage to the unit.
