36 sErvIcE
4. Remove plastic fasteners to detach defrost
heater leads inside of the fan plenum
compartment.
5. Pull the heater lead from the inside.
(Drip Pan Heater or Evaporator
Heater)

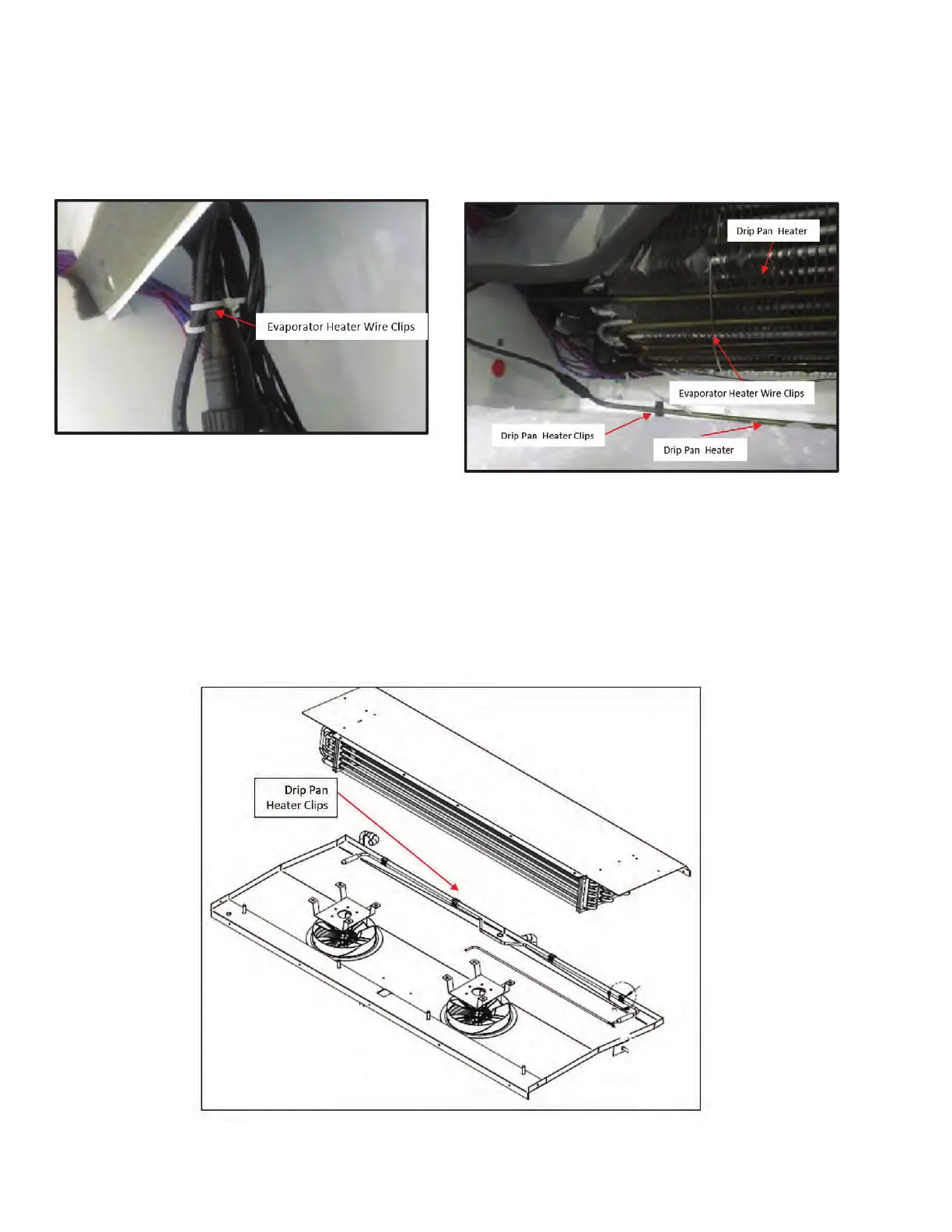

6. When replacing evaporator defrost heater, remove the clips located in the coil. The main
fuction of the clips is to attach the defrost heater to the coil.
If it is determined that drip pan heater needs to be replaced:
Pull up the drip pan heater, and detach the clips from the heater. The function of the clips is to
keep drain pan heater attached to edge of pan.
