HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u.03, .XXX u.010
ANGLES
u 2v
MATERIAL - N/A
DATE DRAWN - 10-11-16
DRAWN BY -CRAIG BOOREY
REVIEWED BY -CRAIG BOOREY
ECN-CAP-0004590
REF -
3016890
DIAGRAM-R3/CR3-TO
-10-R
REV ECN DATE REV BY CHK D BY APPR BY
A ECN-CAP-0004590 2016/10/11 CB CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
NOTES:
CASE MUST BE GROUNDED
WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
A
SHEET 1 OF 1

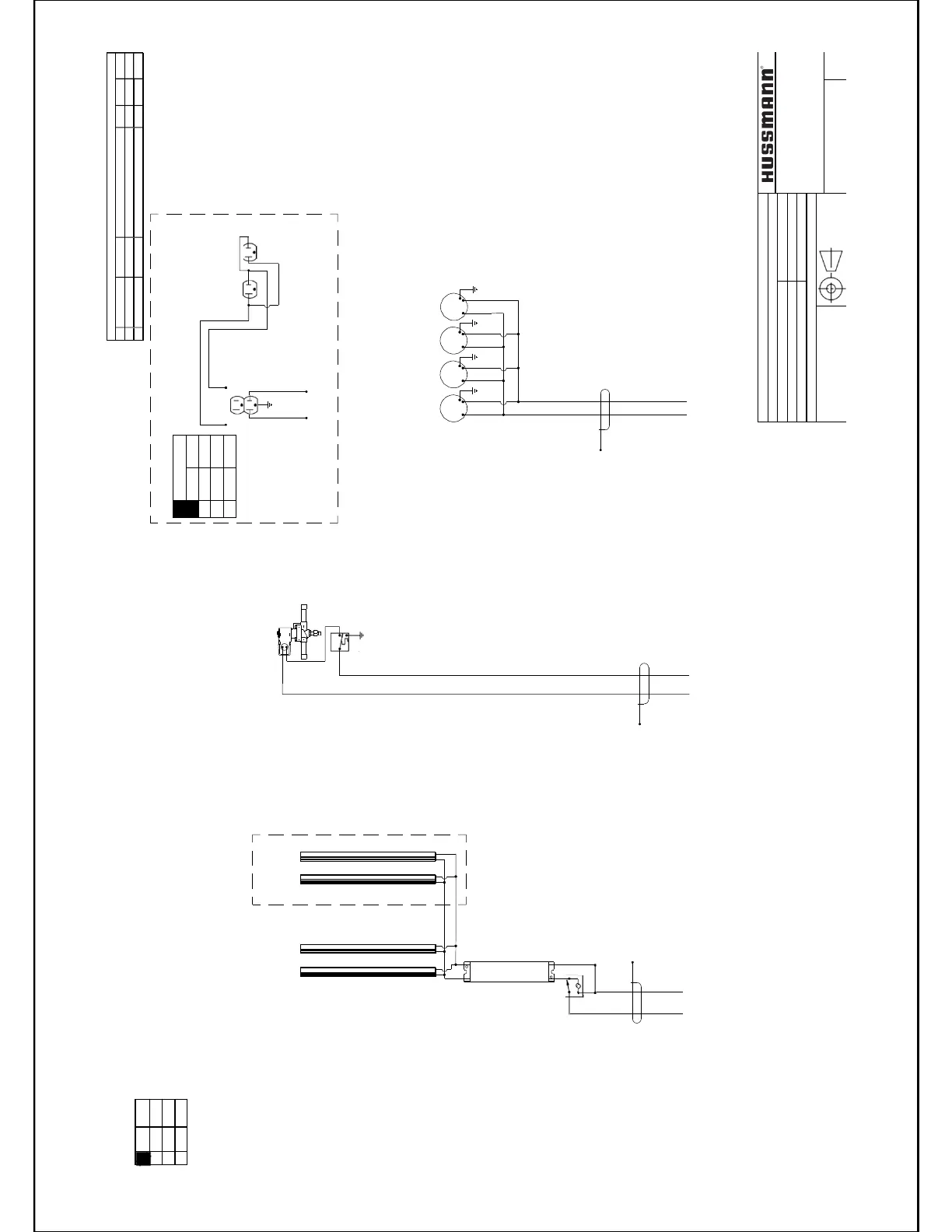

CIRCUIT #1
LOADING
120V
1.0L1
T-STAT
(1) 225-01-0707
TAG
WHITE/BLACK
TAG
BROWN
L1
N
~120 VAC - 60 Hz
BLK # 14
WHT # 14
BLK # 14
WHT # 14
L1
N
FAN MOTOR
0.12 AMP @120VAC
(6) 0477653
M M M
~120 VAC - 60 Hz
MCA= .60A
MOP= 15A
SUCTION SOLENOID
.14A @ 120VAC
L
TAG ORANGE
BLK # 14
L1 N
~120 VAC - 60 Hz
MCA= .51A
MOP= 15A
WHT # 14
LIGHT SWITCH
TIPPETTE
125-01-0311
OPTIONAL SHELF LIGHTS
LED DRIVER
LIGHT CIRCUIT= .41A 44.4W
INCOMING POWER
~120 VAC -60 Hz
GFCI DUPLEX
125-01-3178
NOTE FOR GFCI PROTECTION: IF MORE THAN ONE SINGLE
RECEPTACLE IS USED IN CONJUNCTION WITH A GFCI DUPLEX
RECEPTACLE "DOWNSTREAM" ON THE LOAD SIDE, THE SUM OF
ALL RECEPTACLES SHOULD NOT BE MORE THAN 15A
LOAD SIDE POWER
~120 VAC -60 Hz
125-01-0443
BLK # 14
WHT # 14
GRN # 14
ALL SINGLE
RECEPTACLES TO BE
TIED TO DUPLEX GFCI
RECEPTACLE
BUNDLE
YELLOW
LOADING
120 V
15.0L1
CIRCUIT # 2 (optional)
5' LED LIGHT
M
5' LED LIGHT
5' LED LIGHT
5' LED LIGHT
