Hussmann RL - Wire Anti-Sweat Heaters and Install RL;RM;RMN Solid End; Connect Heater Wiring; Fasten Solid End Assembly

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
15
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
RLNI Only: Wiring from the left
end assembly is routed to, and
wired in, the left wireway; wiring
from the right end panel is routed
to, and wired in, the right wire-
way. The RLNI wiring diagram is
per side — two wiring circuits per
merchandiser.
10
Connect anti-sweat
heater wiring to terminal
block according to Figure 11.
Note that grayed information
is standard merchandiser wiring.
11 Solid Ends
Fasten End Assembly — 5
to merchandiser using
Cap Screw — 6. After end
assembly has been tightened,
insert Plug — 7 and
Button — 8 as shown in
Figure 12.

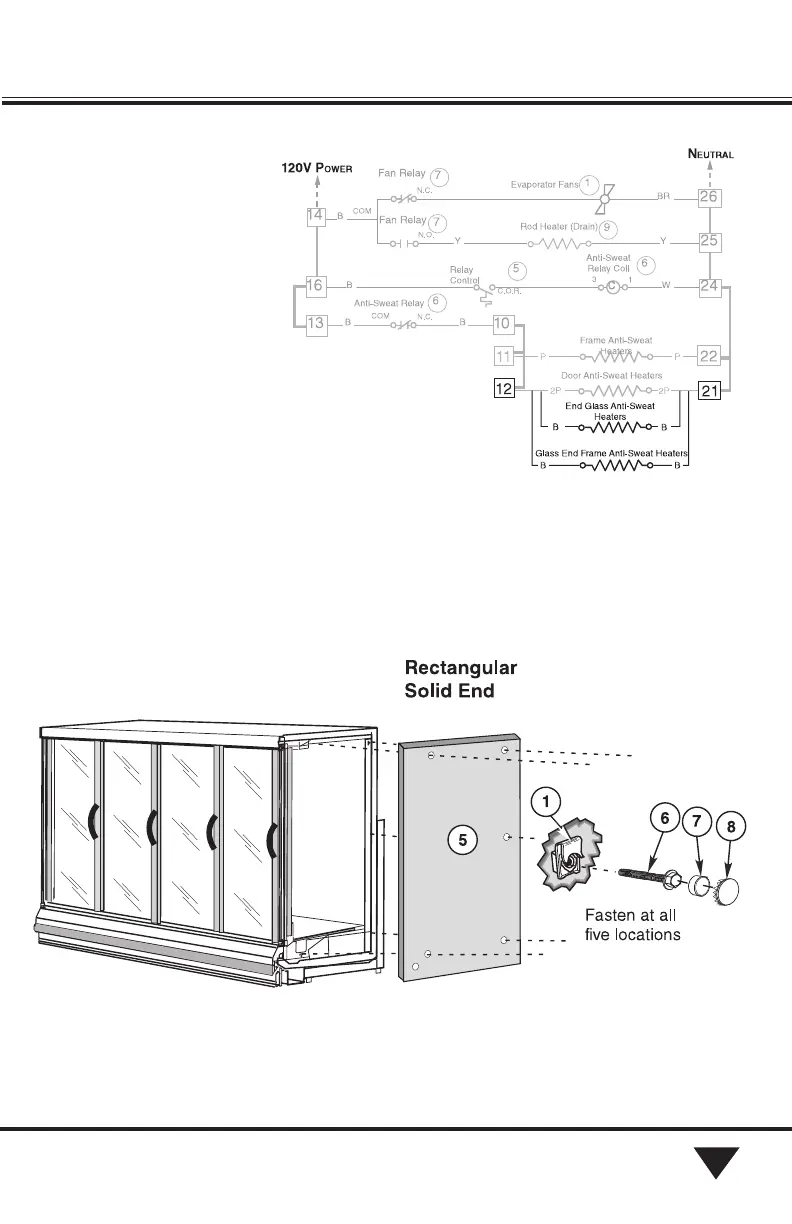

Figure 11. Wire End Anti-Sweat Heaters
Figure 12. Install Solid End Assembly
RL / RM / RMF
and RLN / RMN
