Hussmann RL - Install RLNI Solid End - Left Side and Center Trim; Attach Left Side of Solid End; Install Center Trim on Solid End

P/N 0387152_H
16
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
RLNI ONLY
12
RLNI with solid end:
The end panel for the
Reach-in Island ships in two
pieces. Attach the Left Side
of End Assembly — 5
to merchandiser using
Cap Screw — 6 as shown
in Figure 13. After end
assembly has been tight-
ened, insert Plug — 7 and
Button — 8.
13
Position the
Center End Trim — 9
flush against the installed
side and fasten with Screws
— 10 as shown in Figure 14.
8
7
6
5
1

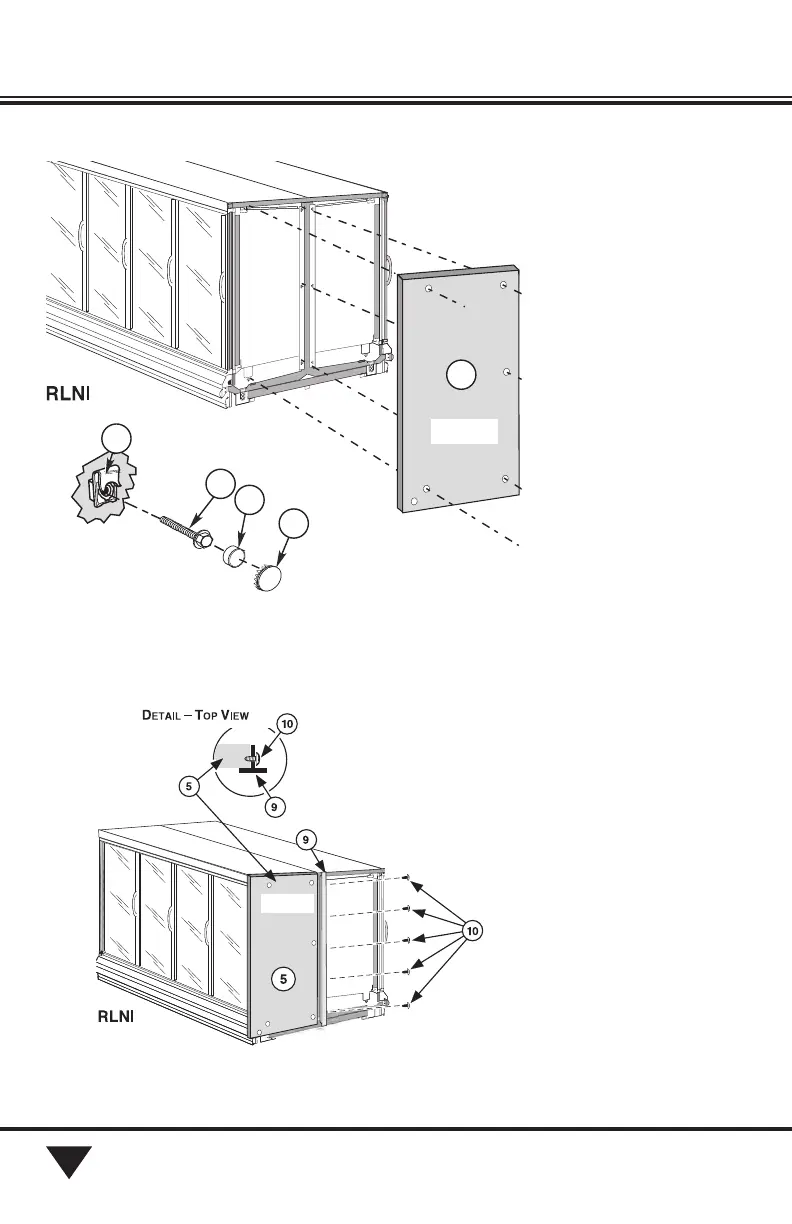

Figure 14. Install Center End Trim on RLNI Solid End
Figure 13. Install Left Side of Solid
End Assembly on Island
Left Side
Left Side
