Hussmann RL - Install RLNI Solid End - Right Side and Fasten Lower Front; Attach Right Side of Solid End; Fasten Lower Front Section

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
17
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
14
Once the trim is installed,
attach the Right Side
of the Solid End Assembly —
5 using Cap Screw — 6. After
end assembly has been tight-
ened, insert Plug — 7 and
Button — 8 as shown in
Figure14.
All Ends Except RLT:
15
Fasten
End Assembly — 5
at the lower front using
Cap Screw — 6 and
Nut — 11 as shown in Figure
16A. Insert Plug — 7 and
Button — 8.
RLT:
Fasten End Assembly — 5
at the lower front using
Cap Screw — 12 and
Nut — 11 as shown in
Figure 16B. Insert Plug — 7
and Button — 8.
8
7
6
1
5
5

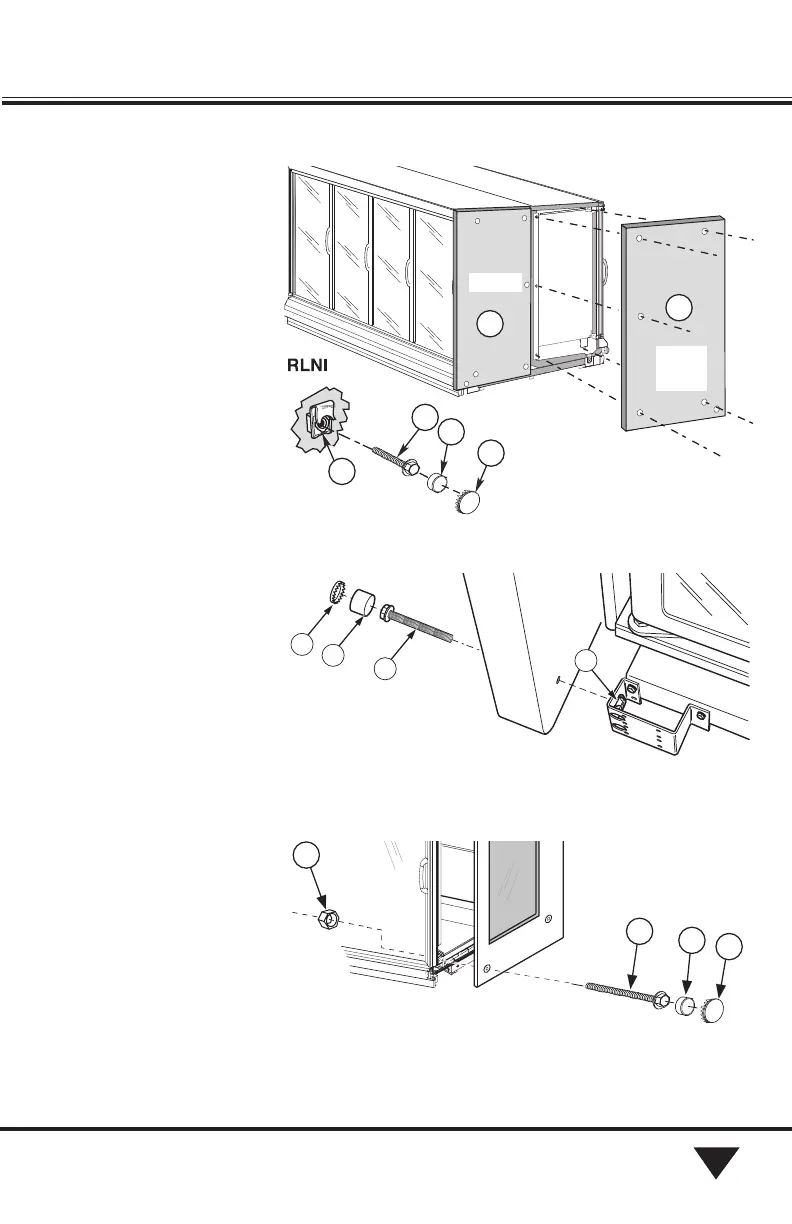

Figure 15. Install Right Side of Solid End Assembly on Island
Right
Side
Left Side
11
5
RLT End
7
12
8
Figure 16B. Fasten Lower Front – RLT
7
6
8
12
Figure 16A. Fasten Lower Front – ALL Models Except RLT
