Hussmann RL - Install Molding, Splashguard, and Bumper Cover; Install J Molding; Install End Splashguard; Install Bumper End Cover (RLT Only)

P/N 0387152_H
18
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
16
Innovator and
Innovator II doors
only: Insert End ‘J’ Molding
– 13 between door frame
and end assembly. Align
holes in molding with holes
in door frame then insert
Shoulder Screws – 14 as
shown in Figure 17.
17
Align End
Splashguard – 17
with front splashguard as
shown in Figure 18. Fasten
to end frame of merchandis-
er using Screws – 10.
Cut overlapping splash-
guard to fit (see Figure 18
detail).
RLT Only.
18
Attach the
Bumper End Cover
– 15 on the merchandiser
front bumper retainer using
Screws – 16 as shown in
Figure 19. Note: the RLT
has no starter bumper.
13
14
13
14

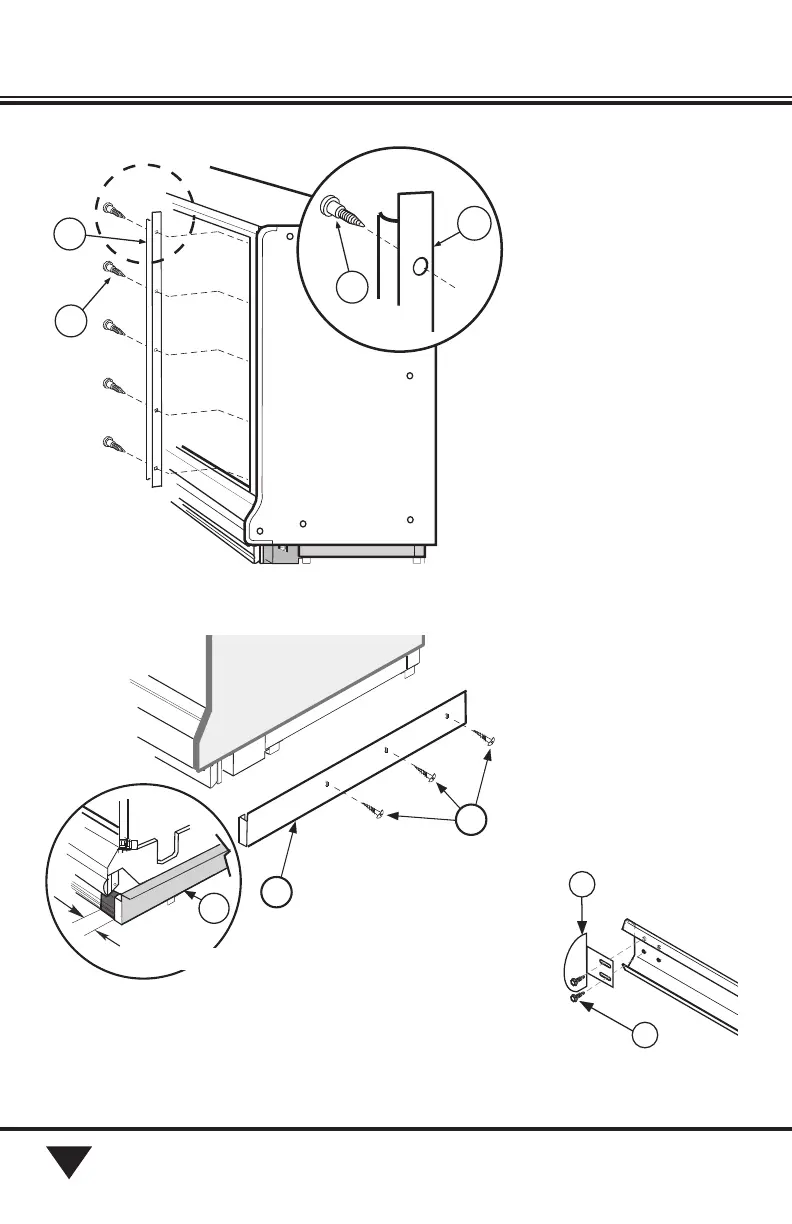

Figure 17. Install ‘J’ Molding
Figure 18. Install End Splashguard
17
10
17
DETAIL
If front splashguard is plastic, trim
to align with End Splashguard.
15
16
Figure 19.
Install Bumper End
Cover
