Hussmann RL - Install Bumpers, Valance, and Optional Protector; Install Starter Bumper (Left End Only); Install RLT Valance and Brackets; Install Optional End Protector

Reach-in Rectangular Solid
and Contour Glass Ends
P/N 0387152_H
19
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
19
Left End Only: Install
Starter Bumper – 18
on the merchandiser front
bumper retainer as shown in
Figure 20, and in Section 1 of
the merchandiser installation
manual.
RLT Only.
20
Attach the
End Valance – 19 and
End Valance Brackets – 20 to
the merchandiser using
Screws – 16 as shown in
Figure 21.
Install
Optional End Protector
21
Fasten
End Protector – 21
to end using Screws – 22.
Screw locations will vary with
tread pattern. See Figure 22.
Figure 22. Install Optional
End Protector

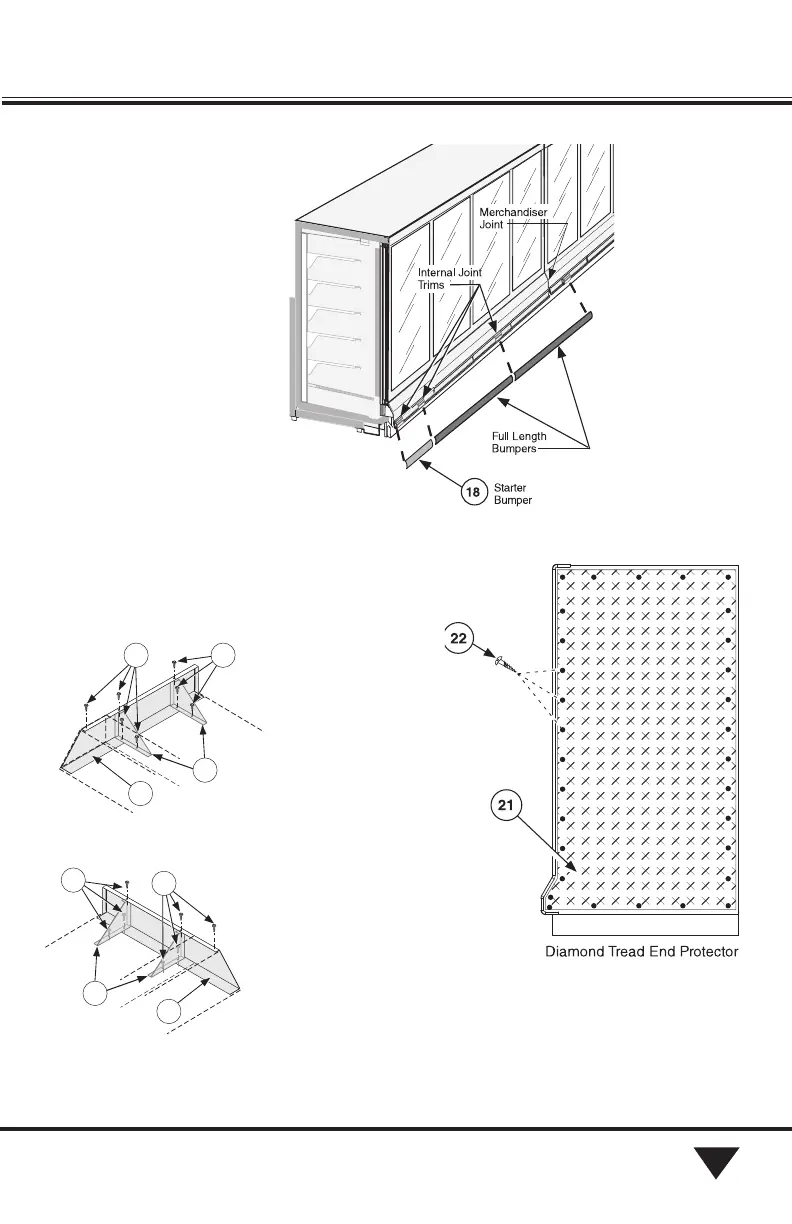

Figure 20. Install Starter Bumper
Right End of RLT
Left End of RLT
16 16
16
16
19
20
20
19
Figure 21. Install RLT Valance
