Hussmann RL - Install Optional End Bumper; Install Bumper Retainer and End Caps; Slide in End Bumper

P/N 0387152_H
20
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Install
Optional End Bumper
1
Position Bumper Retainer –
23 against End Assembly as
shown in Figure 23 and check
for level. Refer to Figure 24
to determine placement.
Glass Ends: Position of center
screw may be offset so that
internal wiring is not dam-
aged. Fasten through center-
line groove with Screws – 24.
2
Place rear Bumper End Cap
– 25 over Retainer and slide
the End Cap forward until
it stops. Fasten using Screw
– 26.
3
Slide End Bumper – 27
into Bumper Retainer and
back against End Cap.
4
Place front
Bumper End Cap – 25
over Retainer and under
Bumper. Mark location of
front of end cap. Remove end
cap and slide the bumper off.
Slide the front bumper end
cap to mark and fasten with
Screw – 26.
5
Hook the End Bumper – 27
over the retainer and push
down until it engages, front
to back.

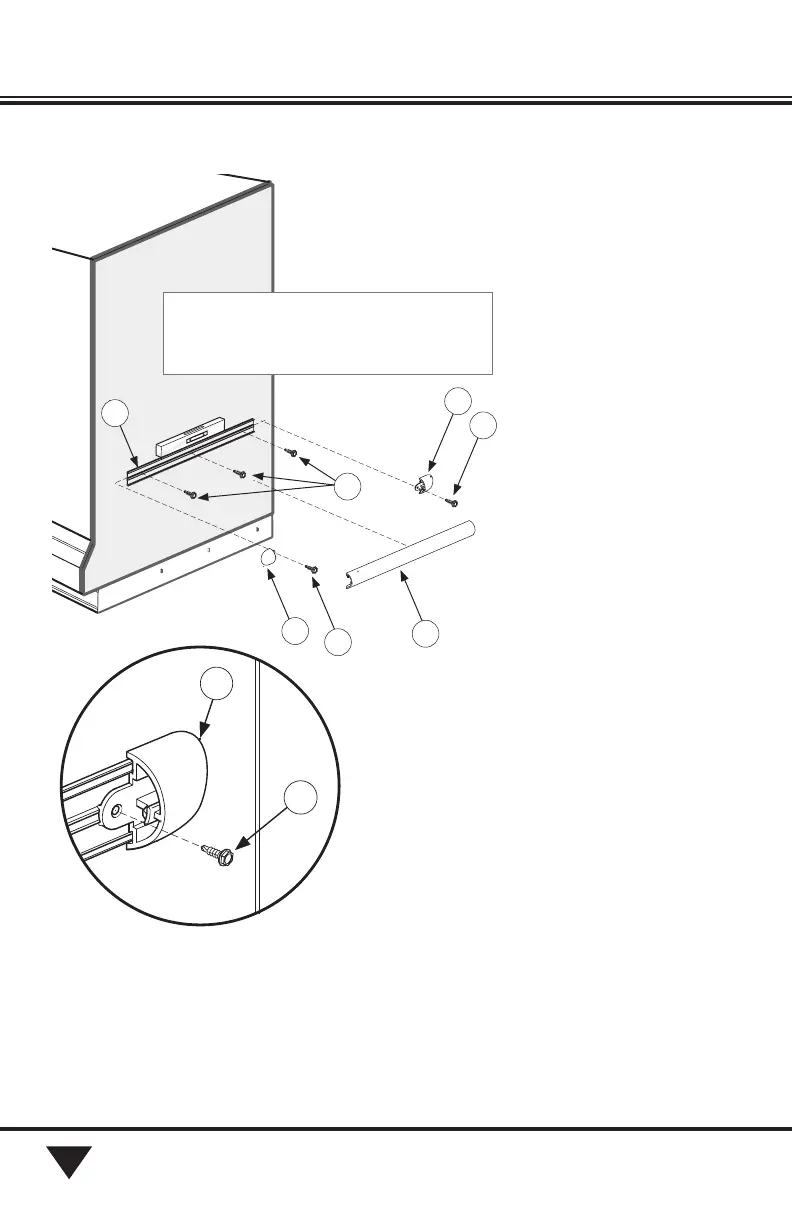

Figure 23. Install Optional End Bumper
25
26
25
26
23
27
24
25
26
Glass Ends: Position of center screw may be offset
so that internal wiring is not damaged.
