HUSTLER 4200 User Manual

728444 Rev. 11/02
3-1
Controls
For general location of the controls described in this
section, refer to Figure 3-1.
1. Ignition switch (Fig. 3-2) – Models 4200,4400, 4420
and 4600. A four-position switch: off, pre-heat, run
and start. With key inserted, rotate it counterclock-
wise for engine pre-heat, then rotate full clockwise for
start; release key when engine fires, and switch will
automatically return to RUN position.
Models 4300 and 4500. A three-position switch: off,
run and start. With key inserted, rotate it clockwise to
start. Release key when engine fires, and switch will
automatically return to RUN position.
2. Throttle (Figs. 3-2 and 3-3) – a mechanical link
connected to the engine governor for controlling
engine rpm. On models 4200/4400/4420/4600 (Fig. 3-
2), move lever up to increase engine rpm, move down
to decrease engine rpm. On models 4300 and 4500
(Fig. 3-3), move lever down and forward to increase
engine rpm, pull up and back to decrease engine rpm.
3. Choke control (Fig. 3-2) – a cable link to manual
engine choke, models 4300 and 4500 only. Move up
for cold starting, move down for normal run.
OPERATION

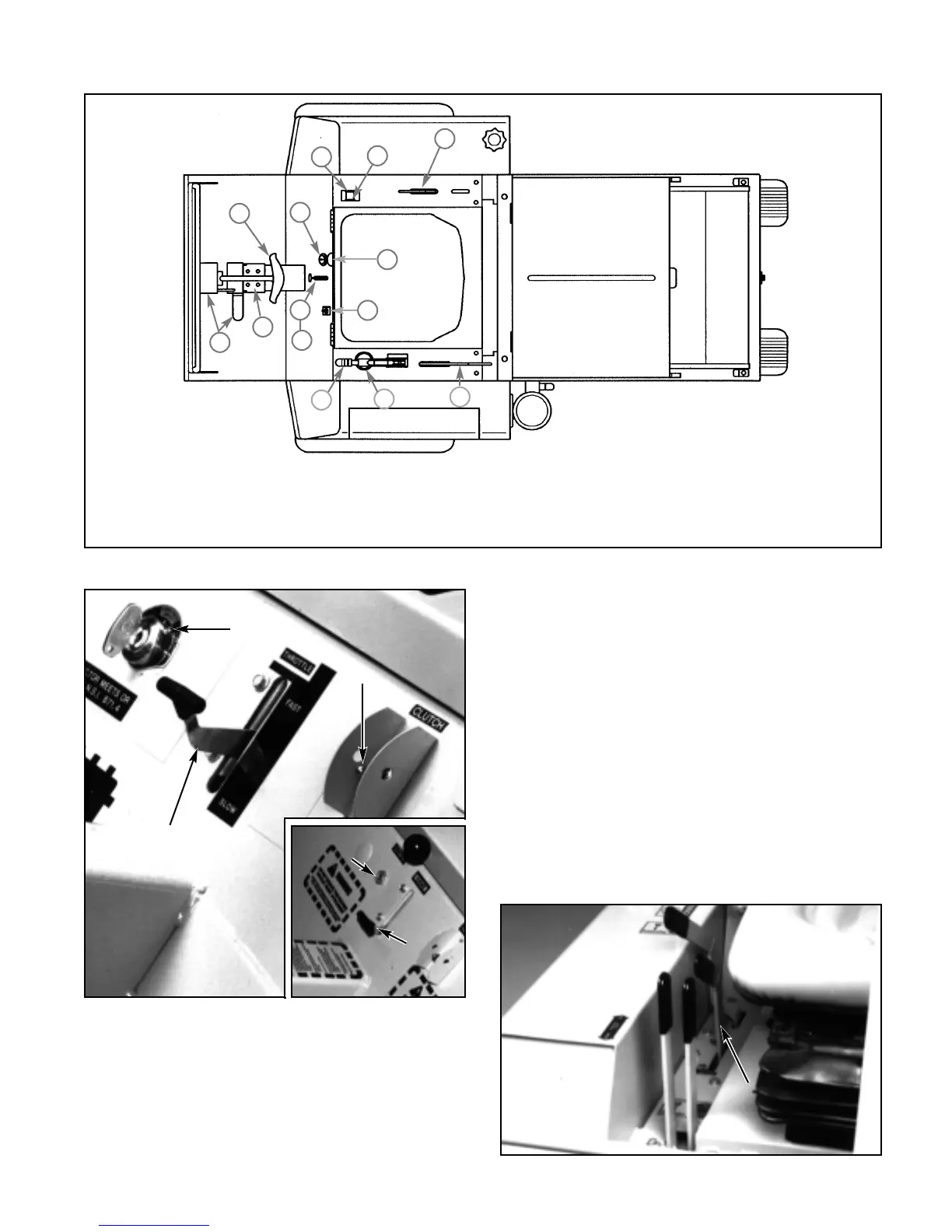

Figure 3-1
Figure 3-2
Figure 3-3
TThhrroottttllee lleevveerr
((MMooddeellss 44330000 && 44550000
oonnllyy))
Ignition Switch
Throttle
Lever
(Models 4200 & 4400)
(Models 4420 & 4600 not
shown)
Electric Clutch
Switch
1. Ignition Switch 4. Electric Clutch Switch 8. Parking Brake 12. Warning Lights
2a. Throttle Lever (4200, 4400 4420 & 4600) 5. Neutral Lock Levers 9. Attachment Lift Lever 13. Seat Latch
2b. Throttle Lever (4300 & 4500) 6. Steering Control Lever 10. Auxiliary Control Lever
3. Choke Lever (4300 & 4500 only) 7. Pump Clutch Lever 11. Hour Meter
1
2a
3
13
4
9
10
2b
8
11
7
5
12
6
IIggnniittiioonn
SSwwiittcchh
CChhookkee
LLeevveerr
((MMooddeellss
44330000 &&
44550000))
