HUSTLER 928739 User Manual

109632 09/08 2-15

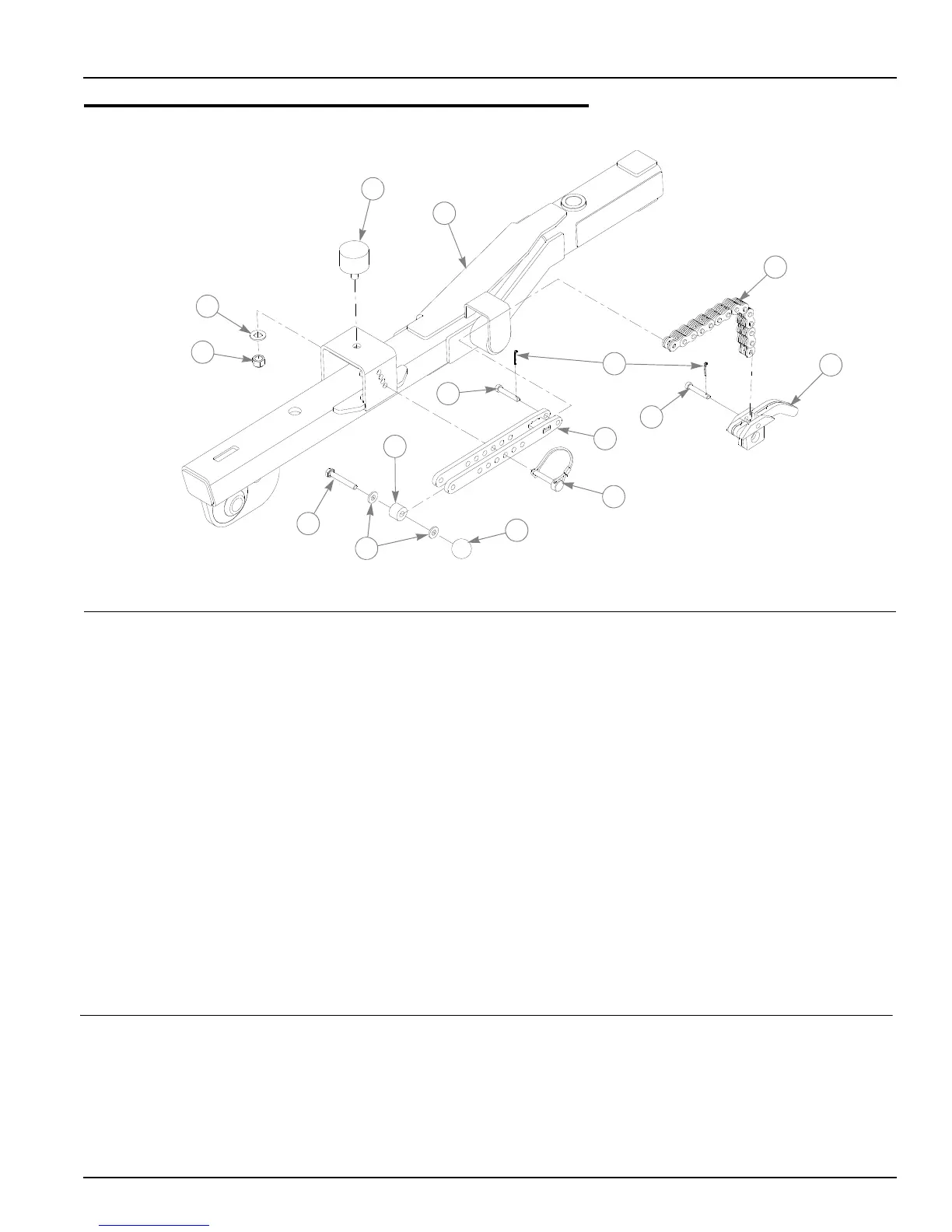

Carrier Arm Sub-Assembly—72" Deck
NOTES:
1. Left side is shown; right side lift arm assembly is similar.
ITEM NO.
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
1 109952 109952 1 LIFT ARM W/A LS (SHOWN)
109951 109951 1 LIFT ARM W/A RS (NOT SHOWN)
2 601650 601650 1 VIBRATION MOUNT
3 767954 767954 1 FW .406X .812 X.060 SAE
4 086660 086660 1 NT .375-16 HXZY NL
5 705145 705145 1 CS .250-20X1.750 HX G5
6 768515 768515 2 FW .281X.625X.051/.080H
7 110186 110186 1 SPACER BUSHING
8 056333 056333 1 KNOB 1.00 ROUND.250-20
9 110695 110695 1 YOKE W/A
10 601689 601689 1 CE .250 X 1-15/16 W/BALE
11 601762 601762 1 LEAF CHAIN 4X4 5/8 PITCH
12 110478 110478 1 CHAIN LUG W/A
13 601770 601770 2 CONNECTING PIN W/HEAD
14 017228 017228 2 CP .062DX .500 LG HML Z
7
4
6
1
11
2
3
5
8
9
10
12
13
13
14
