109632 09/08 4-3

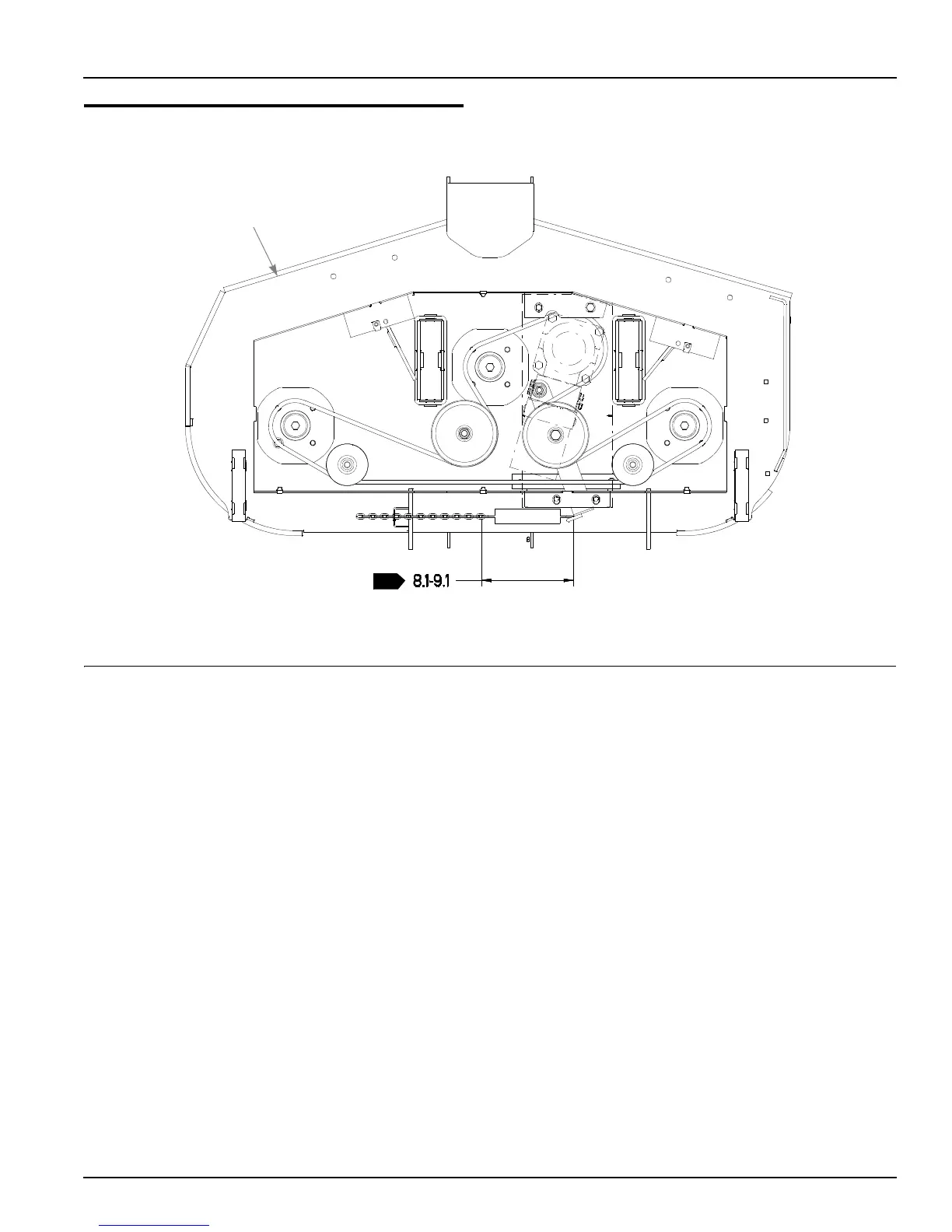

Belt Routing and Tensioning
NOTES:
1. Spring length after tensioning belt. Measure spring from outside of hook
to outside of hook.
2. Route belt as shown.
DECK
ASSEMBLY
1
