HUSTLER 928739 User Manual

2-16 109632 09/08

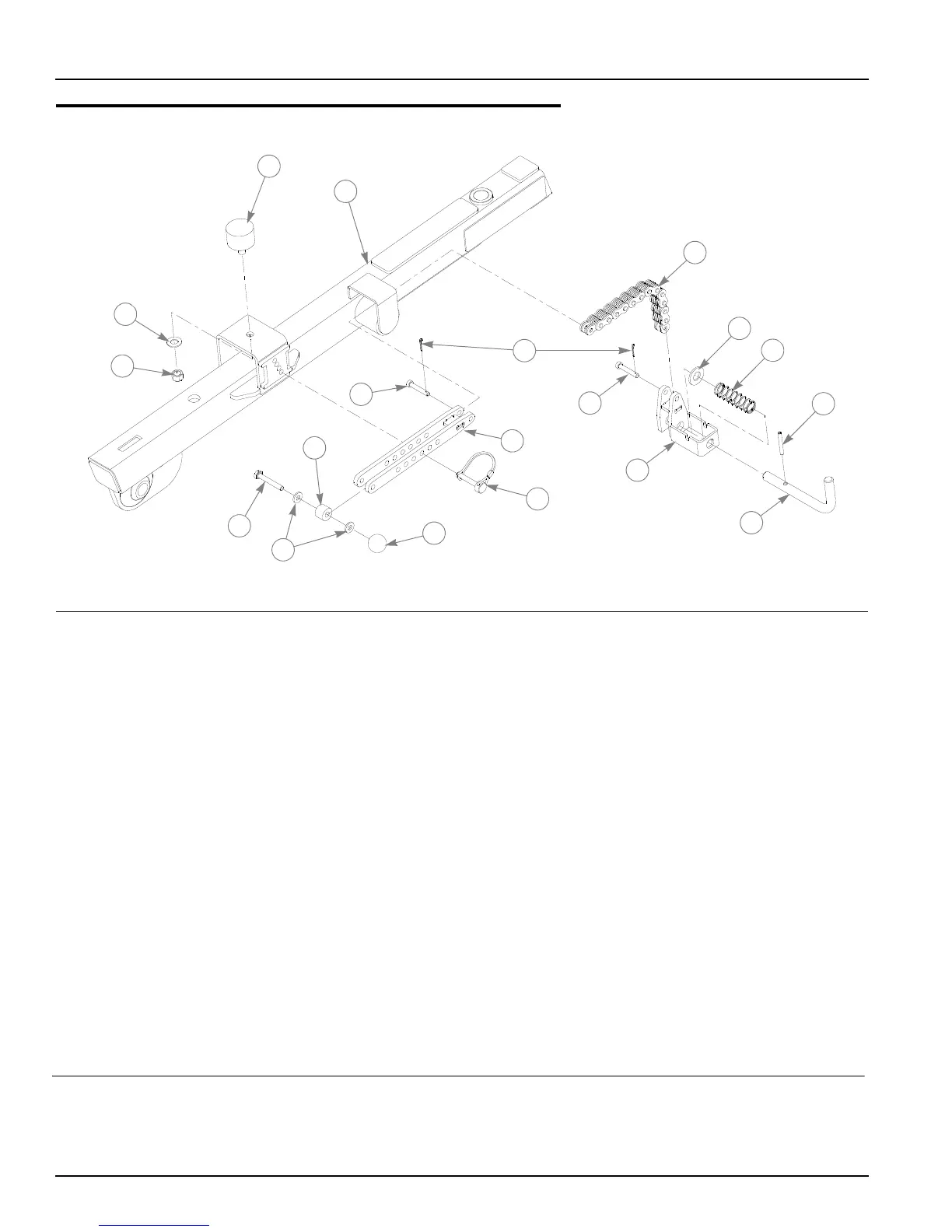

Carrier Arm Sub-Assembly—60" Deck
NOTES:
1. Left side is shown; right side lift arm assembly is similar.
ITEM NO.
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
1 109576 109576 1 LIFT ARM W/A LS (SHOWN)
109410 109410 1 LIFT ARM W/A RS (NOT SHOWN)
2 601650 601650 1 VIBRATION MOUNT
3 767954 767954 1 FW .406X .812 X.060 SAE
4 086660 086660 1 NT .375-16 HXZY NL
5 705145 705145 1 CS .250-20X1.750 HX G5
6 768515 768515 2 FW .281X.625X.051/.080H
7 110186 110186 1 SPACER BUSHING
8 056333 056333 1 KNOB 1.00 ROUND.250-20
9 110695 110695 1 YOKE W/A
10 601689 601689 1 CE .250 X 1-15/16 W/BALE
11 601762 601762 1 LEAF CHAIN 4X4 5/8 PITCH
12 767962 767962 1 FW .531X 1.063X.090 SAE
13 601580 601580 1 COMPRESSION SPRING
14 110690 110690 1 HANGER RELEASE BRACKET W/A
15 601578 601578 1 RELEASE PIN
16 601579 601579 1 SPRING (ROLL) PIN
17 601770 601770 2 CONNECTING PIN W/HEAD
18 017228 017228 2 CP .062DX .500 LG HML Z
7
4
6
1
11
2
3
5
8
9
10
12
13
14
15
16
17
17
18
