Fuel system
WARNING: Observe usual fuel handling
precautions; do not smoke while refueling, do not
fill tank with engine running or while engine is
hot; allow engine to cool before storing machine
inside a building, keep fuel away from open
flame or spark and store machine away from
open flame or spark if there is fuel in the tank.
Read and observe safety precautions at front of
this manual.
The 5.0 U.S. gallon (18.9 liter) fuel tank is located
behind the engine. Fig. 4-6
Use regular unleaded gasoline with an octane rating of 87
or higher.
The fuel filter is installed in the fuel line between fuel
tank and engine fuel pump. Replace filter annually or after
every 500 hours of operation, whichever occurs first. Fig. 4-
7
When replacing the fuel filter, check the fuel line hoses
and fuel shut-off valve grommet for any cracks or leaks.
Replace as needed.
A fuel shut-off valve is located on the underneath side of
the fuel tank. Close this valve to prevent fuel flow to the
engine.
Engine oil and filter
Check engine oil daily and after every 4 hours of
operation. Tractor must be setting level when checking oil.
Refer to engine manual and maintenance schedule for oil
recommendation and capacities.
Change the engine oil and filter after the first 5 hours of
778845 Rev. 7/04
4-5

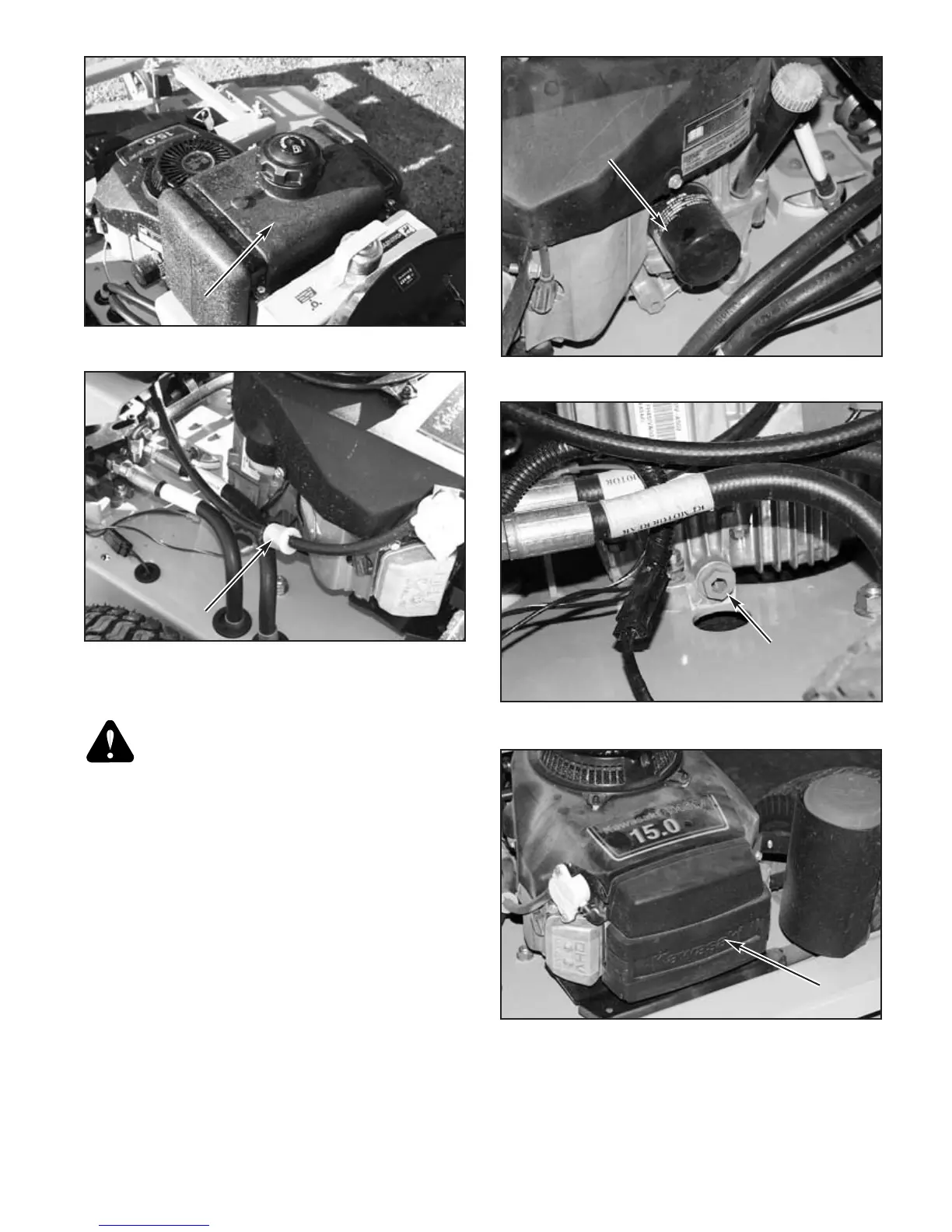

Figure 4-7
Fuel
filter
Figure 4-6
Fuel
tank
Figure 4-9
Engine
drain plug
Figure 4-10
Air
filter
Figure 4-8
EEnnggiinnee ooiill
ffiilltteerr
