HUSTLER MDV - Maintenance Location Diagrams; Component Location Diagrams

REV A 4-14 606653
Maintenance Location Diagrams

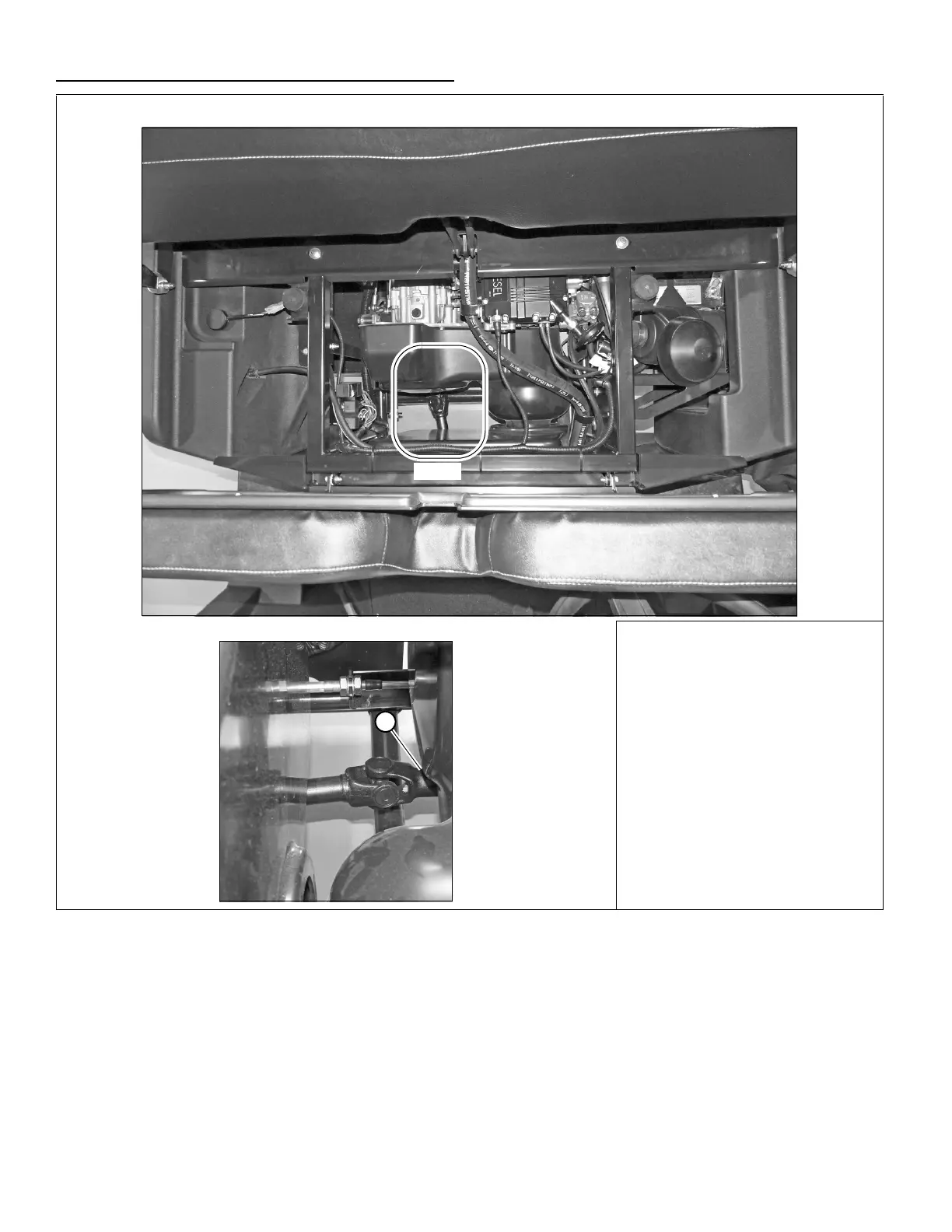

VIEW UNDER THE SEAT BOTTOM
VIEW A
1. Drive Shaft U-joint - Front (grease point)
2. Drive Shaft U-joint - Rear (grease point)
3. Engine Oil Fill
4. Engine Oil Filter
5. Engine Oil Drain Plug
6. Brake Fluid Reservoir
7. Coolant Recovery Tank
8. Radiator Cap
9. Air Restriction Indicator
10. Engine Air Cleaner
11. Evacuator
12. Battery
13. Engine Oil Dipstick
14. Fuel Tank
15. Fuel Cap
16. Tires
VIEW A
1
