HUSTLER MDV User Manual

REV A 4-4 606653
In-line Fuse
This vehicle has a 10 AMP in–line fuse integrated into the
electrical system. It is located next to the dash under the
front hood. Figure 4-8
This fuse protects the start interlock, fuel solenoid, gauges,
and pre-heat module which are on during engine cranking.
Figure 4-8
Fuel and Evaporative Emissions Control System
IMPORTANT: Refer to the Safety Precautions section of this
manual for fuel handling safety information.
The fuel and evaporative emissions control system for this
vehicle is EPA compliant. Use only Hustler
®
approved
replacement parts.
Your evaporative emission control system may include
parts such as:
• fuel tank
• fuel lines

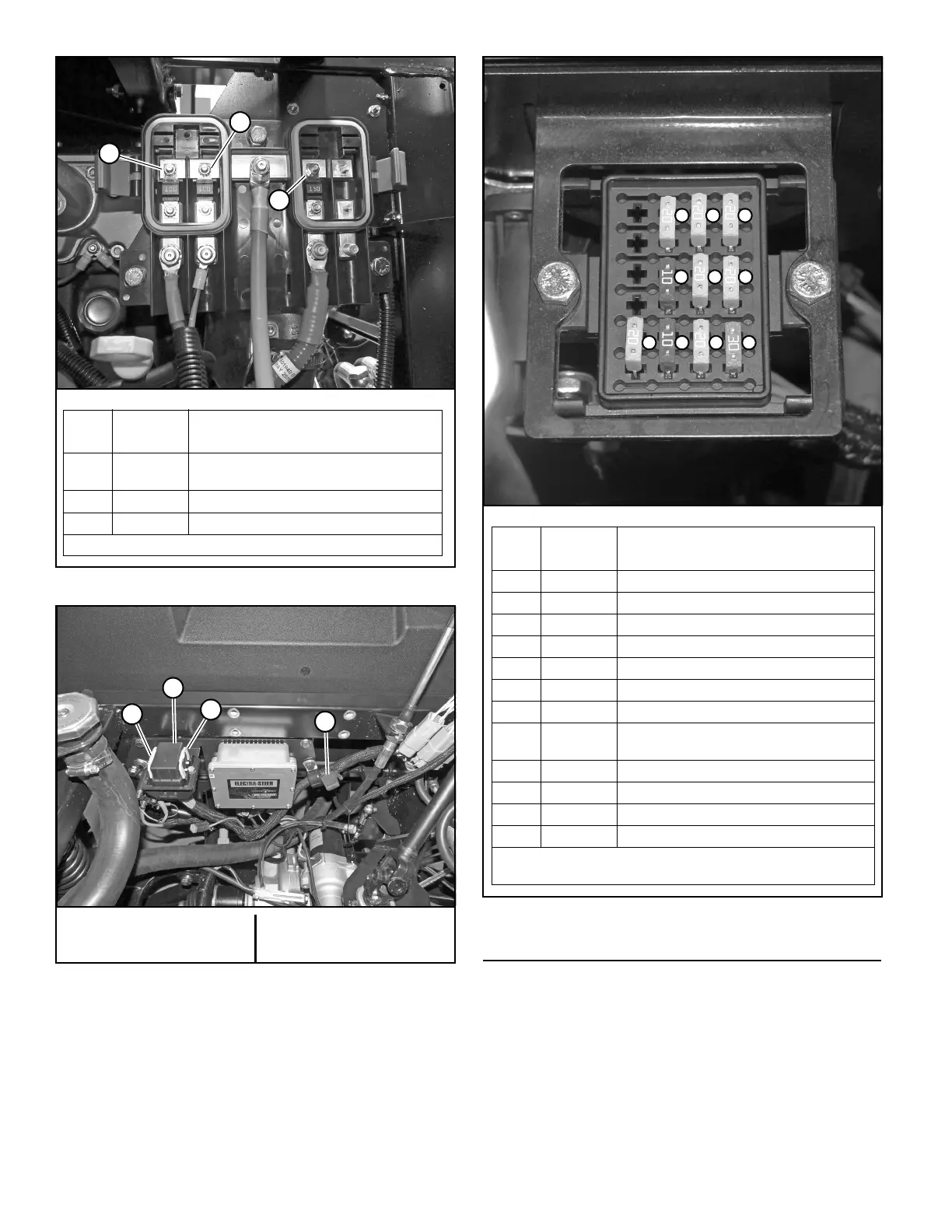

Figure 4-7
A. Fuse box cover
B. Yellow clips
C. In–line fuse housing
Figure 4-8
A
C
B
REF.
FUSE SIZE
(AMPS)
DESCRIPTION
A 100 Main power circuit fuse (all vehicle except
glo plugs function)
B 100 Glo plugs (engine pre-heat)
C 150 Starter power / battery charging
NOTE: These are AMI style fuses.
A
B
B
C
Figure 4-9
6
5
4
3
2
1
9
8
7
10
REF.
FUSE SIZE
(AMPS)
DESCRIPTION
1 30 Power steering
2 20 Radiator fan
3 20 Radiator fan / temperature switch
4 20 Horn / headlight / front differential
5 20 Auxiliary power (dash)
6 20 Power point
7 10 Alternator exciter
8 10 Transmission speed sensor / rear differential
actuator
9 20 Auxiliary power (under the hood)
10 20 Spare fuse
11
12
NOTE: These are blade type fuses.
NOTE: Fuse block orientation may differ from one shown.
