REV A 6-4 117373
Belts
Inspect belts frequently for wear and serviceability. Replace a
belt that shows signs of severe cuts, tears, separation, weather
checking and cracking, or burns caused by slipping. Slight rav-
eling of belt covering does not indicate failure, trim ravelings
with a sharp knife.
Inspect the belt pulley grooves and flanges for wear. A new
belt, or one in good condition, should never run against the bot-
tom of the groove. Replace the pulley when this is the case, oth-
erwise belt will lose power and slip excessively.
Never pry a belt to get it on a pulley as this will cut or damage
the fibers of the belt covering.
Keep oil and grease away from belts, and never use belt dress-
ings. Any of these will destroy the belt composition in a very
short time.
Deck Belt Adjustment
The spindle belt tension remains constant by means of a ten-
sion idler and spring. There is no tension adjustment of this belt.

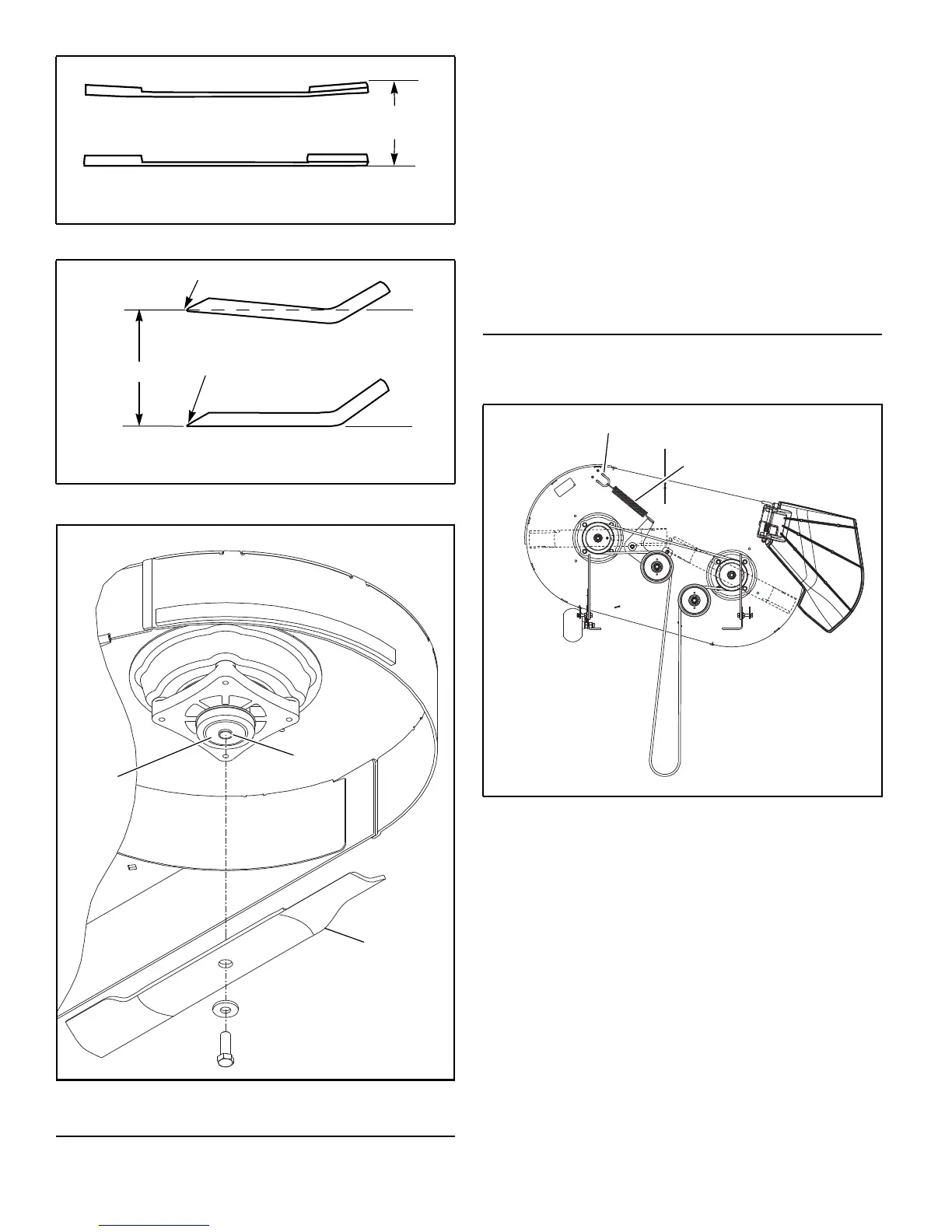

Figure 6-13 & Figure 6-14
Figure 6-10
Figure 6-11
Figure 6-12
Warped Blade (Replace)
Straight Blade
Cutting
plane
Comparison of Warped and Straight Blades
Cutting edge
Twisted Blade Edge
(replace)
Cutting edgeCutting Plane
Straight Blade Edge
End view of blades, comparing
twisted and straightened blades
Boss
Spindle
shaft
face
Blade
Figure 6-13
Spring anchor point
Idler
spring
