127180 4-3 REV A
6. Repeat for the other side.
48"/52"/60" Steering control lever stops
1. Move the steering handles forward so the pump is fully
activated.
2. Pivot the forward stop back until it contacts both
steering handles. Tighten the cap screws on the
forward stop. Figure 4-7
To adjust the stops for driving straight when steering
control levers are against the stops during operation:
Before considering any adjustment, check the tire air
pressure. Unequal tire pressure will cause the mower to drift
to one side. Refer to tire pressure information in the Tires
section for detailed information.
1. Remove the front cover.
2. Push forward on the steering control lever until it
contacts the steering control lever stop. Repeat for
other side.
3. Loosen the lock nut and back the speed adjusting
screw out until it does not contact the steering handle
stop. Repeat for other side. Figure 4-8
4. To determine which of the drive wheels is turning the
slowest it will be necessary to drive the machine.
• Test drive the mower on a smooth level surface.
• Start the engine.
• Release the park brake.
• Set the throttle to the full open position.
• Slowly push the steering control levers to the full
forward position.
• Determine which drive wheel is rotating faster.
• Pull the steering control levers to the neutral
position.
• Set the throttle to the slow position.
• Turn engine off.

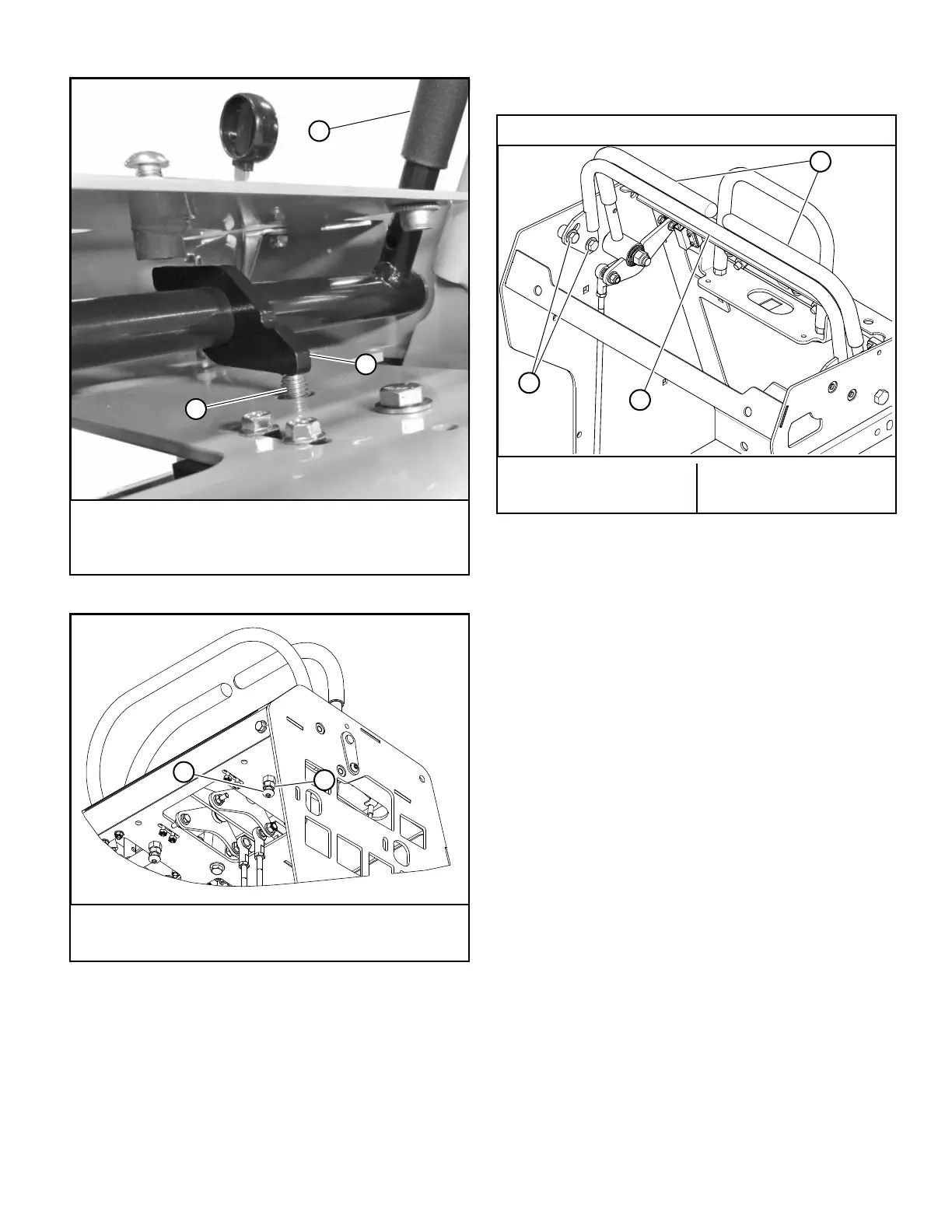

A. Steering control lever stop screw
B. Steering control lever
C. Steering handle stop
Figure 4-5
A. Steering control lever stop screw
B. Jam nut
Figure 4-6
48"/52"/60" Mowers
A. Steering handles
B. Forward stop
C. Cap screws
Figure 4-7
