HUSTLER Super S User Manual

127180 5-5 REV A

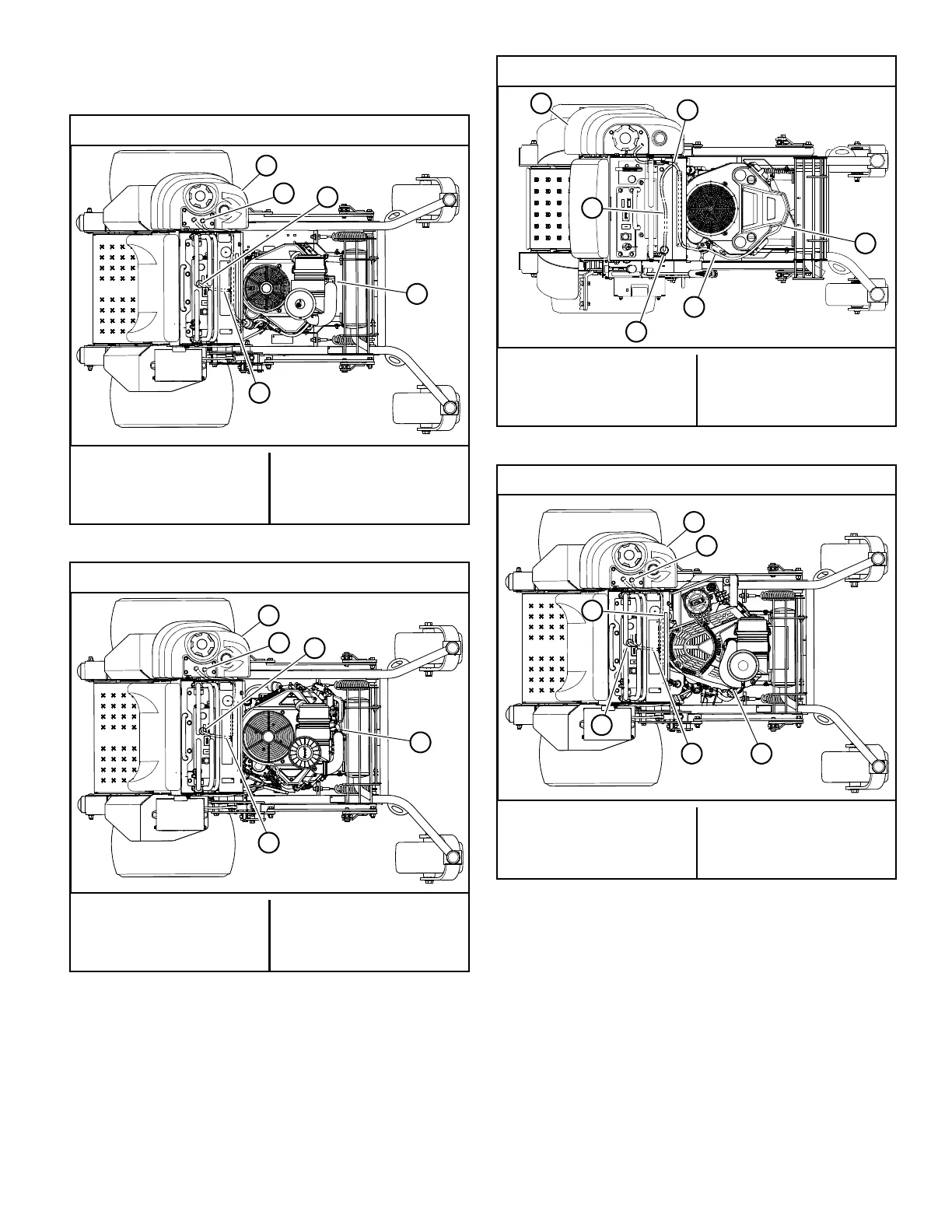

The vapor lines are connected to the fuel tank as shown.
They connect the fuel tank to the engine’s vapor port.
Figure 5-11, Figure 5-12, Figure 5-13, & Figure 5-14
48"/52"/60" Mowers with Kawasaki engines
A. Fuel tank
B. Vapor lines
C. Fuel evaporation system
filter
D. Engine vapor port
Figure 5-11
52"/60" Mowers with Kawasaki EFI engines
A. Fuel tank
B. Vapor lines
C. Fuel evaporation system
filter
D. Engine vapor port
Figure 5-12
A
B
B
C
D
A
B
B
C
D
36" Mowers with Kawasaki engines
A. Fuel tank
B. Vapor lines
C. Fuel evaporation system
filter
D. Engine vapor port
Figure 5-13
60" Mowers with Vanguard/Oil Guard™ engines
A. Fuel tank
B. Vapor lines
C. Fuel evaporation system
filter
D. Engine vapor port
Figure 5-14
A
B
C
B
B
D
A
B
C
B
B
D
