HUSTLER Super S User Manual

127180 6-5 REV A
3. Remove the deck covers. Figure 6-10
4. Locate and remove the belt guide shoulder bolt.
Figure 6-11
5. Go to the left side of the deck and insert a 1/2” drive
breakover bar with an extension into the 1/2” square
hole in the deck idler arm plate. Rotate the breakover
bar towards the front of the mower to release the belt
tension. Figure 6-12 & Figure 6-13
6. Remove the deck drive belt from the deck spindle
pulleys and idler pulley. Figure 6-14
7. Remove the deck drive belt from the electric clutch
pulley located on the hydraulic pump jack shaft.
Figure 6-15
8. Route the new deck drive belt around the clutch pulley,
spindle pulleys and idler pulley. Make certain the belt
is routed properly. Figure 6-14 & Figure 6-15
9. Use the 1/2” breakover bar and extension to ease the
idler pulley tension, slide the belt over the left side
spindle pulley. Slowly allow the idler pulley to engage
the deck belt. Remove the 1/2” breakover bar and
extension. Figure 6-13

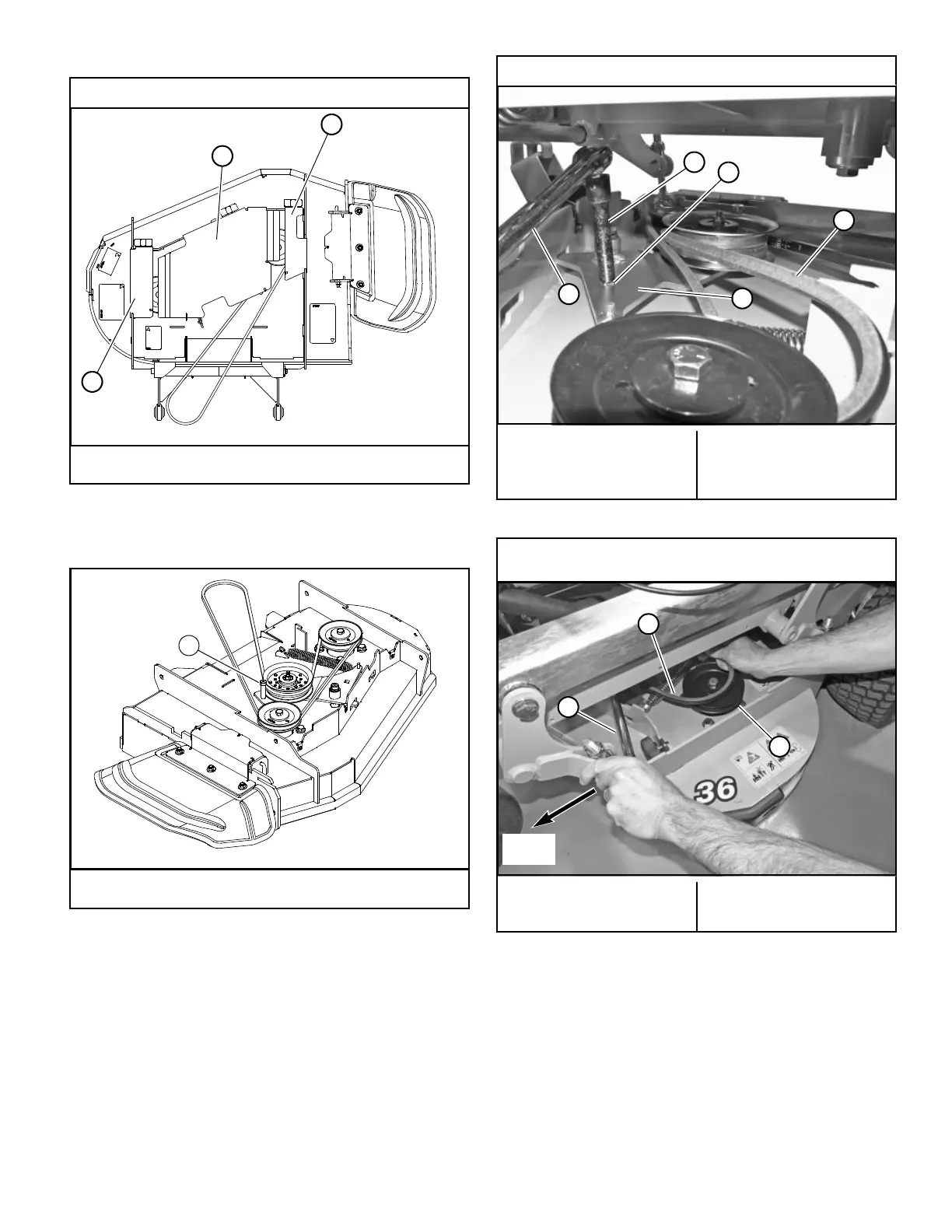

36” Deck shown
A. Deck covers
Figure 6-10
A. Belt guide shoulder bolt
Figure 6-11
A
A
A
A
36” Deck shown
A. 1/2” drive breakover bar
B. Deck drive belt
C. Idler arm plate
D. 1/2” square hole
E. 1/2” drive extension
Figure 6-12
Rotate the 1/2” breakover bar towards the front of the
mower.
A. 1/2” drive breakover bar
B. Deck drive belt
C. Left side spindle pulley
Figure 6-13
C
B
A
D
E
A
B
C
Front of
mower
