127180 6-7 REV A
4. Release the deck drive belt tension by pulling on the
deck drive belt at the locations shown in Figure 6-17
and pulling it off of the left spindle pulley.
5. Remove the deck drive belt from the deck spindle
pulleys and idler pulleys. Figure 6-18
6. Remove the deck drive belt from the electric clutch
pulley located on the hydraulic pump jack shaft.
Figure 6-19
7. Route the new deck drive belt around the clutch pulley,
right and center spindle pulleys and idler pulleys.
Make certain the belt is routed properly. Figure 6-18 &
Figure 6-19
8. Grasp the belt at the two locations shown in
Figure 6-17 and pull the belt over the left spindle
pulley.
9. Release the belt.
10. Install the deck covers. Figure 6-16
11. Attach the negative battery cable.

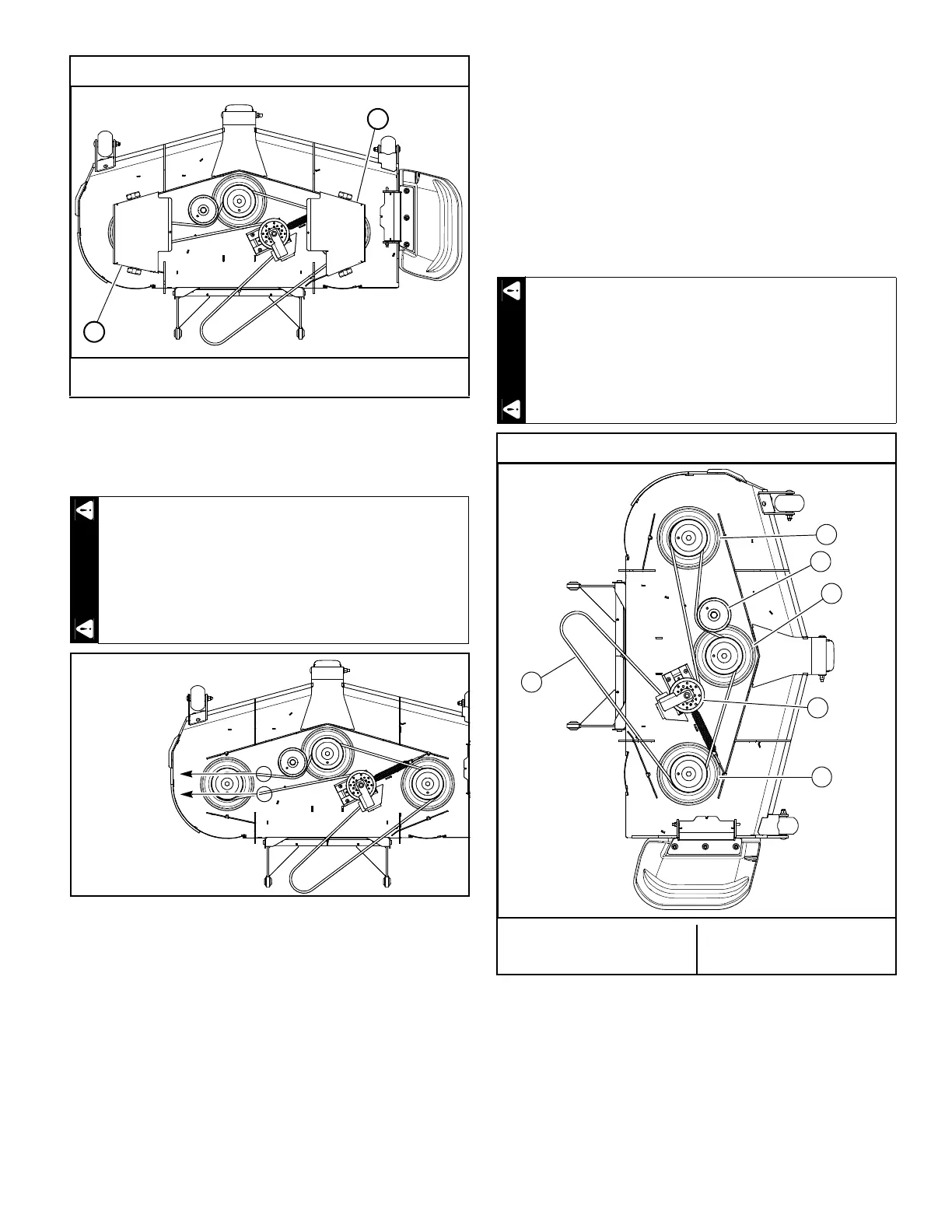

48”/52”/60” Decks
A. Deck covers
Figure 6-16
Keep hands clear when pulling belt over the pulley
to prevent pinching. Do not get hand or fingers
between pulley and belt.
Figure 6-17
Grasp the belt
here and pull
over the pulley.
Never operate the mower without the deck covers
in place.
48”/52”/60” Decks
A. Spindle pulleys
B. Deck drive belt
C. Idler pulleys
Figure 6-18
