unseated when the steering control levers are not in the park
brake position (park brake switches are disengaged) or the deck
clutch switch is engaged the engine will stop.
The following steps are the correct procedures for starting the
engine. If difficulty is encountered, contact the Hustler
®
Dealer
in your area.
1. Before starting mower each day, perform daily pre-
operation checking. (See Safety Start Interlock System
section.)
2. Make sure the steering control levers are in the park
brake position and deck clutch switch is disengaged.
Only start the engine from the operator’s position.
3. Use choke when engine is cold, or if warm engine fails to
start within 5 seconds of cranking. Avoid flooding and
operate engine without choking as soon as possible.
4. Set throttle at approximately 1/2 open position.
5. Insert key in ignition switch and rotate full clockwise to
engage starting motor. Release key when engine starts.
IMPORTANT: The engine starter should not be operated
for periods longer than 30 seconds at a time. An interval
of at least two minutes should be allowed between such
cranking periods to protect the starter from overheating
and burn-out.
6. Perform test to make sure safety start interlock system is
operating properly. Refer to Safety Start Interlock System
section.
7. As soon as engine begins to run, check to make certain
the oil warning light is off. If not, stop engine
immediately and check for the cause.
8. Allow the engine to idle a few minutes before advancing
the throttle and/or engaging the deck clutch.
Stopping the Engine
Use the following procedure to shut off the engine after
operating the equipment.
1. Place the steering control levers in the park brake
position.
2. Lower the main deck to the mowing position. The side
decks must be in either the mowing position or the raised
and latched position.
3. Throttle the engine back to low idle, then disengage the
deck clutch. Refer to Mower deck operation section for
more details.
4. Let engine run at low idle for a couple of minutes.
5. Rotate ignition key counter-clockwise to the “OFF”
position. Remove the key from switch before leaving the
mower.
Moving Mower With Stalled Engine
If it becomes necessary to move the mower when the engine
is inoperative, the hydraulic pumps are equipped with bypass

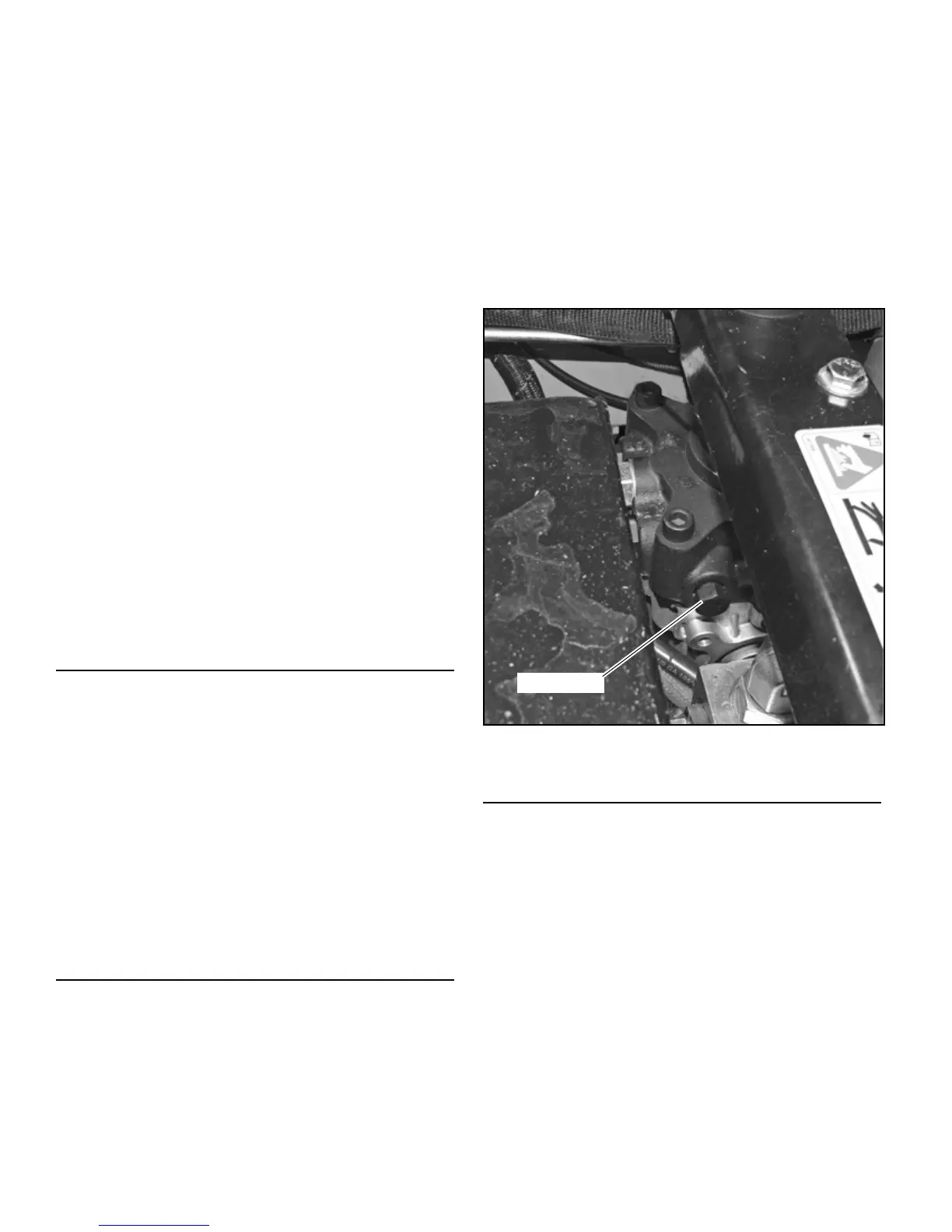

valves. Figure 3-6
Before moving the unit, turn bypass valves counter clockwise
one-half to one revolution. The valve on each hydraulic pump is
located at the front left side and is identified as a hex stud.
The steering control levers must be placed in the neutral
position, to release the park brakes, so that the mower can be
moved.
Do not tow the machine. Move it by hand or use a winch to
load on a trailer for transporting.
When transporting on another vehicle, the mower should be
facing forward and it must be secured.
Always make certain the two bypass valves are returned to
their operating position before running the mower following
repairs.
ROPS (Roll Over Protective Structure)
A ROPS may minimize the chance of injury or death from
rollover.
A ROPS, when used with seat belt, is effective in reducing
injuries during unit overturn accidents. Overturning the unit
without a ROPS or without ROPS locked in the raised position
can result in serious injury or death. Figure 3-7
The two-post ROPS can be pivoted down by removing the
right and left retaining rings (Figure 3-7) and pulling out on the
clevis pins so that the machine can operate under low hanging
tree limbs or other obstructions. Do not wear the seat belt when
the ROPS is in the lowered position. Use the ROPS in the
