Anti-scalp wheels
Anti-scalp wheel kits are standard on some TrimStar units.
These anti-scalp wheels are designed to minimize scalping
when mowing on rough, uneven terrain.
After setting the cutting height, adjust the anti-scalp wheels so
they extend below the deck but do not contact the ground.
They should always be at least 6.35mm to 19.05mm below the
deck. With the unit sitting on a flat level surface, the wheel
position can be adjusted up or down as needed from 19.05mm to
44.45mm below the blade surface. Move the wheels up or down,
in 12.70mm increments, using the different axle mount holes in

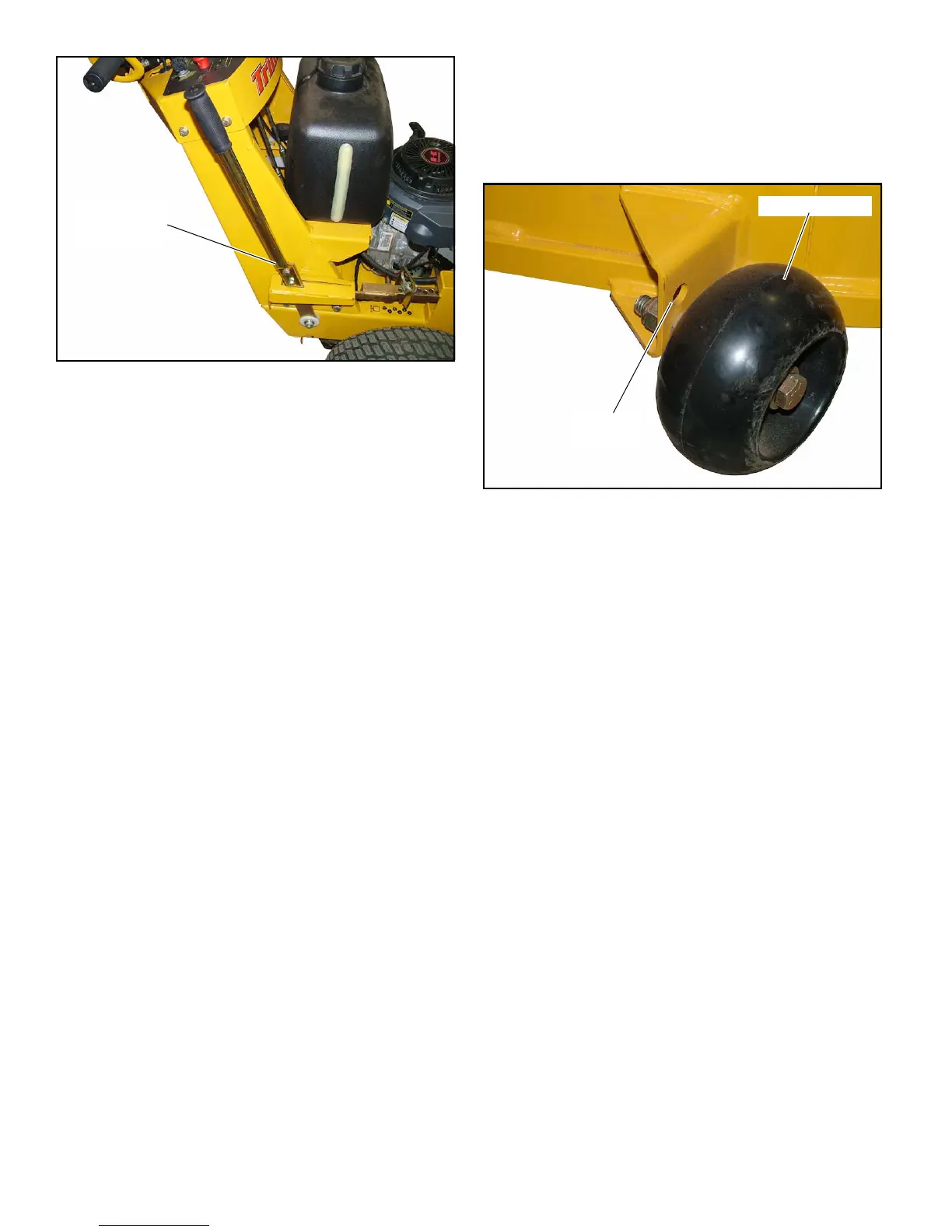

the wheel mount bracket. Fig. 3-13
When adjusting the rear anti-scalp wheels, the wheel should
be in the same axle mount hole as the front anti-scalp wheels.
Fig. 3-12
Deck lift lever
in the transport
position
Fig. 3-13
Anti-scalp wheel
Adjusting
holes
