Hy-Gain VB-25FM - Page 5

Ite
Item
No. Descri
p
tio
n
No. Descri
p
tio
n
1 Tube, Boom, aluminum, 11/4
11
x 75" 16 Bolt, hex head, 1/4"-20 x
4Clam
p
, Boom-to-Mast 21 Nut, hex, 5/16"-18
5 Backup Plate, Boom-to-Mast 23 Nut, hex, 1/4"-20
13 Ca
p
lu
g
, 11/4" 24 Lockwasher, s
p
lit, 5/16"
15 U-Bolt
,
5/16"-18 x 3 5/8" 26 Lockwasher
,
internal
,
1/4"

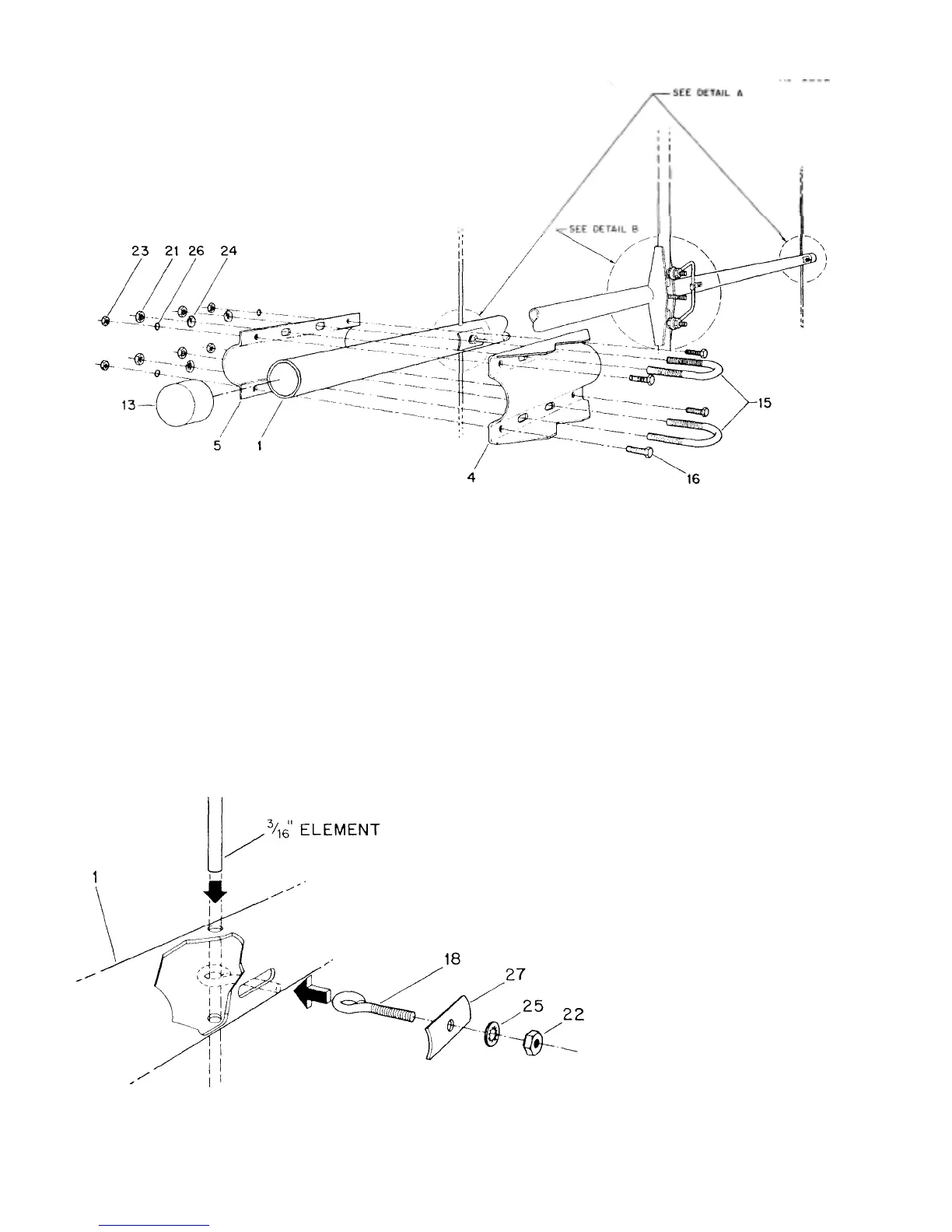

Figure 5 Boom-to-Mast Clamp
Assembly
Item
No. Description
1 Tube, Boom, aluminum, 1 1/4" x 75"
18 Eyebolt, 5/16", #10-24 x 1 1/2"
22 Nut, hex, #10-24
25 Lockwasher, internal, #10
27 Half-Washer, aluminum
Figure 5 - Detail A Parasitic
Element Attachment
