Performing maintenance / inspection
FAM 15/30/50/70 ATEX
en(us)
Page 84 / 96
BeWa FAM15-70 Atex 3193049h en(us) 2013-06-19 2013-06-19
Replacing filter element on the oil mist separator

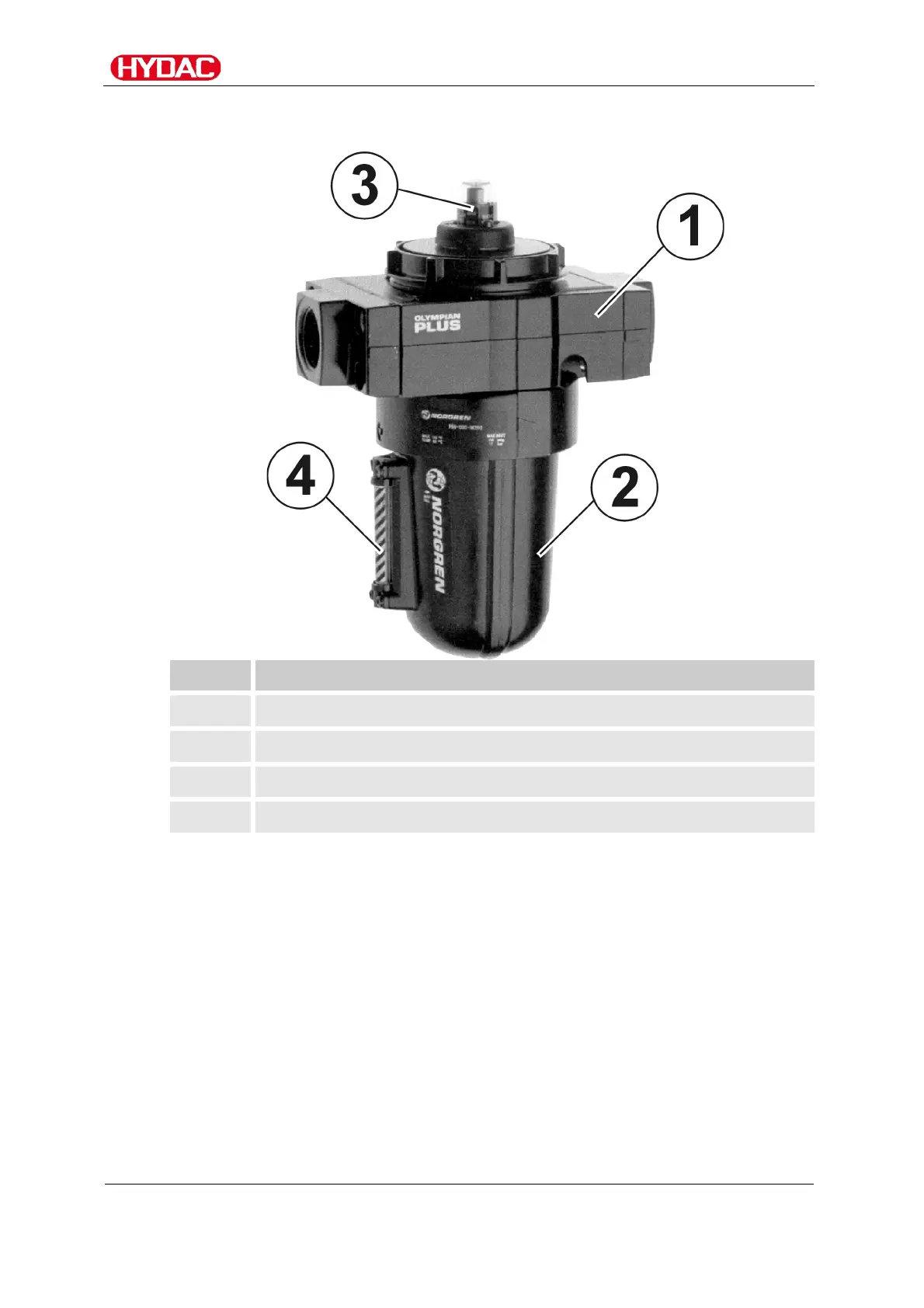

Item Name
1 Separator head
2 Separator pot
3 Clogging indicator
4 Filling level display
The oil mist separator is located between the vacuum column and the
vacuum pump.
A filter element is used to retain the oil mist and the oil in the oil mist
separator and the oil is collected in the separator pot, where it is continuously
suctioned off and returned to the vacuum column.
The filter element (for part-no., see replacement parts list) is to be replaced
on a regular basis in accordance with the maintenance schedule.
The clogging indicator (3) of the oil mist separator is not functioning.
