Setting Up for a Two- or Four-Finger Spray Gun

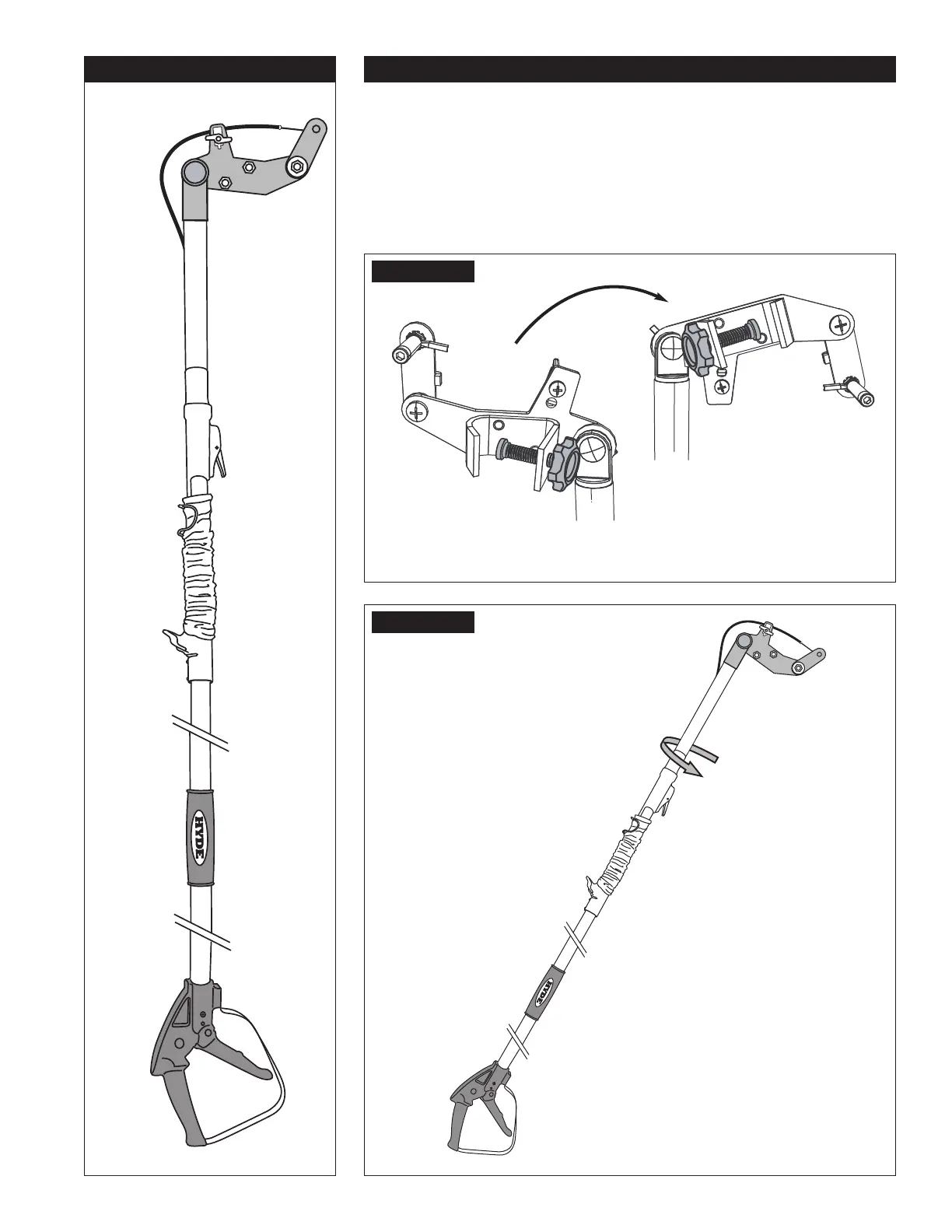

Figure 1

Figure 2

Components and Terminology

Gun Mount

Connector

Locking

lever

Fluid

hose clip

Locking

collar

knob

Locking

collar

knob

Trigger

Extension

tube

Two-finger gun setup

Four-finger gun setup

1. Push in spring loaded button and rotate the head assembly to switch between a

two- or four-nger spray gun setup (Figure 1).

2. Release button to hold the head in place.

3. Loosen the locking collar knob and rotate the pole to properly orient the gun

mount for spraying (Figure 2).

4. Tighten locking collar.

NOTE:

Gun mount should

point in the same

direction as trigger
