HYDRA-RIB 211348D - Leveling Instructions; Outside View

12
P/N 211348D 01/03
19.
20.
21.

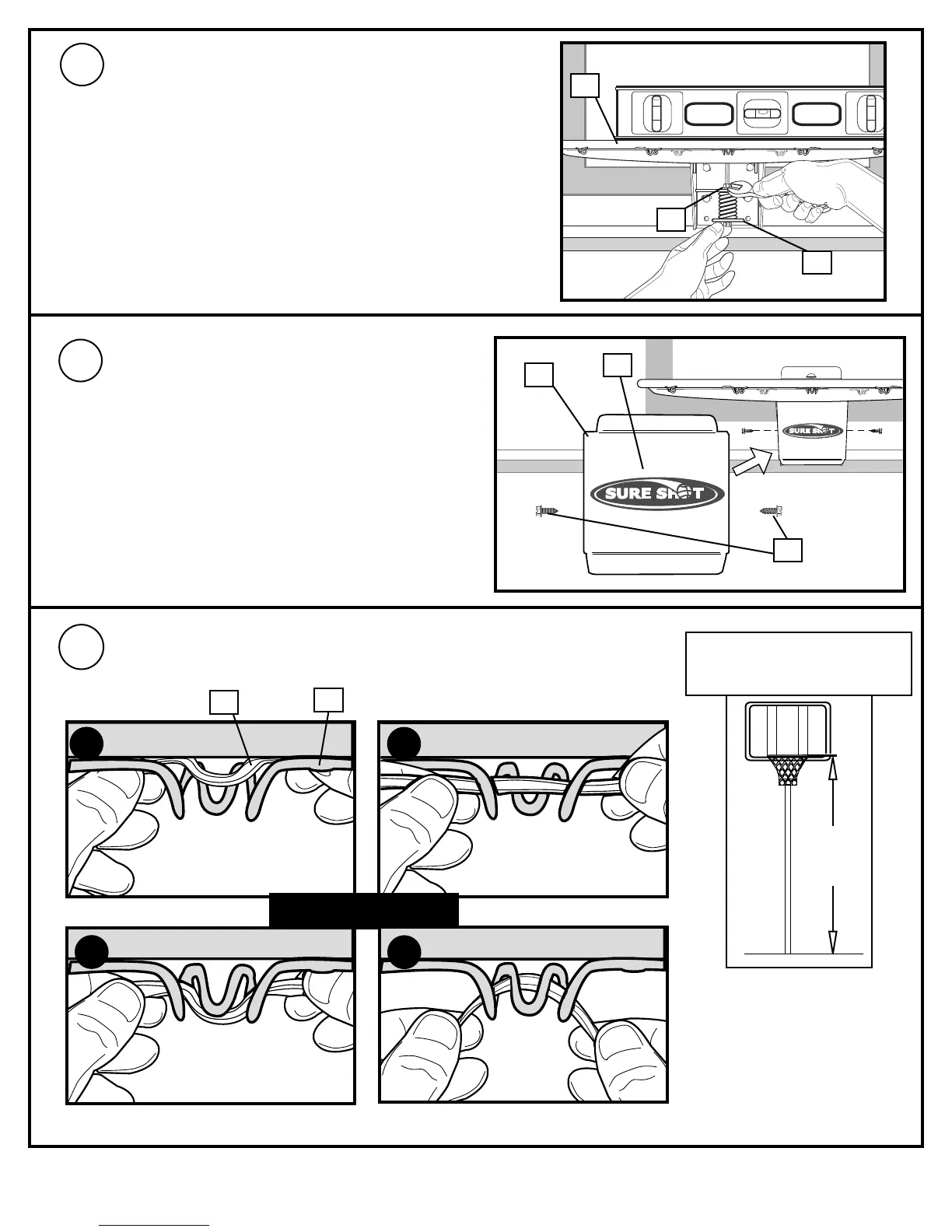

Apply logo label (33) to cover plate (31). Install
cover plate (18) on rim (25) using self tapping
screws (32) as shown.
LEVELING INSTRUCTIONS:
Place level on rim (25) and adjust nut (42) until
level. Tighten nut (30) to set rim tension for
playing.
Secure net (34) to
rim (25).
1
2
3
34
25
NOTE ORIENTATION OF COVER PLATE
OUTSIDE VIEW
4
32
31
33
42
25
30
10 feet
(3.05 m)
NOTE: Official rim height is
10 ft. (3.05 m) from top of rim
to playing surface.
