Ensure ground is level with playing
surface, then dig pole hole.
GROUND
SURFACE
PLAYING
SURFACE
1.

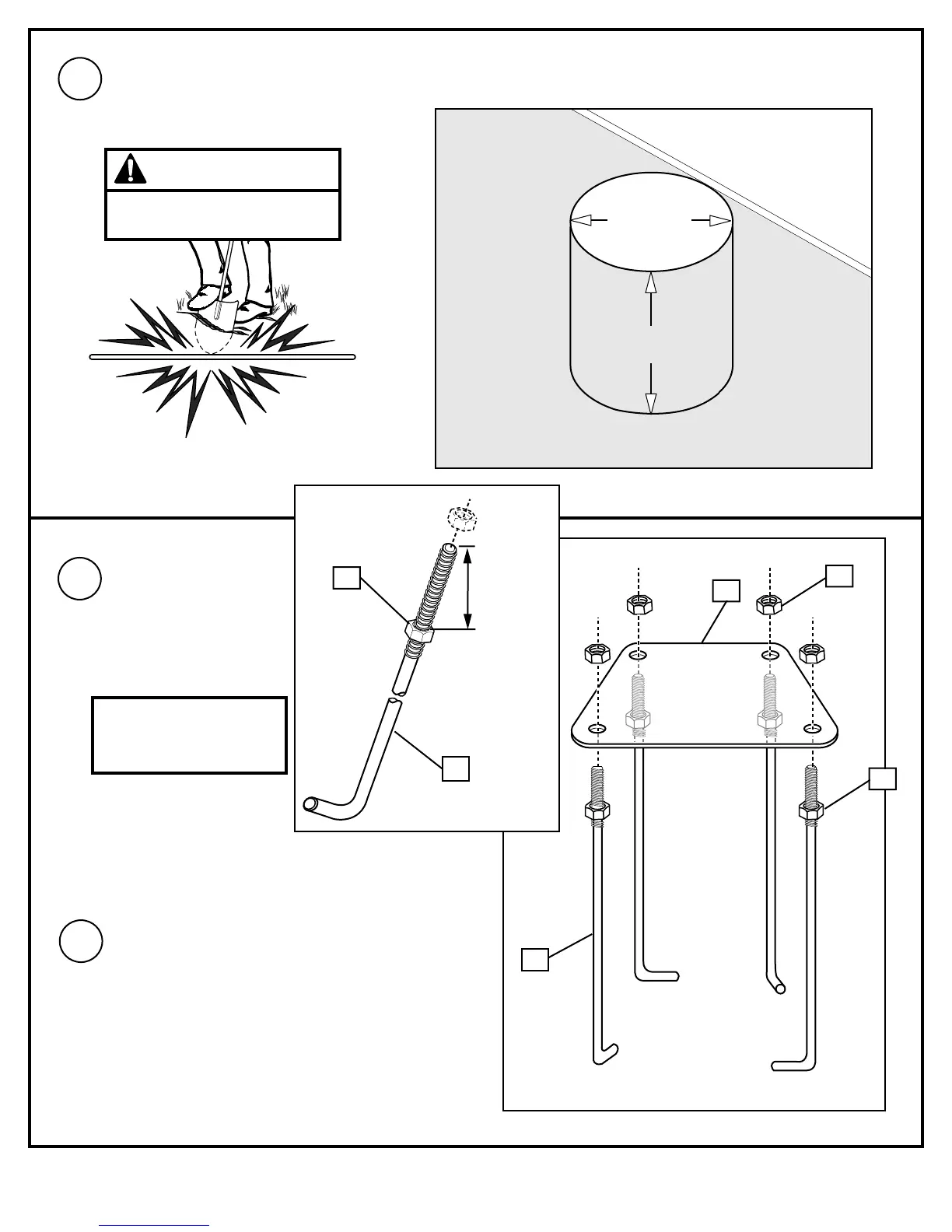

Install threaded ends of J-bolts (1) through holes in
mounting plate (3) and secure as shown.
NOTE: Make sure J-bolts (1) are in the illustrated
position.
NOTE: Nuts on the top of plate are used for leveling
the pole after system is fully assembled.
2.
3
2
2
2
1
3.
1
CONTACT UTILITIES
BEFORE DIGGING.
Install nut (2) to J-bolt (1)
as shown. Repeat
procedure for other three
J-bolts (1).
To Next Page
