HYDRA-RIB 211348D - Page 5

5
01/03 P/N 211348D

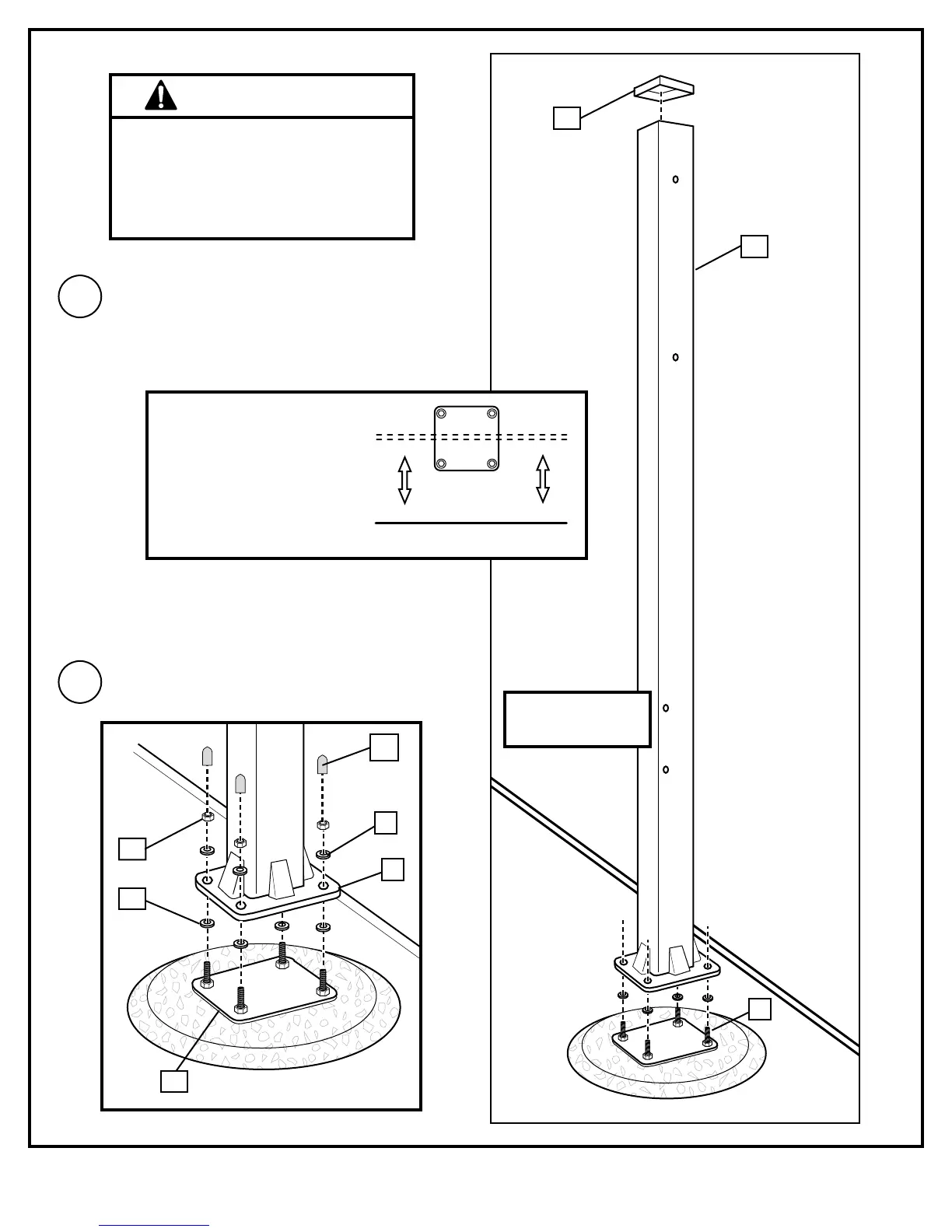

Upright pole (5). Assemble lower pole flange
onto protruding J-bolts (1) as shown. The
flange will then rest on the nuts (2) from Step 2.
Secure pole (5) flange to mounting plate
(3) as shown. Tighten completely.
6.
7.
5
TWO PERSON MINIMUM REQUIRED
FOR THIS PROCEDURE. NOT
FOLLOWING RECOMMENDATION
MAY RESULT IN SERIOUS BODILY
INJURY AND/OR PROPERTY
DAMAGE.
WARNING
PLAYING SURFACE
PLAYING
SURFACE
IMPORTANT!
Holes in pole must be parallel
with playing surface.
4
38
3
7
6
Note: Offset holes go
to back of system.
4
5
1
