SYSTEM INSTALLATION
3
Installation Considerations
Plumbing Considerations
1. The Tranquility system should only be plumbed using Schedule 40, rigid PVC pipe to assure
proper plumbing drainage and pump priming.
A 1” x 1 ½” union disconnect is installed on the discharge/outlet port of the Tranquility System to
allow for easy removal should service ever be required. Disassemble the fitting prior to gluing to
assure that excess glue does not enter the fitting.
Discharge/Outlet Plumbing
3. Return plumbing can utilize 1-3 return fittings depending upon individual fitting flow
capabilities.
Mount the Tranquility System to a firm mounting platform.
A 1” union disconnect is installed/glued on the suction/inlet port of the Tranquility System to
allow for easy removal should service ever be required. Disassemble the fitting prior to gluing to
assure that excess glue does not enter the fitting.
Install the suction fitting (not included) at least 1” below the centerline of the Tranquility System
suction/inlet port to allow for proper drainage.
Mounting/Location
Suction/Inlet Plumbing
Note: The Tranquility System can be installed on either right or left hand tub installations by
simply rotating the unit (there is no front or back).
4. The Tranquility unit requires a minimum flow rate of 5 gpm and a return line back-pressure of
1.9 psi to operate properly.
2. Due to the low flow of the Tranquility pump(6-10 gpm), it is recommended to not use
plumbing larger than 1” PVC.
Install the return fitting/s (not included) at least 1” above the centerline of the Tranquility System
discharge/outlet port to allow for proper drainage and priming.

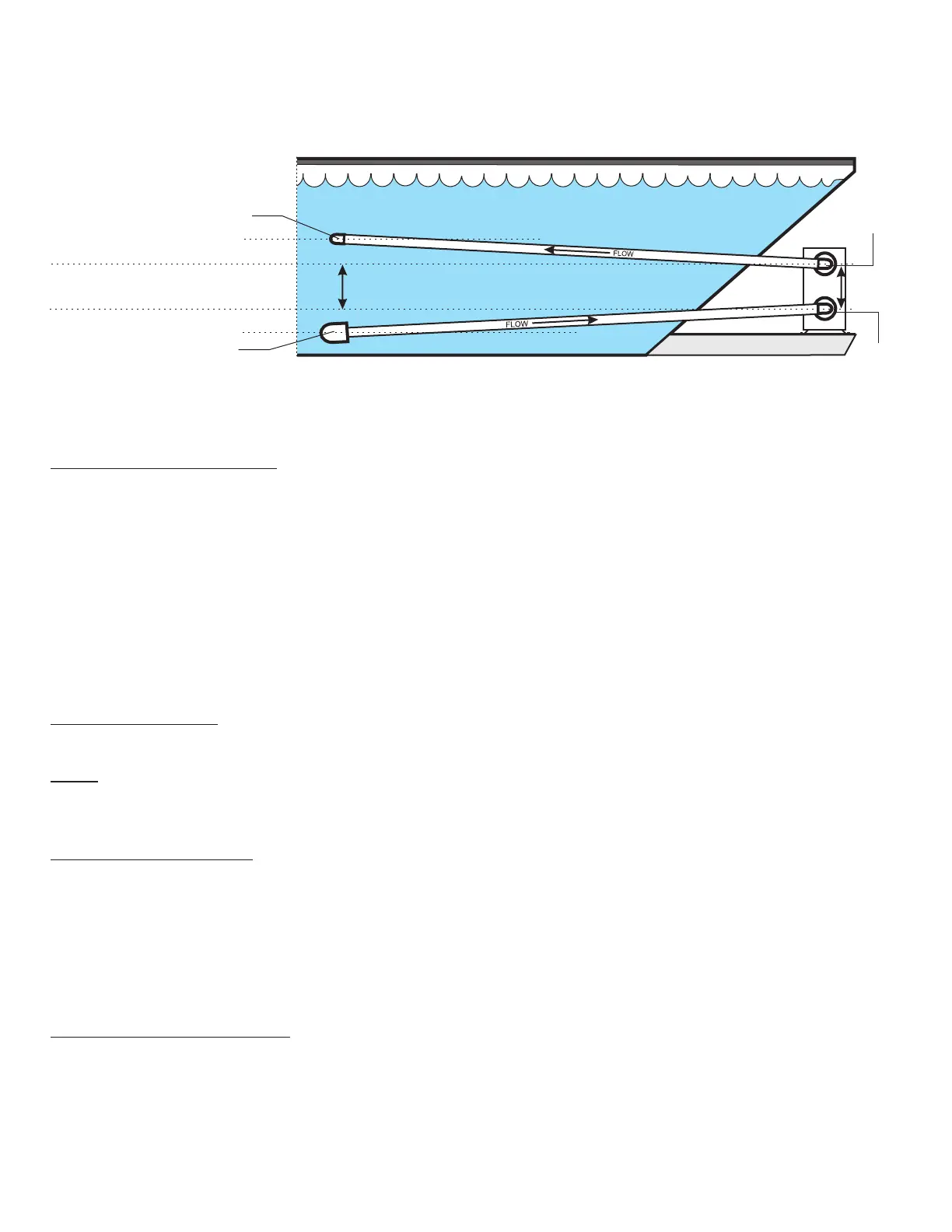

3 ¾”
3 ¾”
SUCTION /
INLET
DISCHARGE /
OUTLET
INLET CENTERLINE
OUTLET CENTERLINE
ABOVE OUTLET CENTERLINE
INSTALL AT LEAST 1”
BELOW INLET CENTERLINE
INSTALL AT LEAST 1”
SUCTION AND RETURN FITTINGS MUST BE AT LEAST 5 ¾” APART AS NOTED ABOVE.
SUCTION
RETURN
