4. Installation and Commissioning.
4.1 Installation
4.1.1 Sensor ring installation
(Note: The flame torch and ignitor is not the parts of the CHC-400)

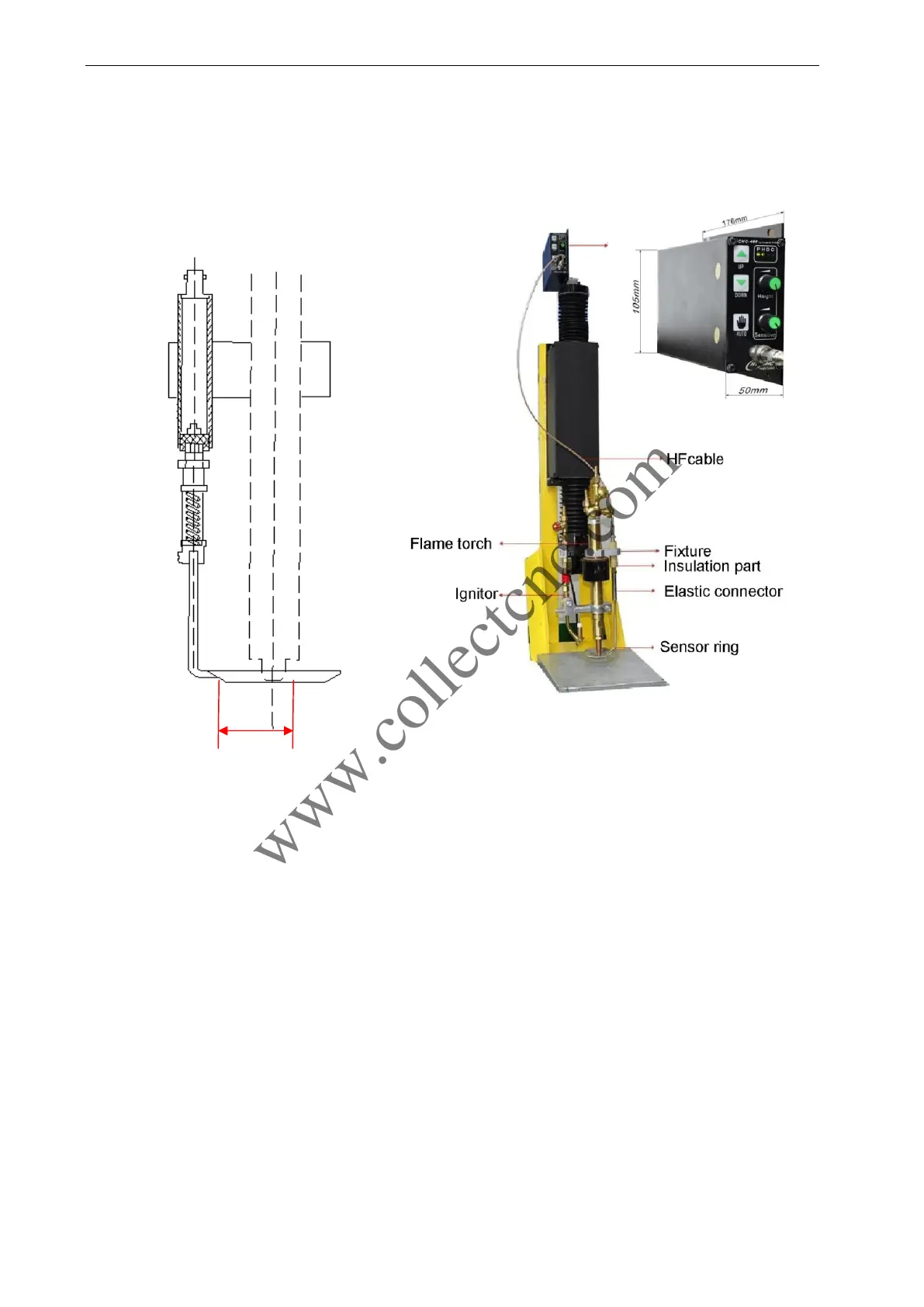

Figure 4-1 flame cutting installation
1.1 Installation of sensor ring: According to our years practice, sensor ring should be
installed lower about 1∽2mm than torch head to avoid the edge effect during cutting edge of
workpiece, and it anti-collision more effectively, as showed in Figure 4-1.
1.2 While on plasma cutting, the sensor ring shall be installed little higher than the torch
head, to avoid the effect of plasma arc voltage, and it needs a special insulation part supplied
from HYD. Please inform us when order it.
