Hydthc CHC-400 User Manual

- 3 -
1.2 Basic specs
Power supply：
CHC-400：AC24V±10%，50Hz/60Hz；or DC20V~36V
DC motor used on lifter：
CHC-400：DC24V；
Motor drive: PWM
Output current:
CHC-400：1A-4A，max：100W；
Work temperature：THC-10∽60℃；
HF cable：-10∽200℃；
Sensor parts：-10∽350℃。
Accuracy：±0.1mm (matters with lifter design)；
Auto height range：from cutting material surface 1mm — 25mm.
HF-cable: 800mm∽1800mm.

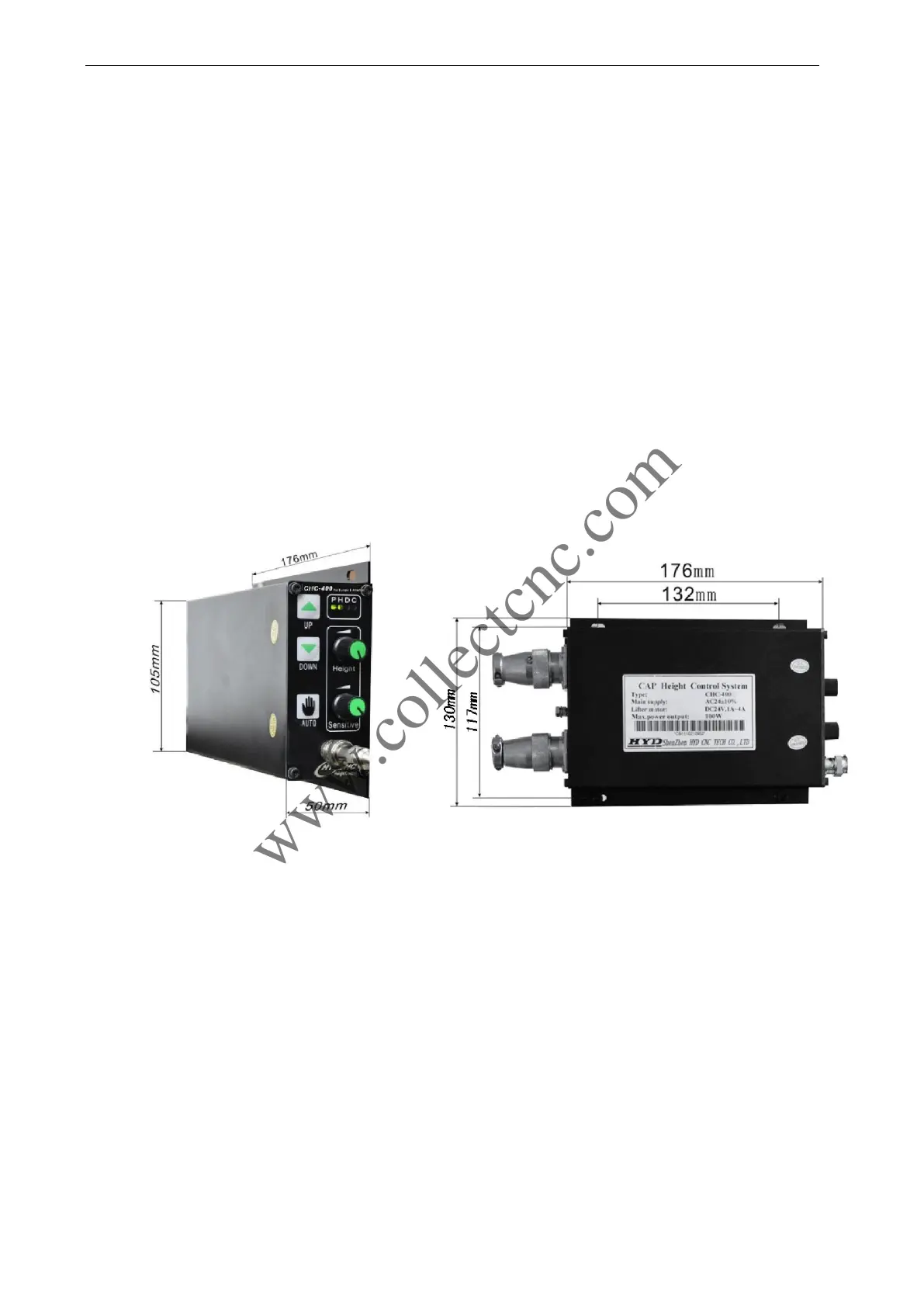

Product size shows as figure 1-1
L*W*H：176mm * 105mm * 50mm.
Figure 1-1
1.3 Work elements
CHC-400 work elements: It detects the distance between Sensor ring and the cutting material
(steel, metal material) via detecting the capacitance between the two parts, and keeps the
two parts at a set distance by control the DC motor move. CHC-400 is a closed-loop control
system, with 4 parts: Position Signal Sensing, Signal Process, Logic Control and Motor Drive.
