HYQUEST SOLUTIONS PTY LTD
Tipping Bucket Raingauge TB3 100-05 Issue 12: 29/7/2014
2x Stainless Steel
M6 Washer
2 x M6 Nuts
2 x Plastic Washers
Height: 330 mm
Weight: 3 kg
Packed Dimensions: 24cm L x 24cm W x 42cm H x 5 kg (0.03m
3
)
IV. INSTALLATION

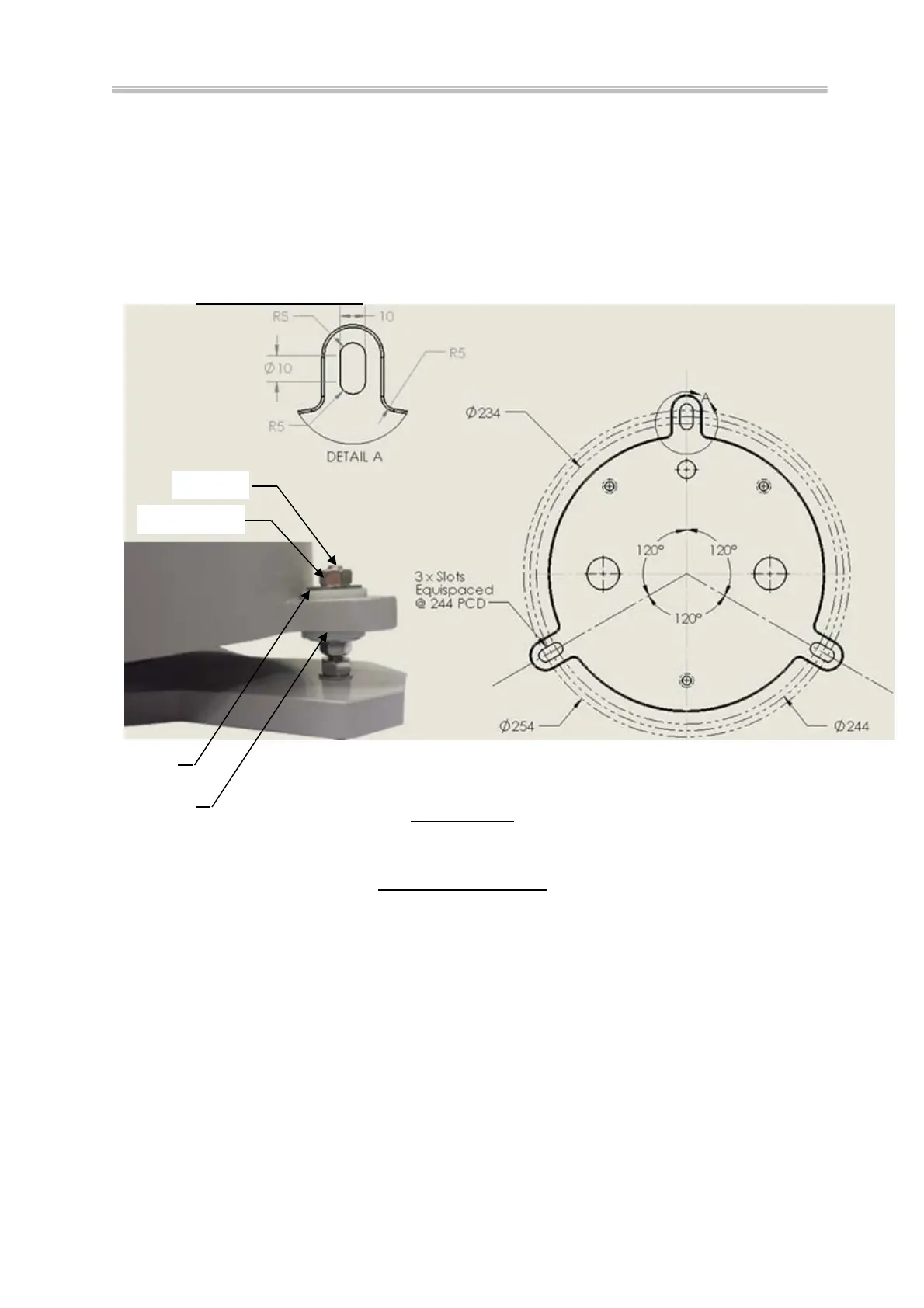

DIAGRAM 1
Important Notice:
The 6 plastic washers are supplied with each rain gauge for the following reasons:
1- Avoid scratching the paint on the base and expose the base to an external harsh and
corrosive environment.
2- Avoid the stainless steel bolt and washers from damaging the paint on the aluminium
base and creating galvanic corrosion between stainless steel and aluminium.
Please note:
Stainless Steel bolts and nuts are part of the Mounting Plate Part No. TB334. This part is
supplied as an accessory and not part of the rain gauge kit.
M6 Bolt
To Next Page
