4500 SRM 971 Single-Reach Scissor Arms
1. CAPSCREW, LOCKWASHER,
AN
D LOCTITE
®
2. END CAP
3. THRUST WASHER
4. TH
RUST WASHER
5. RH OUTER ARM ASSEMBLY
6. LH OUTER ARM ASSEMBLY
7. BEA
RING AND SHIM
8. BEARING
9. LUBE FITTING
10. MAIN BUSHING
11. THRUST WASHER
12. SHEAVE
13. RETAINING RING
14. FRONT ARM LOAD BEARING
AND SHIM
15. INNER ARM WELDMENT
16. BUSHING
17. BUSHING
18. PIN
19. SCREW
20. PIN
21. PIN ROD END
22. LOCK NUT
23. FITTING WITH O-RING
24. FITTING WITH O-RING
25. RH CYLINDER ASSEMBLY
26. LH CYLINDER ASSEMBLY

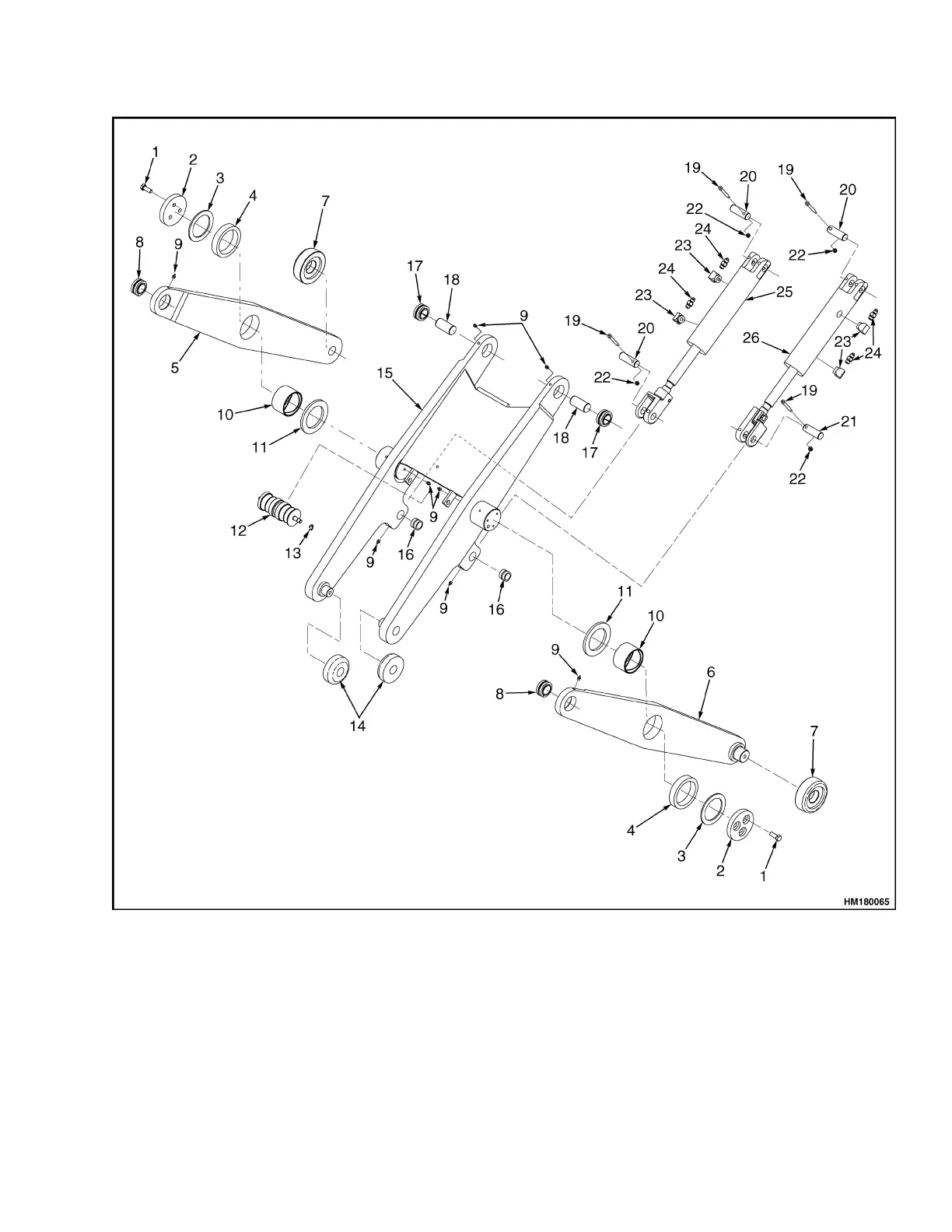

Figure 10. Single-Reach Scissor Arms
17
