Safety Procedures When Working Near Mast 4500 SRM 971

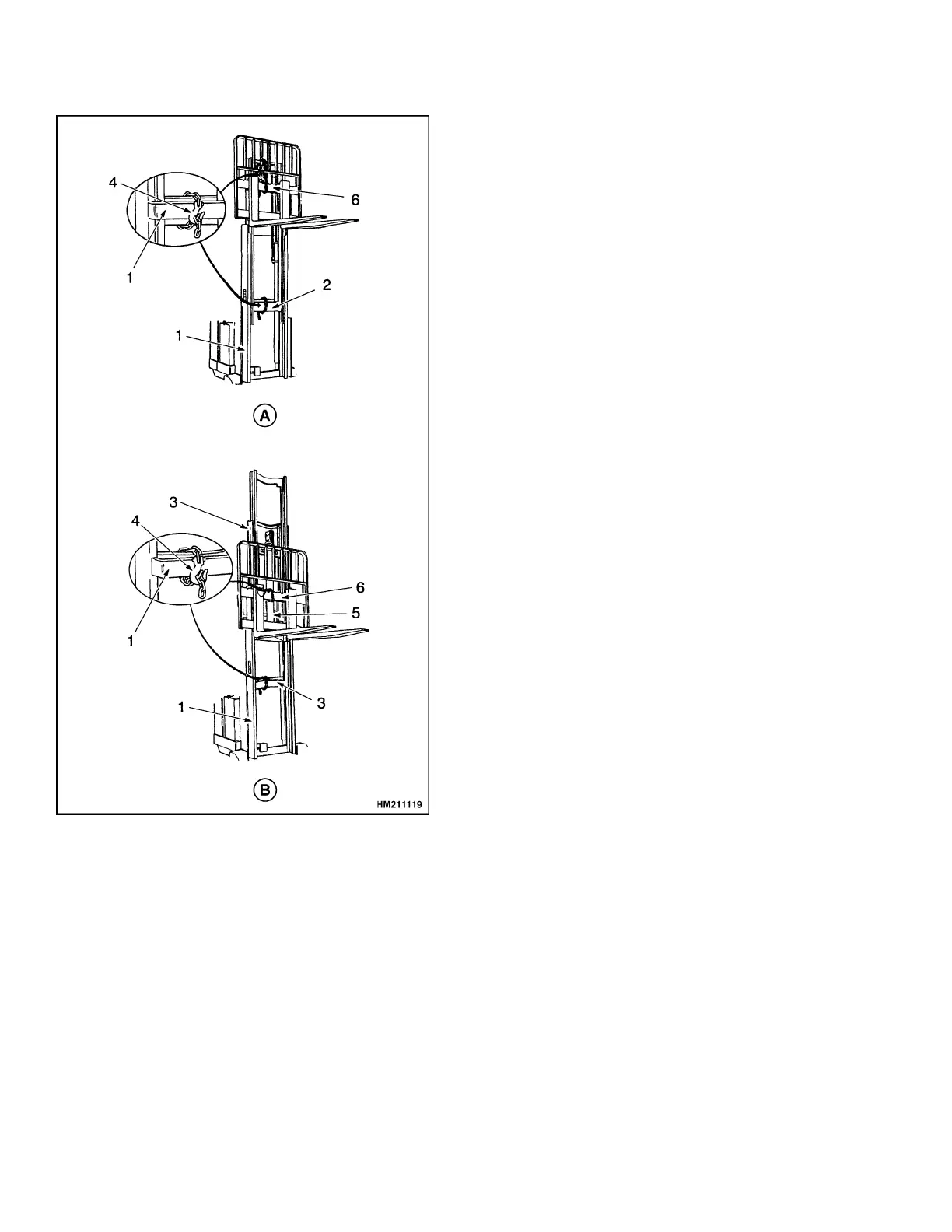

Figure 1. Safety Chain the Mast
Legend for Figure 1
A. TWO-STAGE MAST
B. THREE-STAGE MAST
1. OUTER WELDMENT
2. INNER WELDMENT
3. INTERMEDIATE WELDMENT
4. SAFETY CHAIN
5. FREE-LIFT CYLI
NDER
6. CARRIAGE
2
