WARNING
DO NOT lift both ends at once.
2.
To raise drive end of the lift truck, hook a lift
strap under bumper on both sides or hook lift
strap under drive frame cowl. See Figure 2.
3.
Install additional blocks under the frame near
the drive tire. See Figure 3.
A. TOP VIEW B. LEFT VIEW
1. DRIVE END
2. FORK END
3. STRAP

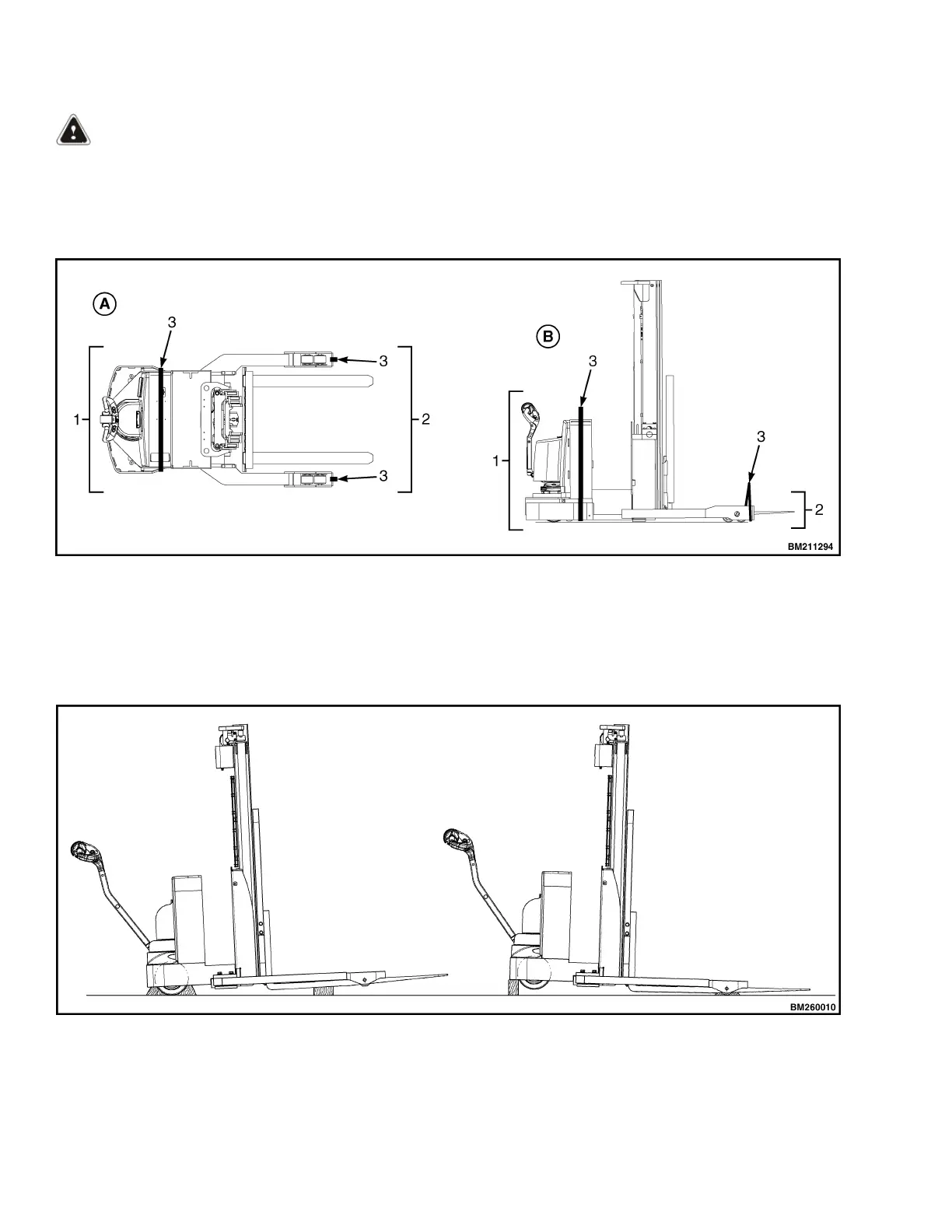

Figure 2. Lifting Points (W25-30ZA
2
)
Figure 3. Putting Lift Truck on Blocks
General 8000 SRM 1379
