Hyster C477 - Description of Operation

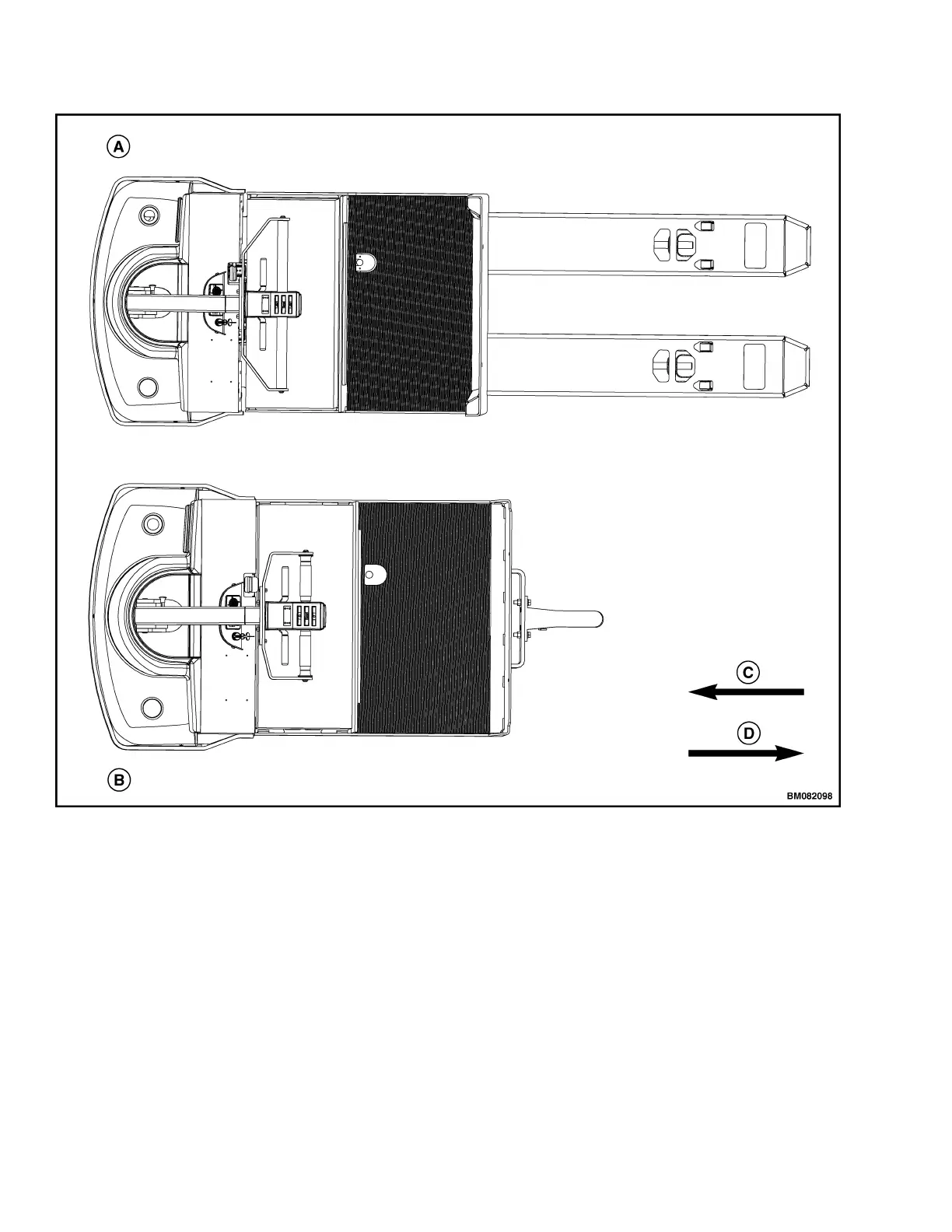

A. RH SIDE
B. LH SIDE
C. FORWARD
D. REVERSE
Figure 1. Truck Orientation
Description of Operation
This section includes information on the following
components:
• Control Handle Switches
• Hall Effect Directional/Speed Control
• Key Switch
• Parking Brake Switch
• High Speed Switch
• Hand Brake Assembly (Brake and Regen
Switches)
• Battery Discharge Indicator/Hourmeter
(BDI)
• Fuses
General 2200 SRM 1632
2
