Forks 4000 SRM 764
1. FORK
2. PIN
3. WASHER
4. WASHER
5. WASHER
6. SPACER
7. SHIM
8. PEDAL
9. PALLET GRIP
10. PAWL

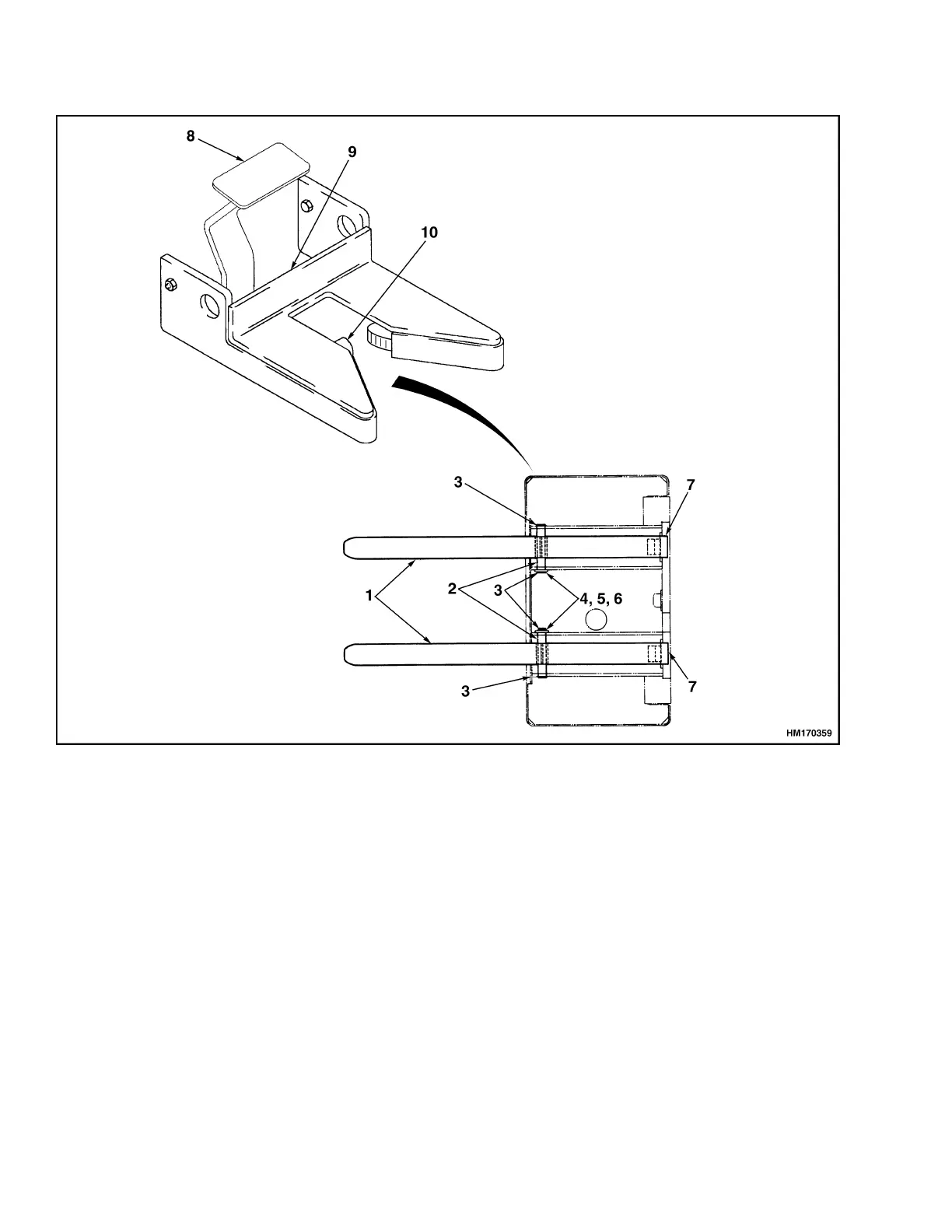

Figure 2. Forks, Pallet Grip, and Operator Platform
2
