Hyster E174 - Page 8

Operator Platform 4000 SRM 764
1. LIFT CYLINDER MOUNT
2. RETAINING RING
3. WASHER - BACK
4. RUBBER BUSHING
5. SHIMS
6. SCREW
7. LOCKWASHER
8. CYLINDER RETAINER
9. CUSHION
10. MAIN LIFT CYLINDER
11. LOCK PLATE
12. SCREW
13. LOCKWASHER
14. LIFT CHAIN
15. CHAIN ANCHOR
16. OUTER MAST WELDMENT SUPPORT

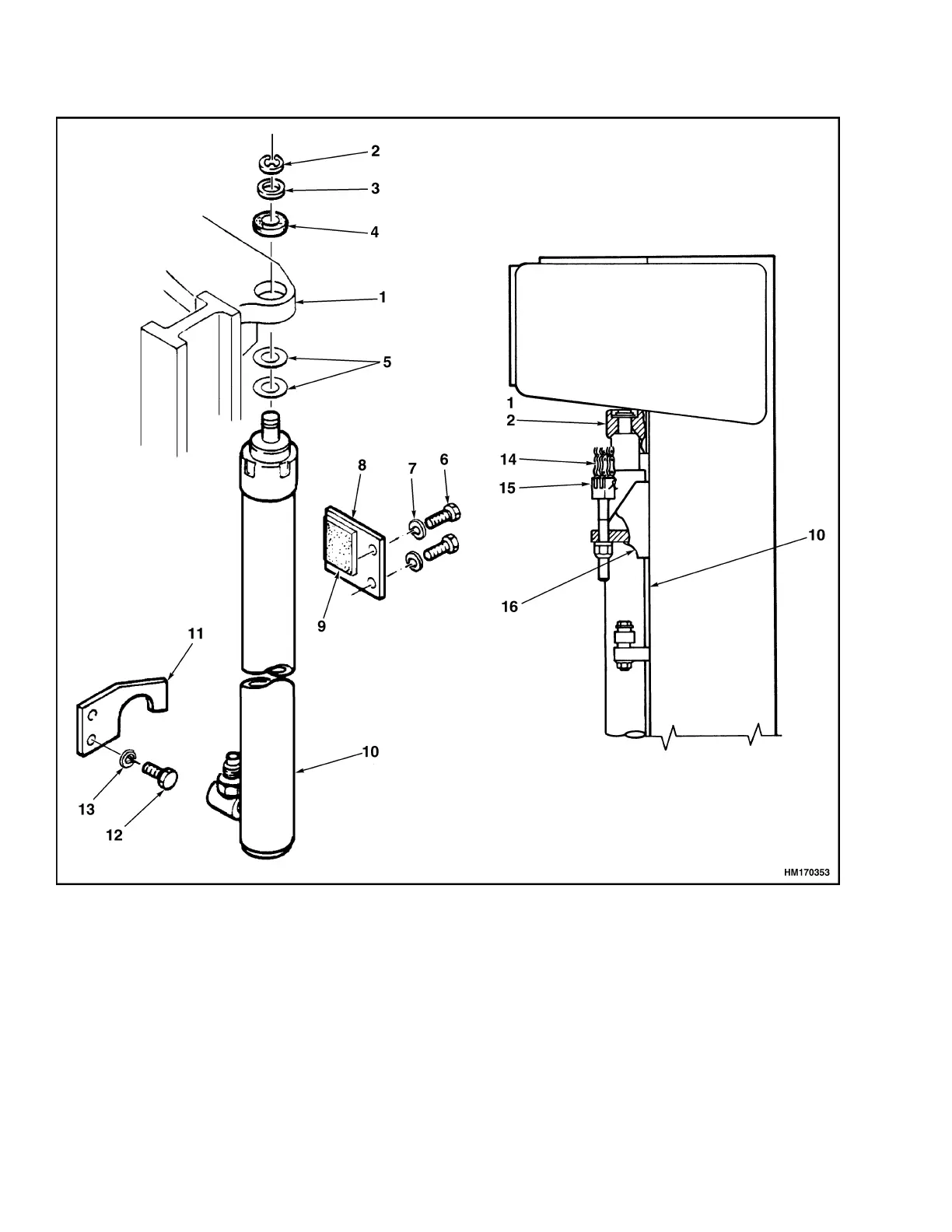

Figure 3. Disconnecting Lift Cylinders
