show that the light is good. This instrument panel has the
following components:
1. Hourmeter. The hourmeter display shows
the operating time of 0000 to 9999 hours. The time
for the traction circuit is shown for four seconds
after the lift truck has been operating and the key is
turned to the “OFF” position.
2.Voltmeter. This battery indicator has a green,
yellow and red band to indicate the voltage of the
battery. The battery must have a current draw (load)
to check the battery charge. Hold the tilt lever in the
tilt BACKWARD position and look at the indicator.
If the needle is in the red band, charge the battery.
Operating the lift truck with the needle in the red
band can decrease battery life. Continued operation
with a discharged battery can damage the battery,
motors or the contactors.
3.Warning light, parking brake indicator. The
red light is “ON” when the parking brake is applied
and the seat switch is closed. and goes “OFF’ when
the parking brake is released.
4.Warning light, brake fluid reservoir is
low. The red light is ON for approximately three
seconds when the key switch is turned to the “ON”
position and must go “OFF” during operation. If
the warning light is “ON” during operation, the
brake fluid level in the reservoir is too low.
5.Warning light, fasten seat belt. The red light is
“ON” for eight to ten seconds after the key switch is
turned to the “ON” position.

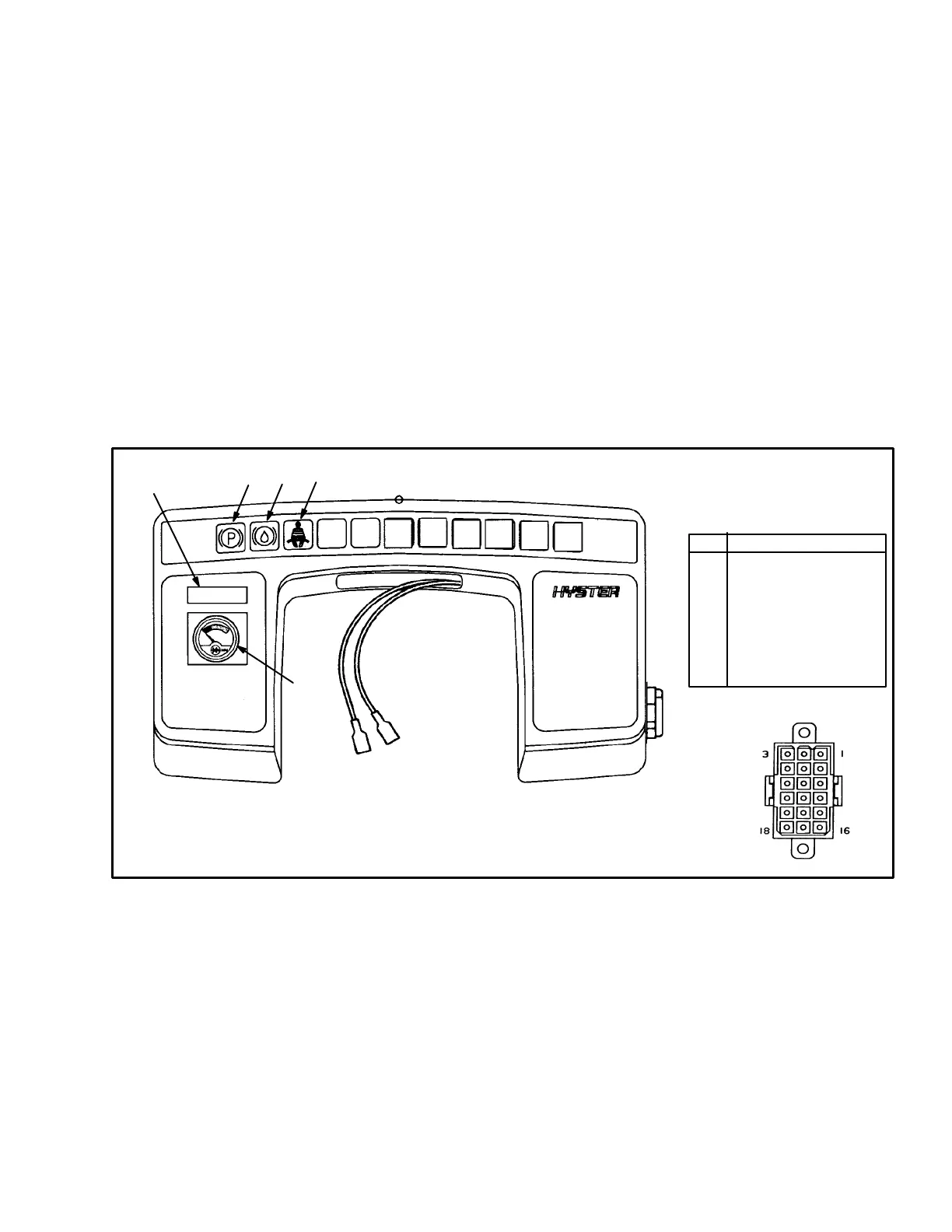

FIGURE 1 – INSTRUMENT PANEL DISPLAY AND PLUG CONNECTOR
STANDARD DISPLAY
KEY SWITCH
LEADS
RED/BRN
“IGN”
TERMINAL
BRN
“BAT”
TERMINAL
STANDARD DISPLAY
18 PIN CONNECTOR
1-11 No Connection
12 Battery Negative ()
13 Hyd. Contactor Coil
14 Brake Fluid Switch
15 Parking Brake Switch
16 Seat Switch
17 Key Switch (Ign)
18 Battery Positive ()
PIN FUNCTION
2
1
5
3
1. HOURMETER
2. VOLTMETER
3. WARNING LIGHT,
PARKING BRAKE
4
4. WARNING LIGHT, BRAKE FLUID
INDICATOR RESERVOIR IS LOW
5. WARNING LIGHT, FASTEN SEAT BELT
Premium Display (See FIGURE 2)
When the key is moved to the “ON” position, a start pro-
gram will cause each warning and indicator light to illu-
minate to show that the indicator is operating. This
instrument panel has the following functions:
1. Status Code Indicator. This indicator is
blank when the lift truck is operating correctly. The
status codes and the hourmeter values are shown on
this four-digit LED display. When a fault occurs, the
status code will be shown with a dash (–) in the left
digit position.
The hourmeter display shows the operating time of
0000 to 9999 hours. The time for the traction circuit
is shown for four seconds after the lift truck has
been operating and the key is turned to the “OFF”
position. The indicator lights for the traction motor
(5) and for the hourmeter (8) will also be
illuminated during this time. If there is an SCR
control card for the hydraulic pump motor, this time
