3
will then be shown on the hourmeter for another
four seconds. The indicator lights for the hydraulic
motor (6) and for the hourmeter (8) will also be
illuminated during this time.
2. Warning Light, Parking Brake
Indicator. The red light is “ON” when the
parking brake is applied and the seat switch is
closed, and goes “OFF” when the parking brake is
released.
If the parking brake is not
applied and the operator
leaves the seat or turns the key to the “OFF”
position, a warning buzzer will make a noise for
approximately 10 seconds.
3. Warning Light, Brake Fluid Reservoir is
Low. The red light is “ON” for approximately
three seconds when the key switch is turned to the
“ON” position and must go “OFF” during
operation. If the warning light is “ON” during
operation, the brake fluid level in the reservoir is too
low.
4. Warning Light, Fasten Seat Belt. The red
light is “ON” for eight to ten seconds after the key
switch is turned to the “ON” position.
5. Warning Light, Motor Brushes are
Worn. When the sensor for brush wear closes,
this warning light and the indicator light for the
motor that has the problem will both illuminate.

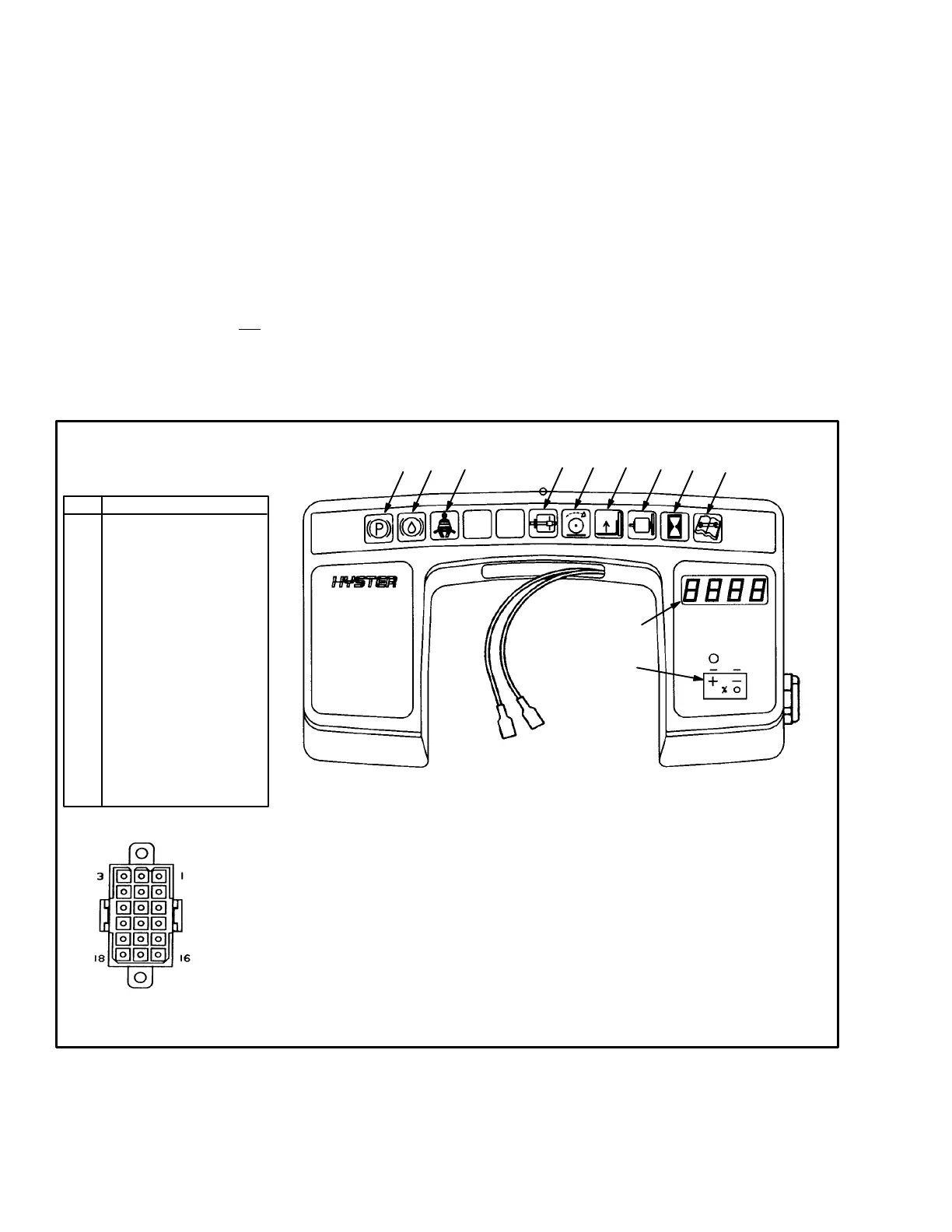

FIGURE 2 – INSTRUMENT PANEL DISPLAY AND PLUG CONNECTOR
PREMIUM DISPLAY
KEY
SWITCH
LEADS
RED/BRN
“IGN”
TERMINAL
BRN
“BAT”
TERMINAL
PREMIUM DISPLAY
18 PIN CONNECTOR
PIN FUNCTION
2
1
3
4
56
7
8
9
10
11
1. STATUS CODE INDICATOR
2. WARNING LIGHT, PARKING BRAKE INDICATOR
3. WARNING LIGHT, BRAKE FLUID RESERVOIR IS LOW
4. WARNING LIGHT, FASTEN SEAT BELT
5. WARNING LIGHT, MOTOR BRUSHES ARE WORN
(TRACTION OR LIFT PUMP)
6. INDICATOR LIGHT, TRACTION MOTOR
7. INDICATOR LIGHT, LIFT PUMP MOTOR
8. WARNING LIGHT, MOTOR TEMPERATURE OVER LIMIT
(TRACTION OR HYDRAULIC)
9. INDICATOR LIGHT, HOURMETER
10. WARNING LIGHT, SERVICE INTERVAL
11. INDICATOR LIGHT, BATTERY
1 Traction Card PY 5
2 Pump Card PY 5
3 Traction Card PY 1
4 Traction Card PY 2
5 Traction Card PY 3
6 Pump Card PY 1
7 Pump Card PY 2
8 Pump Card PY 3
9 Traction Card PY 4
10 Pump Card PY 4
11 No Connection
12 Battery Negative
13 Park Brake Switch
14 Brake Fluid Switch
15 Lift Interrupt
16 Seat Switch Input
17 Key Switch (Ign)
18 BDI Positive
