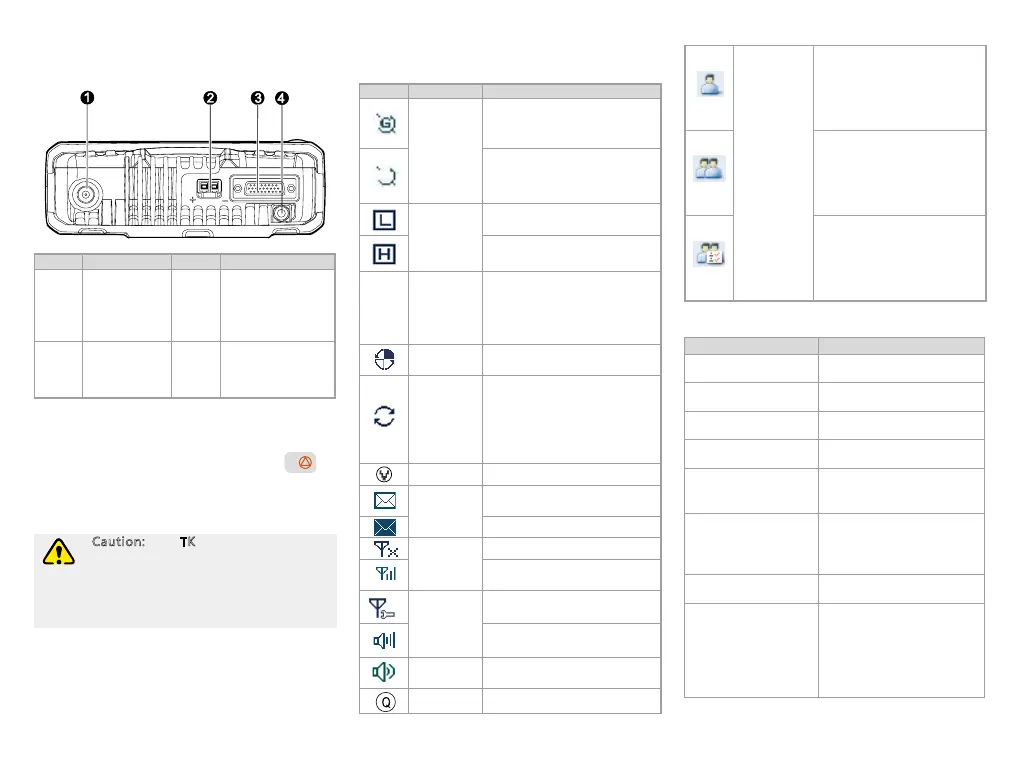

Hytera MD785G User Manual

3
Rear Panel
No. Part Name No. Part Name
1
RF Antenna
Connector
(BNC
female)
3
Accessory
Connector
2 Power Inlet 4
GPS Antenna
Connector (SMA
female)
Programmable Keys
For enhanced convenience, you may request your
dealer to program the P1, P2, P3, P4, and TK (
) as
shortcuts to certain functions. Please refer to the Feature
Description and Operation Manual along with the product
for more details.
Caution: The TK key is programmed
with emergency feature by default
(short press: Emergency On; long press:
Emergency Off). It is programmable by
your dealer.
LCD Icon
Icon Name Radio Status
GPS Icon
The GPS feature is active,
a n d v a l i d G P S d a t a i s
received.
The GPS feature is active,
bu t no valid G PS data is
received.
TX Power
Icon
Low TX power for the current
channel.
High TX power for the current
channel.
TM
Operation
Mode
Icon
Trunking Mode: In this mode,
the radio communicates with
other radios via the trunking
system.
Roam
Icon
The radio is roaming.
Hunt Icon
The radio is hunting. This
icon will not appear during
t h e B a c k g r o u n d H u n t,
HomeStation Hunt or Multi-
site Handover.
VOX Icon The VOX feature is active.
Message
Icon
N e w m e s s a g e/ u n r e a d
message.
Inbox is full.
RSSI
Icon
No signal.
More bars indicate stronger
signal strength.
Knob
Operation
Mode
Icon
The knob is used for selecting
the group currently.
The knob is used for adjusting
the volume currently.
Speaker
Icon
The speaker is unmuted.
LQO Icon The LQO feature is active.
Call/
Contact
Icon
● Indicates a private call
in progress.
● Indicates a private
contact in the contact
list.
● Indicates a group call
in progress.
● I n d i c a t es a gr o u p
contact in the contact
list.
● Indicates an all call in
progress.
● Indicates an all call
contact in the contact
list.
LED Indicator
LED Indication Radio Status
The LED indicator
flashes green.
Powering on
The LED indicator
flashes green slowly.
Standby
The LED indicator
glows green.
Receiving
The LED indicator
glows red.
Transmitting.
The LED indicator
flashes red.
Establishing a call (the LED
indicator on the calling radio
flashes).
The LED indicator
flashes orange rapidly.
Establishing a Full Off Air Call
Set-Up (FOACSU) (the LED
indicator on the cal
led radio
flashes)
The LED indicator
flashes orange slowly.
Hunting
The LED indicator
glows orange.
Call hung period. No voice is
being transmitted or received
on the traffic channel during a
call. Within such period, you
can hold down the
PTT
key to
talk to the other party.
