Hytera PD505 - Quick Reference Guide www.ninehundred.co.uk 2
HYTERA PD505
QUICK REFERENCE GUIDE
3
Product Overview
Programmable Keys
For enhanced convenience, you may request your dealer to program the
SK1 key as shortcut to certain feature. Please refer to the corresponding
Feature Book for feature details.

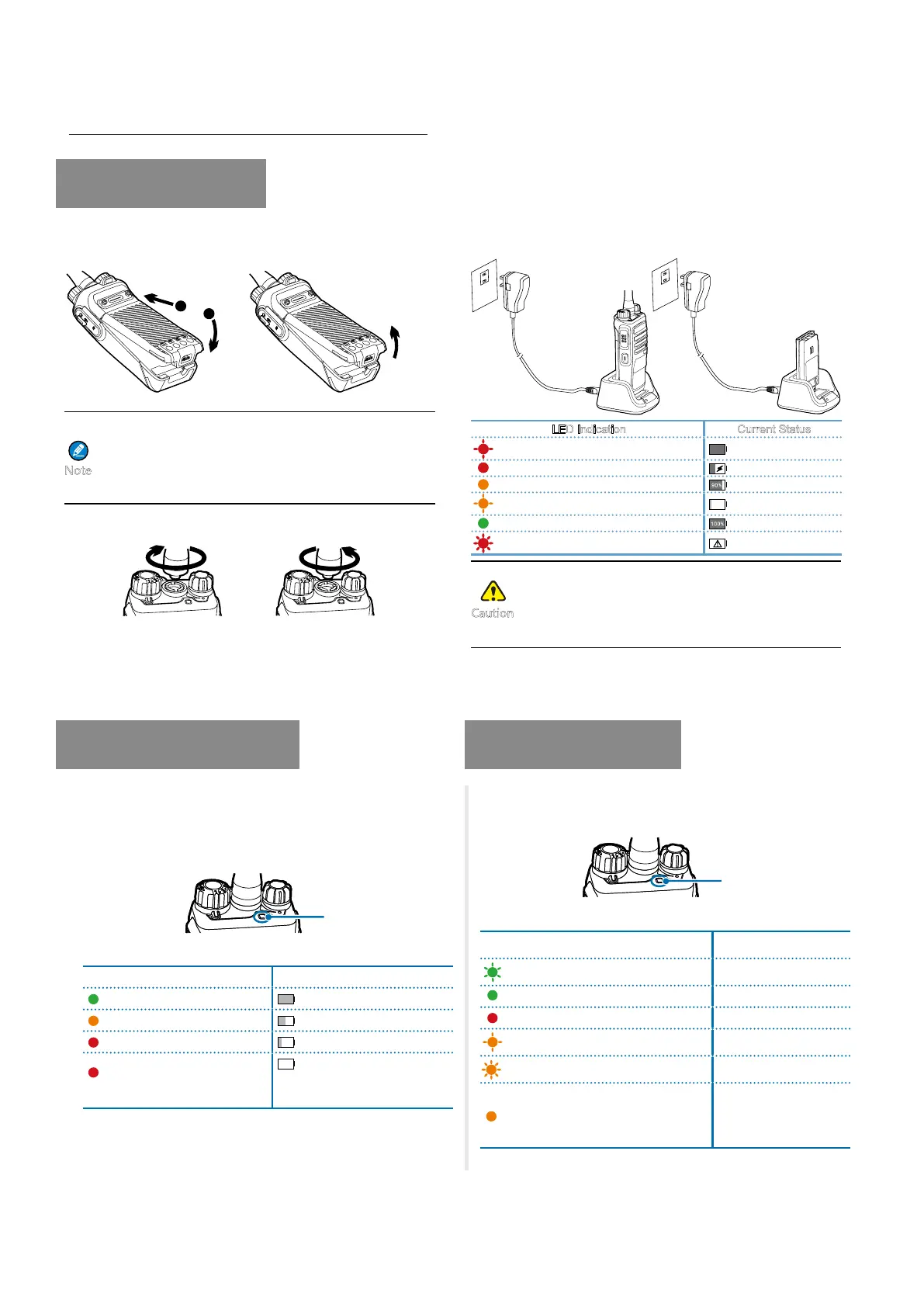

Before Use
Assembling the Radio
●
To remove the battery, please turn off the radio first. Then
slide the battery latch upwards to unlock the battery.
●
If not assembled with battery specified by Hytera, the radio
will give an alarm tone to remind you when powering on.
Afterwards, it will operate normally.
1. Assembling the Battery
Assemble Disassemble
2. Assembling the Antenna
“click ”
1
2
“click ”
Assemble Disassemble
Note
4
1
2
3
3. Assembling the Belt Clip
4. Assembling the Accessories
1
2
Remove the screws Assemble the Belt Clip
Before Use
Charging the Battery
Please use the charger specified by the Company, and follows the
charging steps as shown below.
LED Indication Current Status
The LED Indicator ashes red slowly
Standby (no load)
The LED Indicator glows red
Charging
The LED Indicator glows orange
90%
90% charged
The LED Indicator ashes orange slowly
Low current charging
The LED Indicator glows green
100%
Fully charged
The LED Indicator ashes red rapidly
Charging error
●
Make sure the radio is powered off before charging.
Read the Safety Information Booklet in advance to get
necessary safety information.
●
To achieve optimal battery performance, please charge
the battery for at least 5 hours before initial use.
Charging the Radio
Charging the Battery
Do not swing the radio when holding it by the antenna,
so as to avoid lowering the performance and shortening
the life span of the antenna.
Caution
Before Use
Checking the Battery Power
You may check the current battery power by holding the programmed
Battery Power Indicator key preset by your dealer. Release the key to
exit.
LED Indication Battery Power
The LED indicator glows green High
The LED indicator glows orange Medium
The LED indicator glows red Low
The LED indicator glows red
and low battery alert sounds
Under the low battery
threshold. Charge or replace the
battery for proper radio operation
LED Indicator
LED Indication Product Status
The LED indicator ashes green Powering on
The LED indicator glows green Receiving
The LED indicator glows red Transmitting
The LED indicator ashes orange slowly Scanning or roaming
The LED indicator ashes orange rapidly Emergency
The LED indicator glows orange
The call is established
successfully, and you can
hold down the PTT key to
talk
Status Indication
LED
LED
To Next Page
